Platinum Tools 105025 ezEX48 - ezEX-RJ45 CAT6A Connector - Pack of 500

Platinum Tools 105025 ezEX48 - ezEX-RJ45 CAT6A Connector - Pack of 500

by Platinum Tools
No reviews
$388.75 - $388.75
$388.75
$388.75 - $388.75
$388.75
Free shipping
Extended Handling May Be Required
The ezEX48 connectors feature a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This... Read more

Overview

Brand img

Platinum Tools 105025 ezEX48 - ezEX-RJ45 CAT6A Connector - Pack of 500

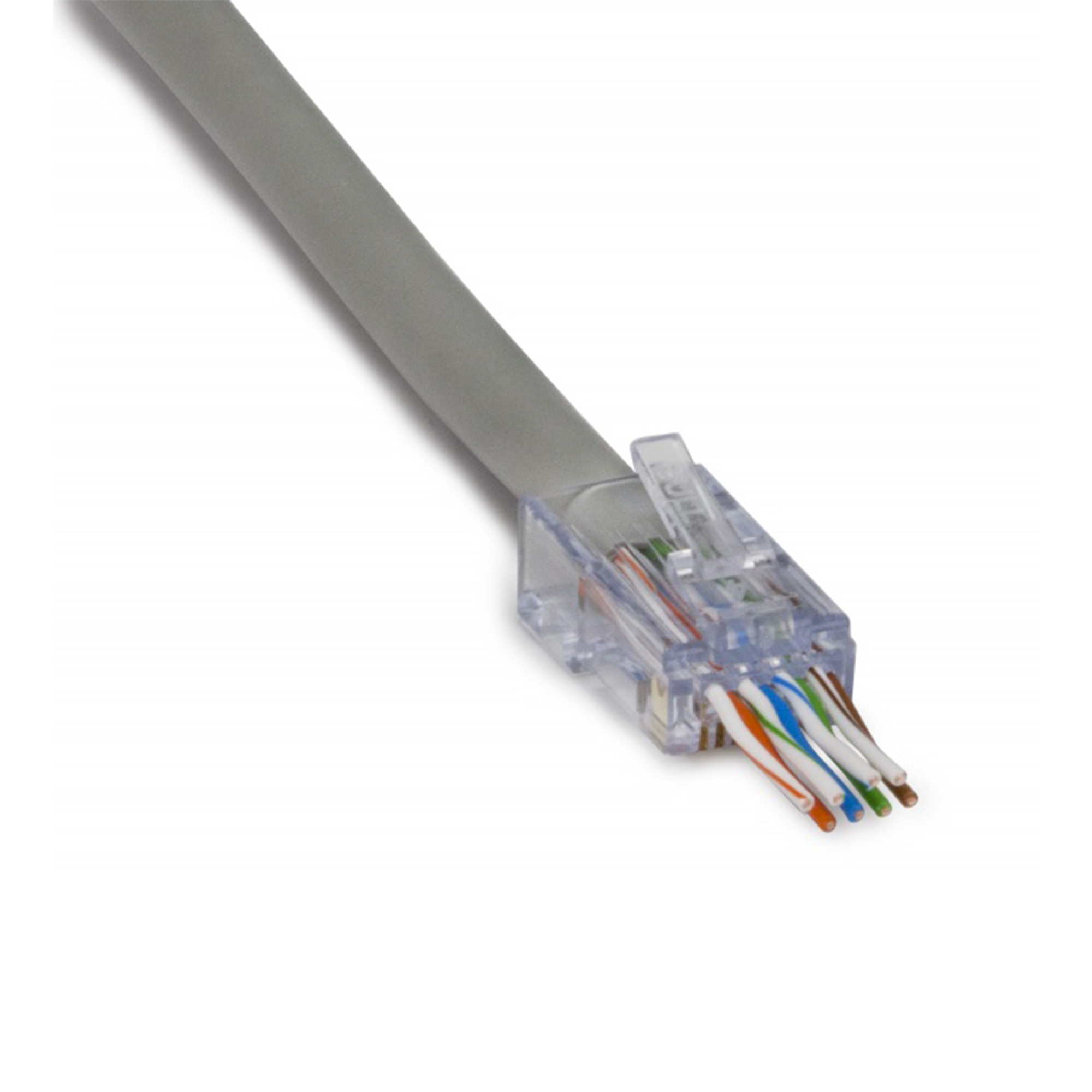

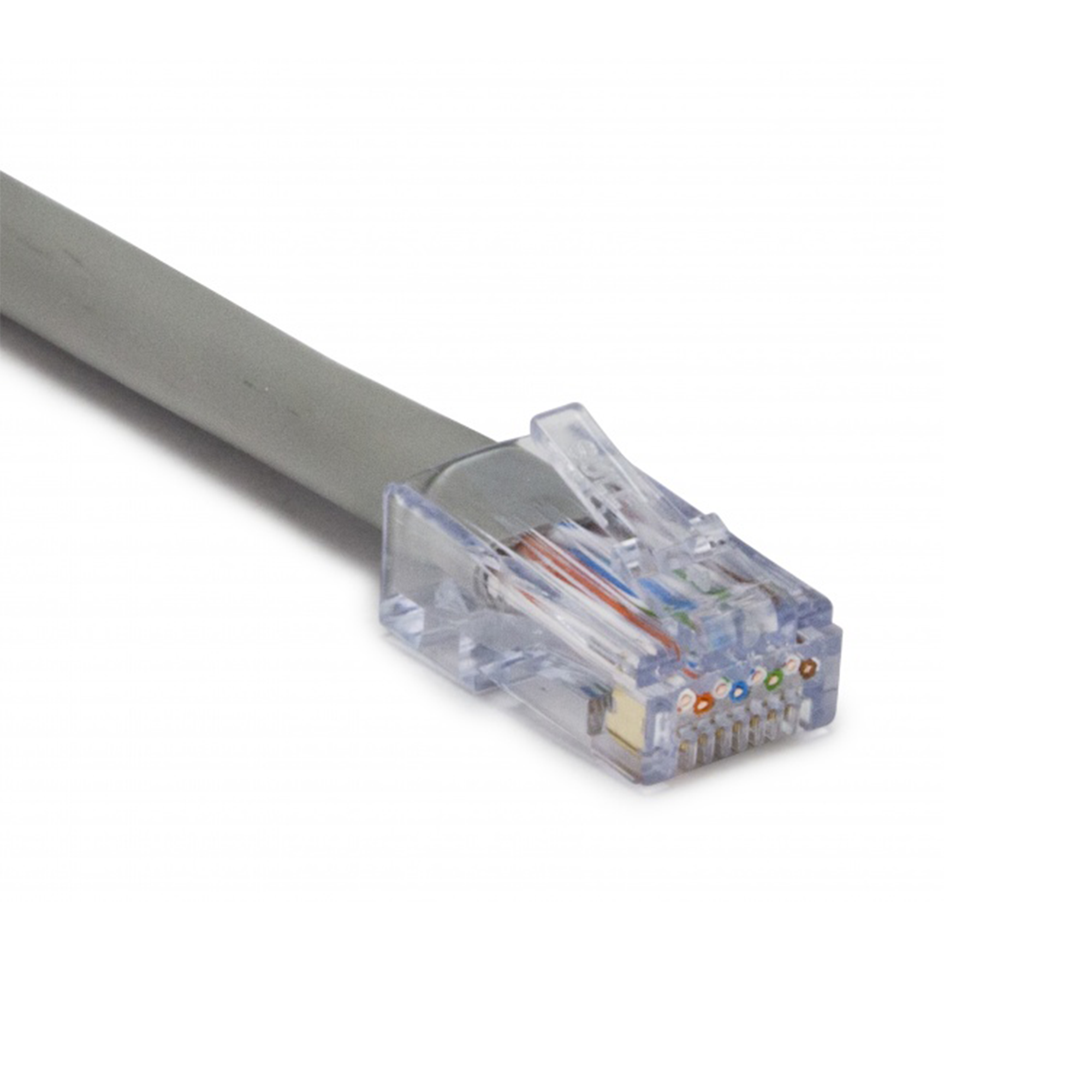

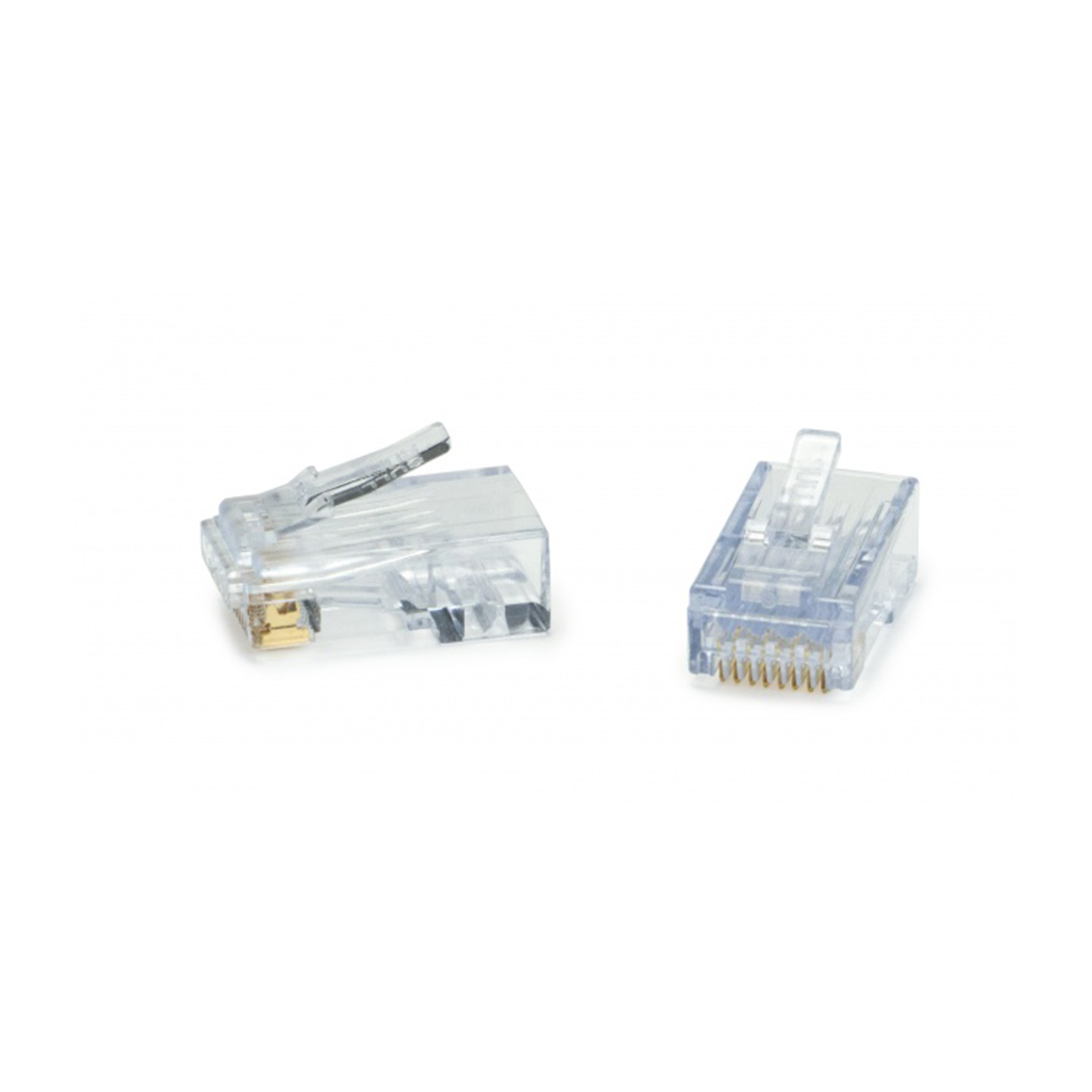

The ezEX48 connectors feature a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with Cat6A (Lg. Cat6) cabling and is recommended for PoE/PoE+ and Data applications. The termination tool for these connectors is the EXO Crimp Frame and EXO-EX Die (100061C).

Product Details

General Information
Manufacturer
Platinum Tools
Part Number
105025
Product Type
CAT6A Connector
California Residents
Proposition 65 Warning
Specifications
Color
Clear / Transparent
Material
50 micron gold plated contacts
Size
Solid or Stranded 23-22 AWG
Weight
1.64 pounds
Miscellaneous
Features
Hi-Lo stagger isolates each conductor for higher performance
Simple one piece/pass through design, no bars or liners
Insulation Diameter (Conductor) Size range: .043” – .048” (1.09 –1.22mm)
Max outer diameter: .290” (7.36mm)
TIA, TAA, RoHS, UL & FCC compliant
Typically used with Cat6A & Lg Cat6
Country of Origin
USA

Product Video

Introduction: ezEX-RJ45™ Termination System
