Platinum Tools 105027 ezEX44 -Shielded CAT6 Connector, Internal Ground - Pack of 100

Platinum Tools 105027 ezEX44 -Shielded CAT6 Connector, Internal Ground - Pack of 100

by Platinum Tools
No reviews
$185.71 - $185.71
$185.71
$185.71 - $185.71
$185.71
Free shipping
Extended Handling May Be Required
This shielded ezEX-RJ45 connector is designed for larger cables and conductors. Features a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector making it easy... Read more

Overview

Brand img

Platinum Tools 105027 ezEX44 -Shielded CAT6 Connector, Internal Ground - Pack of 100

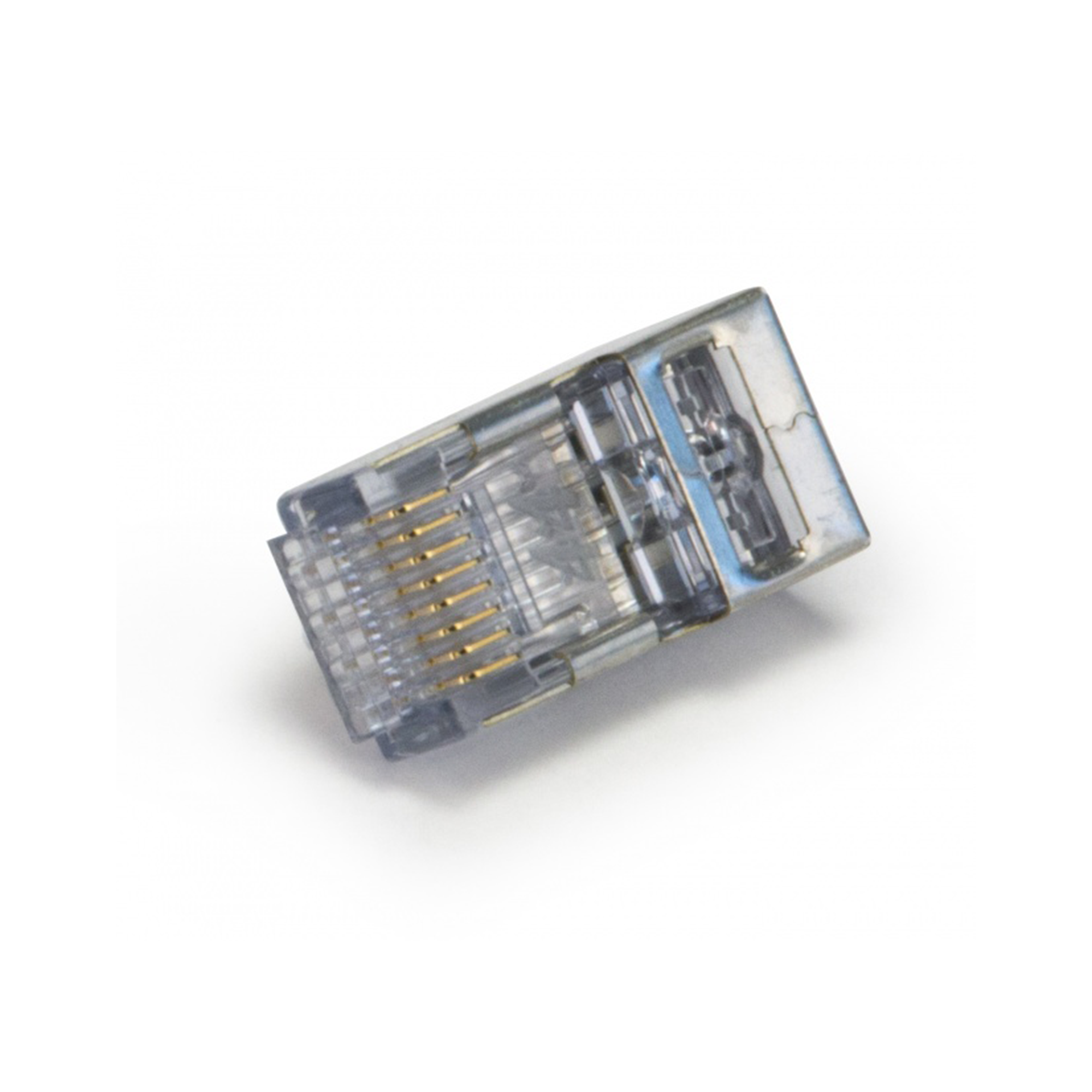

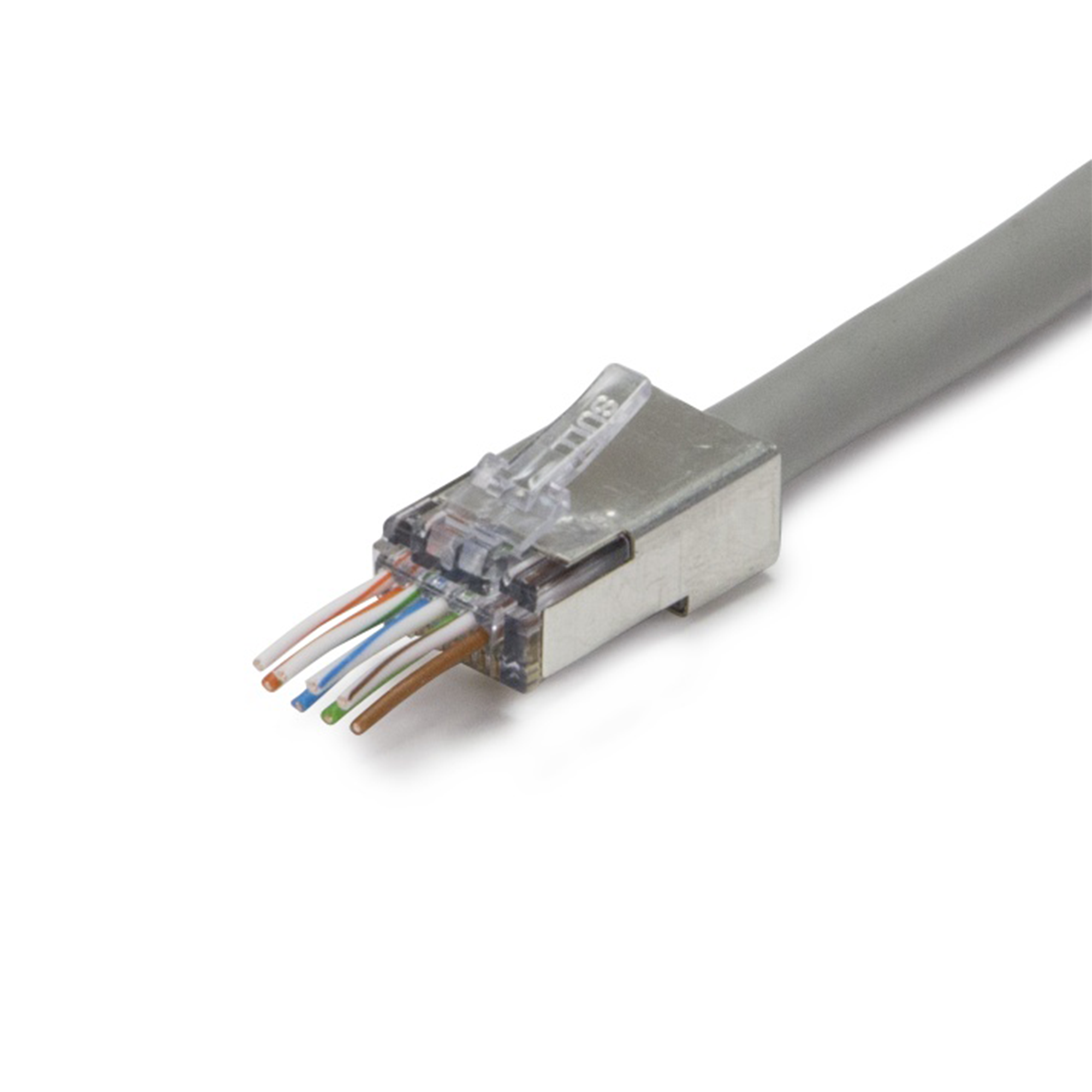

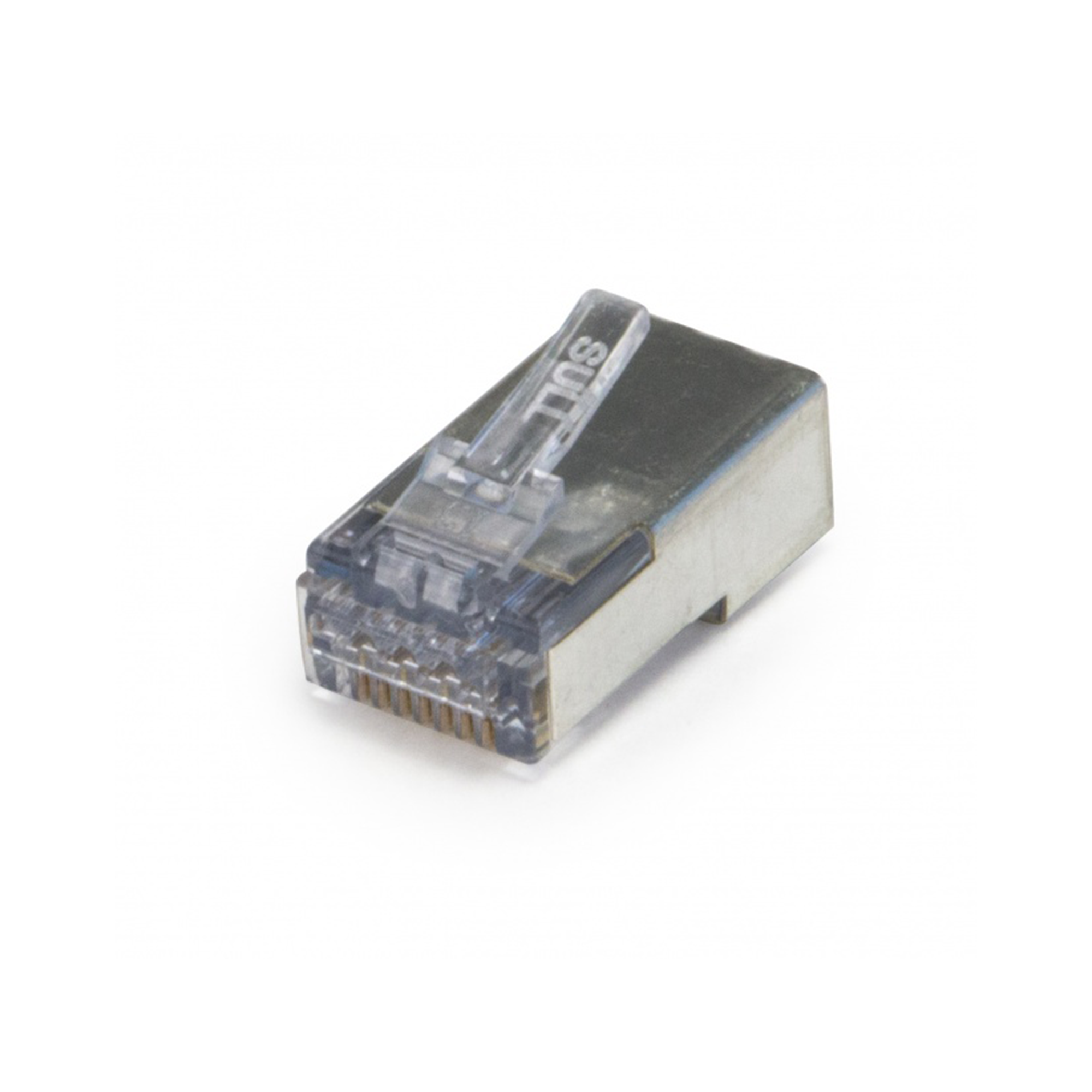

This shielded ezEX-RJ45 connector is designed for larger cables and conductors. Features a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with CAT6 and is terminated with EXO Crimp Frame® and EXO-EX Die™ (100061C).

Product Details

General Information
Manufacturer
Platinum Tools
Part Number
105027
Product Type
Shielded CAT6 Connector
California Residents
Proposition 65 Warning
Specifications
Color
Clear / Silver
Material
50 micron gold plated contacts
Size
Solid or Stranded 24-22 AWG
Weight
10 oz
Miscellaneous
Features
Hi-Lo stagger to isolate each conductor
Simple one piece/pass through design, no bars or liners
Shielded 5e/6/6A compliant
Insulation Diameter (Conductor) - Size range: 0.039” – 0.044” (1.0 –1.12mm)
Max Outer Diameter: 0.280” (7.1mm)
TAA, TIA, RoHS, UL & FCC compliant
Country of Origin
USA

Product Video

How To: Terminate Shielded ezEX-RJ45 Connectors
