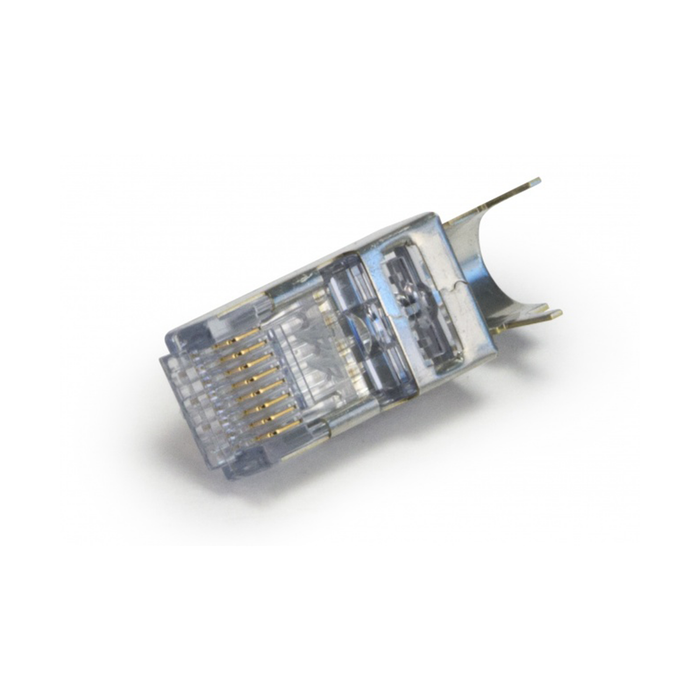

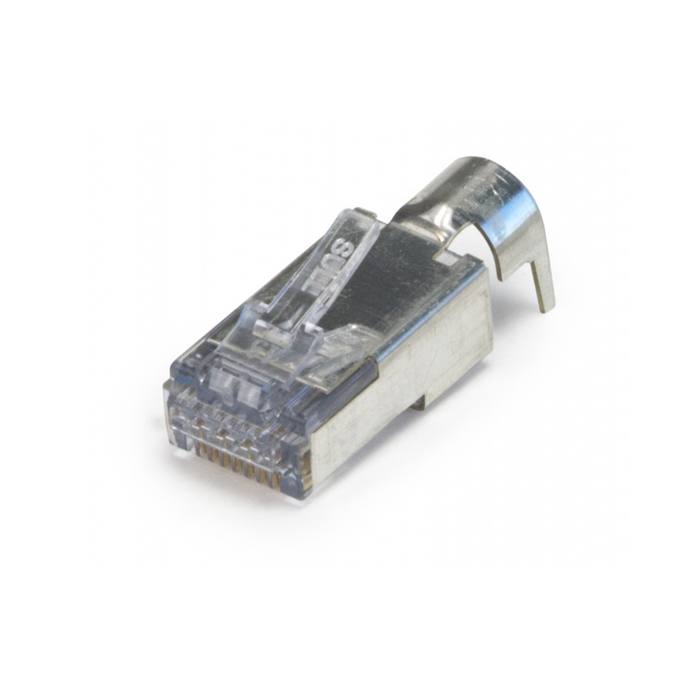

Platinum Tools 105028 ezEX44 -Shielded CAT6 Connector, External Ground - Pack of 100

by Platinum Tools

No reviews

$193.09 - $193.09

$193.09

$193.09 - $193.09

$193.09

This shielded ezEX-RJ45 connector is designed for larger cables and conductors. Features a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector making it easy... Read more

Overview

Platinum Tools 105028 ezEX44 -Shielded CAT6 Connector, External Ground - Pack of 100

Category Wired Accessories
BrandPlatinum Tools
Part # 105028

Features

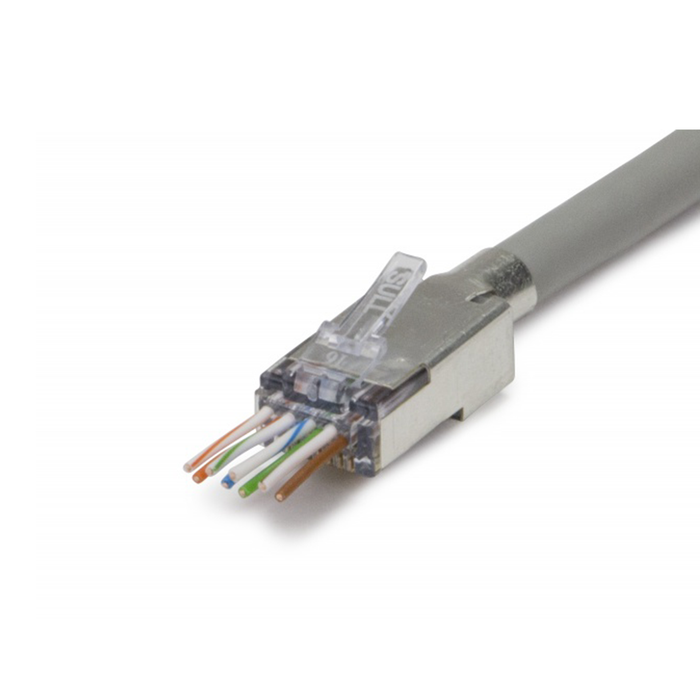

This shielded ezEX-RJ45 connector is designed for larger cables and conductors. Features a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with CAT6 and is terminated with EXO Crimp Frame® and EXO-EX Die™ (100061C).

Product Details

General Information

Manufacturer

Platinum Tools

Part Number

105028

Product Type

Shielded CAT6 Connector

California Residents

Proposition 65 Warning

Specifications

Color

Clear / Silver

Material

50 micron gold plated contacts

Size

Solid or Stranded 24-22 AWG

Weight

12 oz

Miscellaneous

Features

Hi-Lo stagger to isolate each conductor
Simple one piece/pass through design, no bars or liners
Shielded 5e/6/6A compliant
Insulation Diameter (Conductor) - Size range: 0.039” – 0.044” (1.0 –1.12mm)
Max Outer Diameter: 0.305” (7.75mm)
TAA, TIA, RoHS, UL & FCC compliant

Country of Origin

USA

Product Video

How To: Terminate Shielded ezEX-RJ45 Connectors
