Platinum Tools 202052J ezEX48 -Shielded CAT6A Connector, External Ground - Pack of 50

Platinum Tools 202052J ezEX48 -Shielded CAT6A Connector, External Ground - Pack of 50

by Platinum Tools
No reviews
$124.51 - $124.51
$124.51
$124.51 - $124.51
$124.51
Free shipping
Extended Handling May Be Required
This shielded ezEX-RJ45 connector is designed for larger cables and conductors. Features a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector making it easy... Read more

Overview

Brand img

Platinum Tools 202052J ezEX48 -Shielded CAT6A Connector, External Ground - Pack of 50

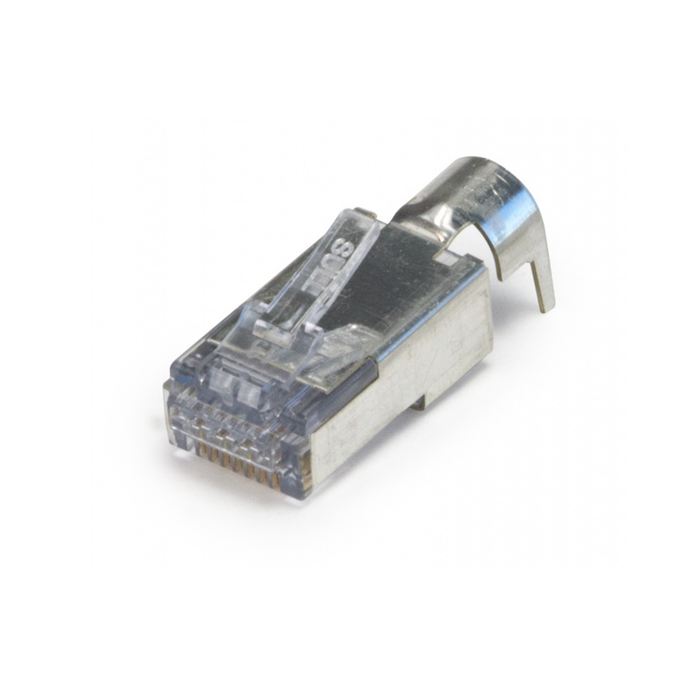

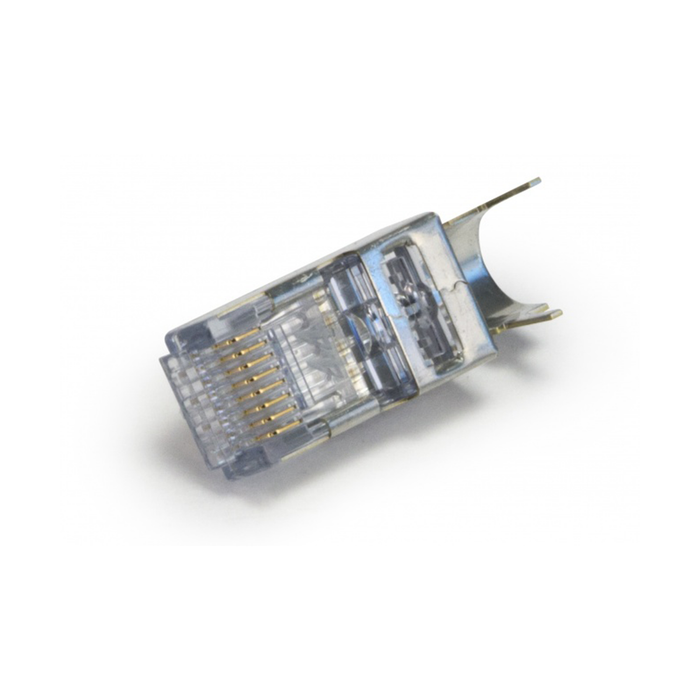

This shielded ezEX-RJ45 connector is designed for larger cables and conductors. Features a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with Cat6A and is terminated with EXO Crimp Frame® and EXO-EX Die™ (100061C).

Product Details

General Information
Manufacturer
Platinum Tools
Part Number
202052J
Product Type
Shielded CAT6A Connector
California Residents
Proposition 65 Warning
Specifications
Color
Clear / Silver
Material
50 micron gold plated contacts
Size
Solid or Stranded 23-22 AWG
Weight
8 oz
Miscellaneous
Features
Hi-Lo stagger to isolate each conductor
Simple one piece/pass through design, no bars or liners
Shielded 6/6A compliant
Insulation Diameter (Conductor) - Size range: 0.043” – 0.048” (1.09 –1.22mm)
Max Outer Diameter: 0.305” (7.75mm)
TAA, TIA, RoHS, UL & FCC compliant
Country of Origin
USA

Product Video

How To: Terminate Shielded ezEX-RJ45 Connectors
