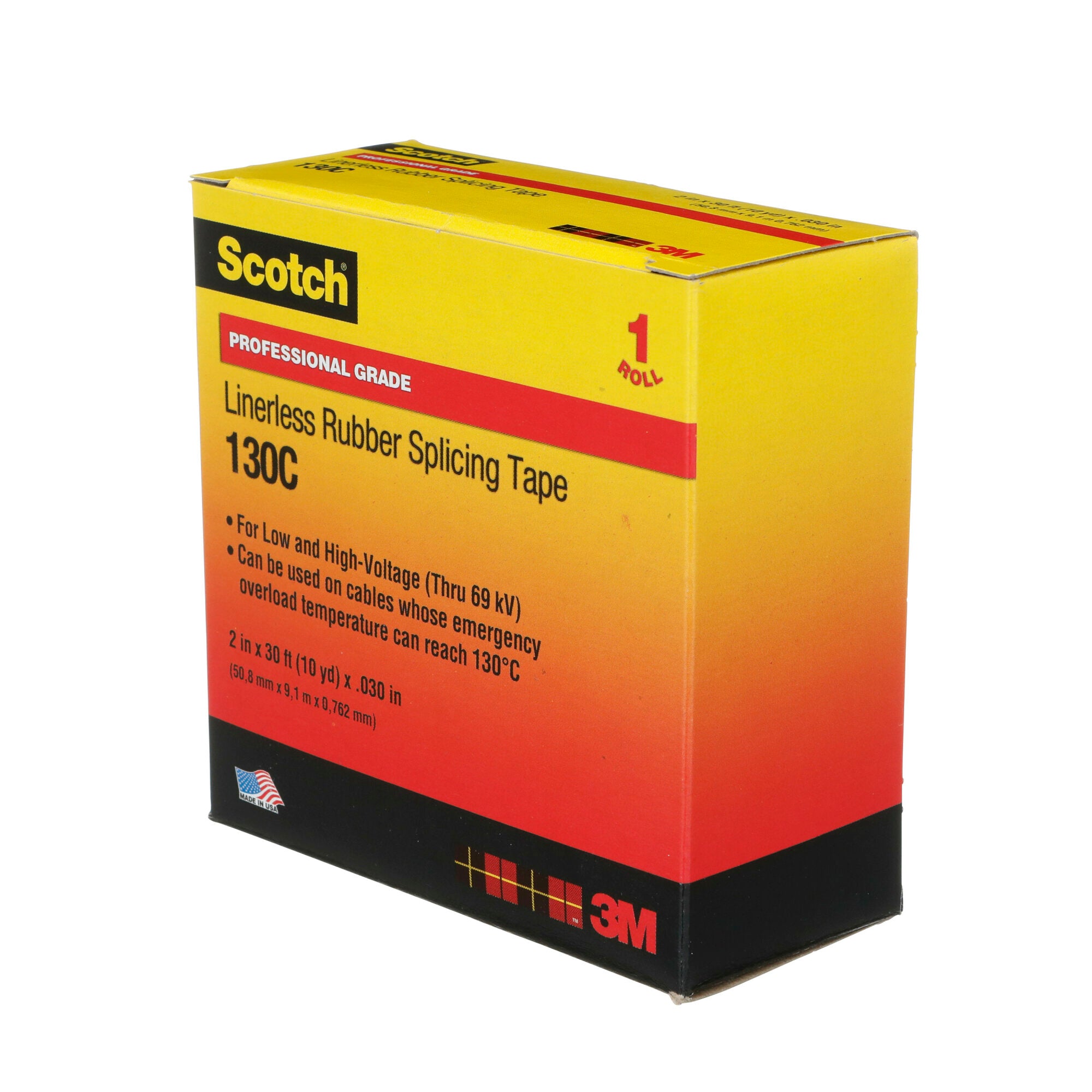

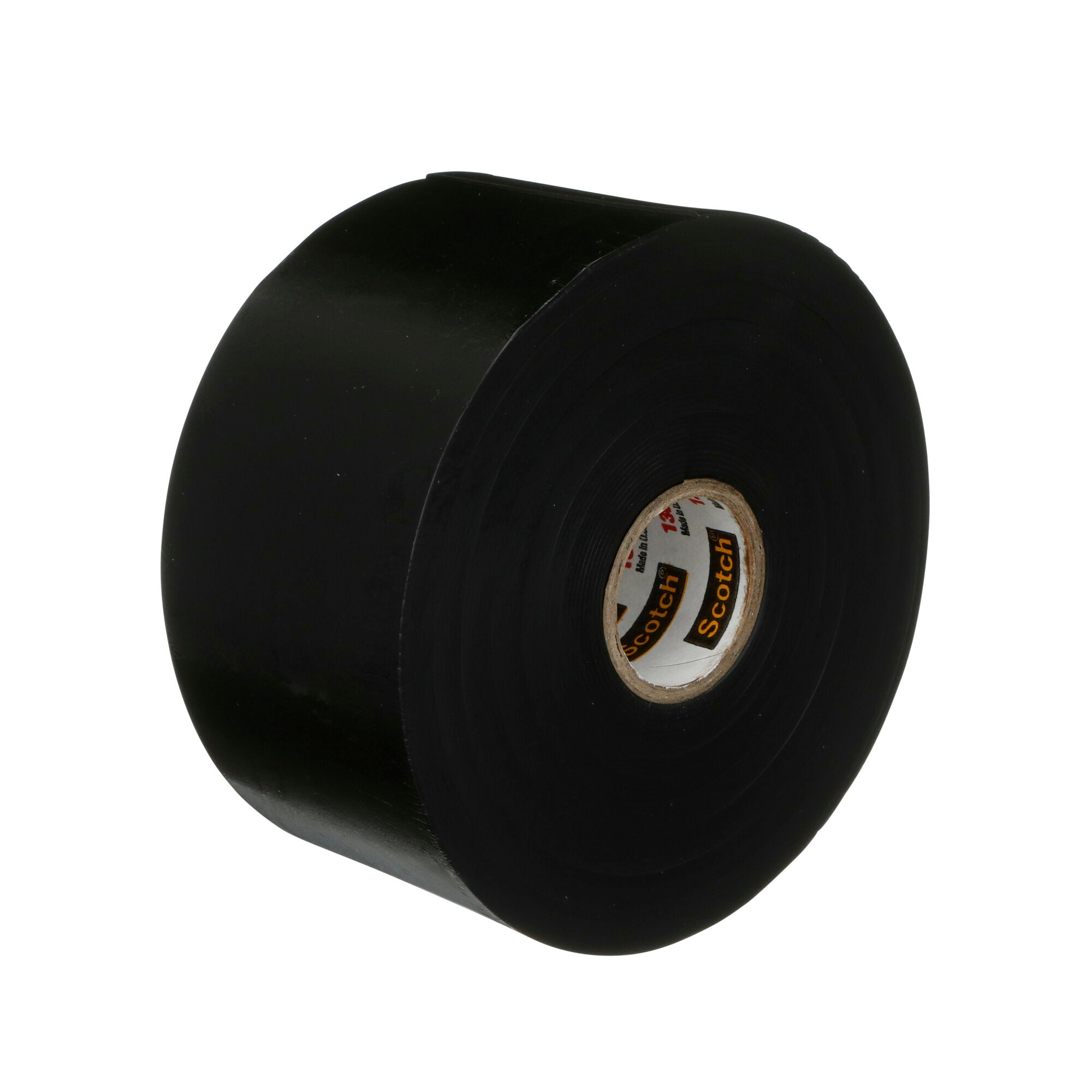

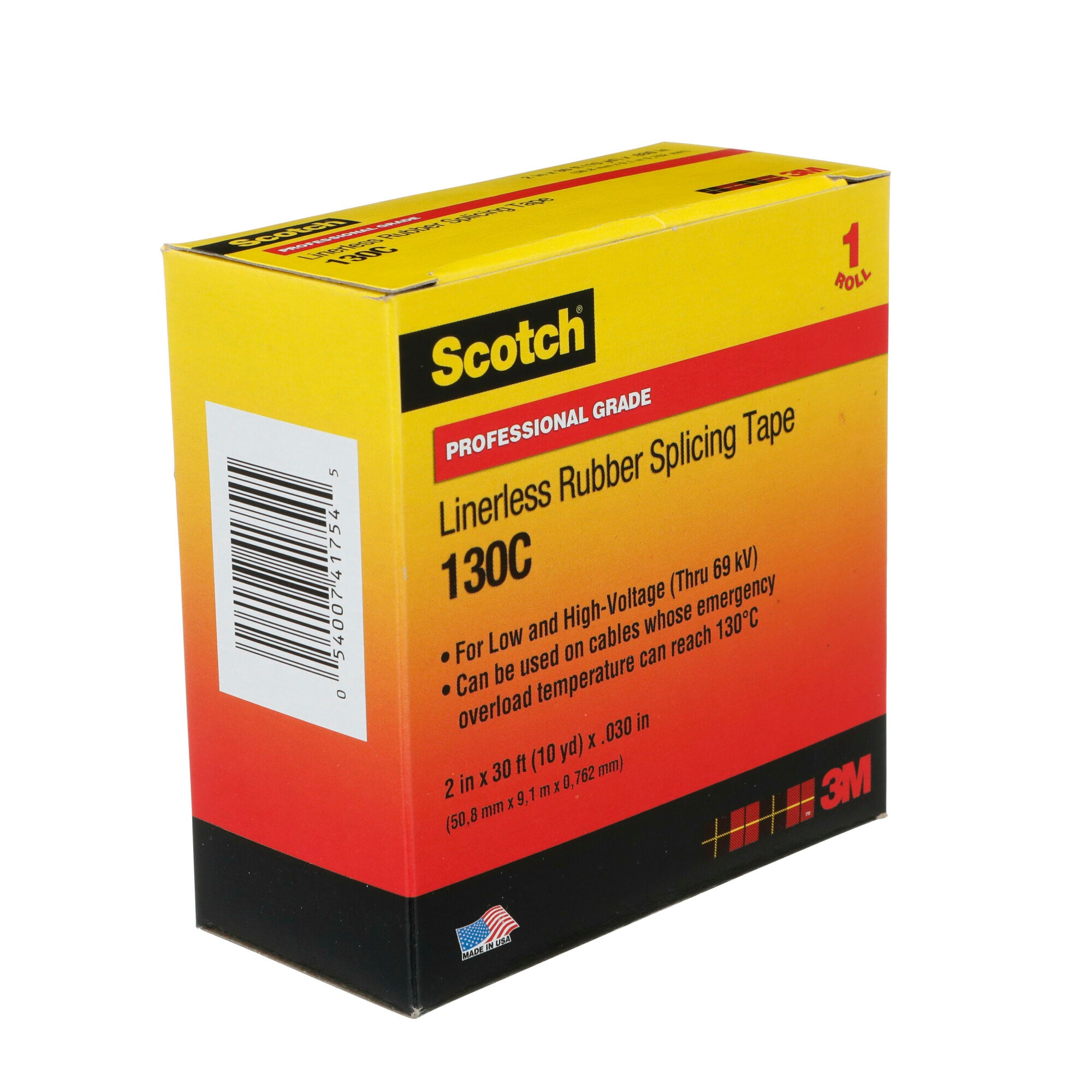

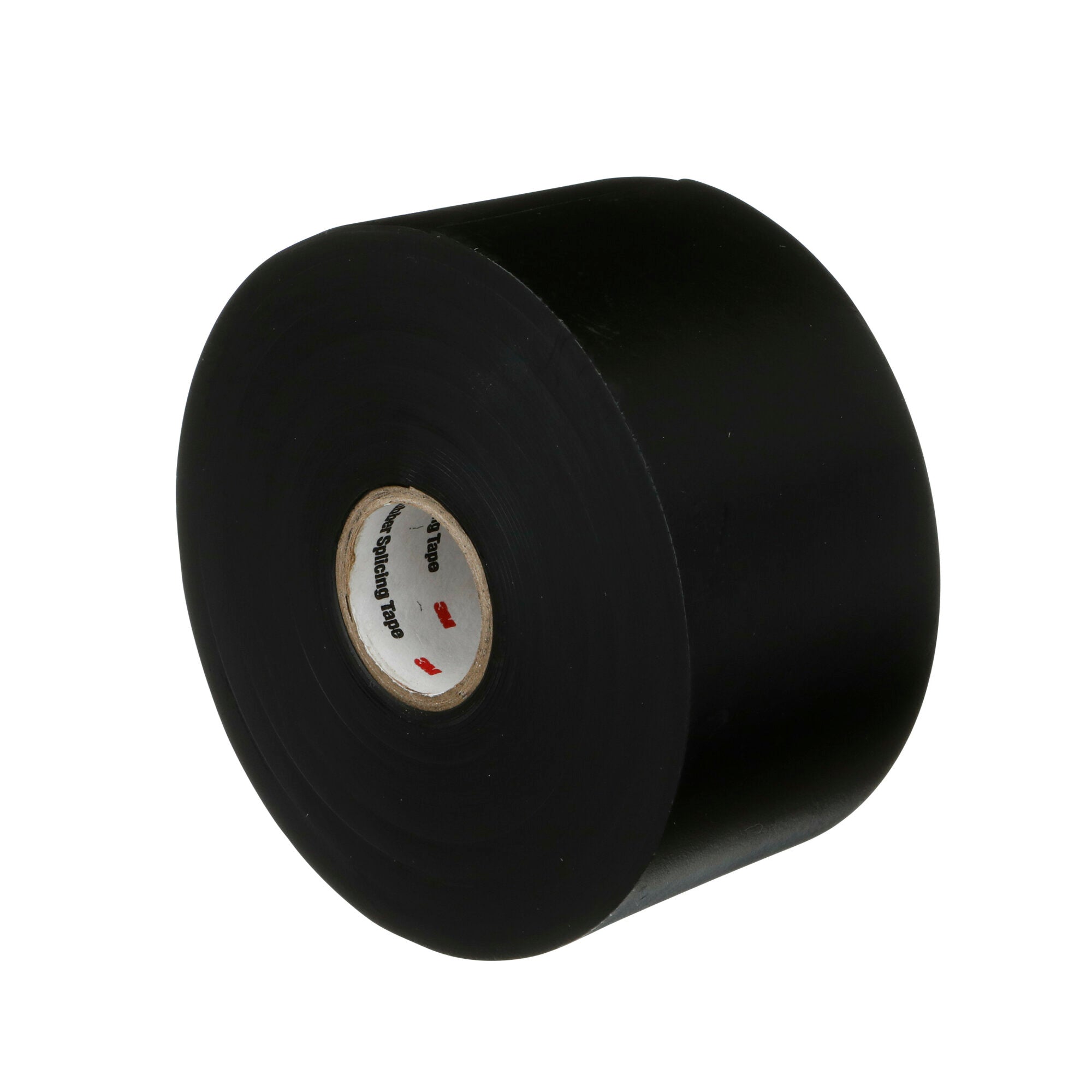

Scotch® Linerless Rubber Splicing Tape 130C, 2 in x 30 ft, Black

by 3M
No reviews
Original price $69.99 - Original price $69.99
Original price
$69.99
$69.99 - $69.99
Current price $69.99
Free shipping
Scotch Tape 130C is a linerless 30 mil thick, premium grade, rubber splicing tape used for splicing and terminating cables and wires. It withstands temperatures up to 194 F (90 C) with emergency overload up... Read more

Overview

3M

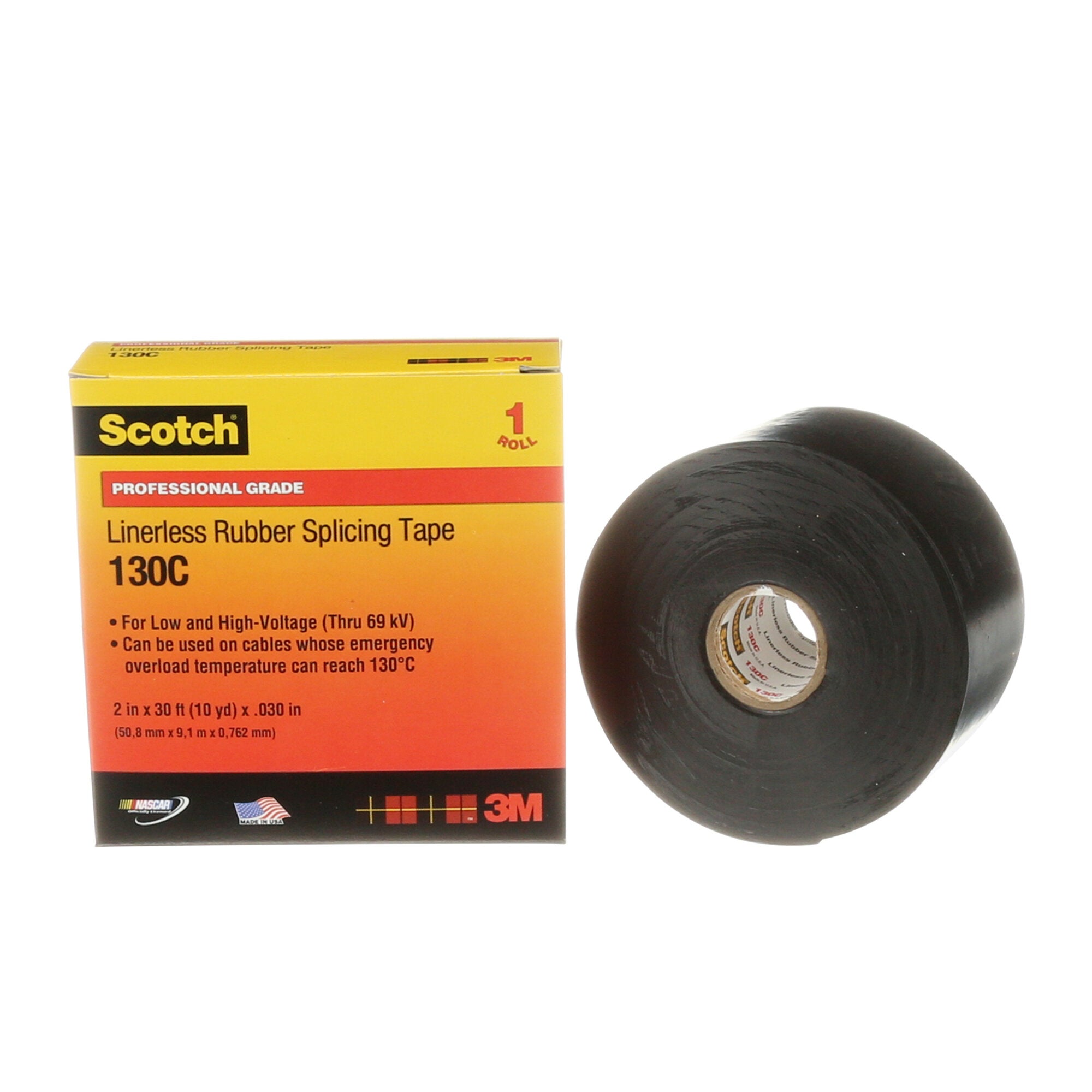

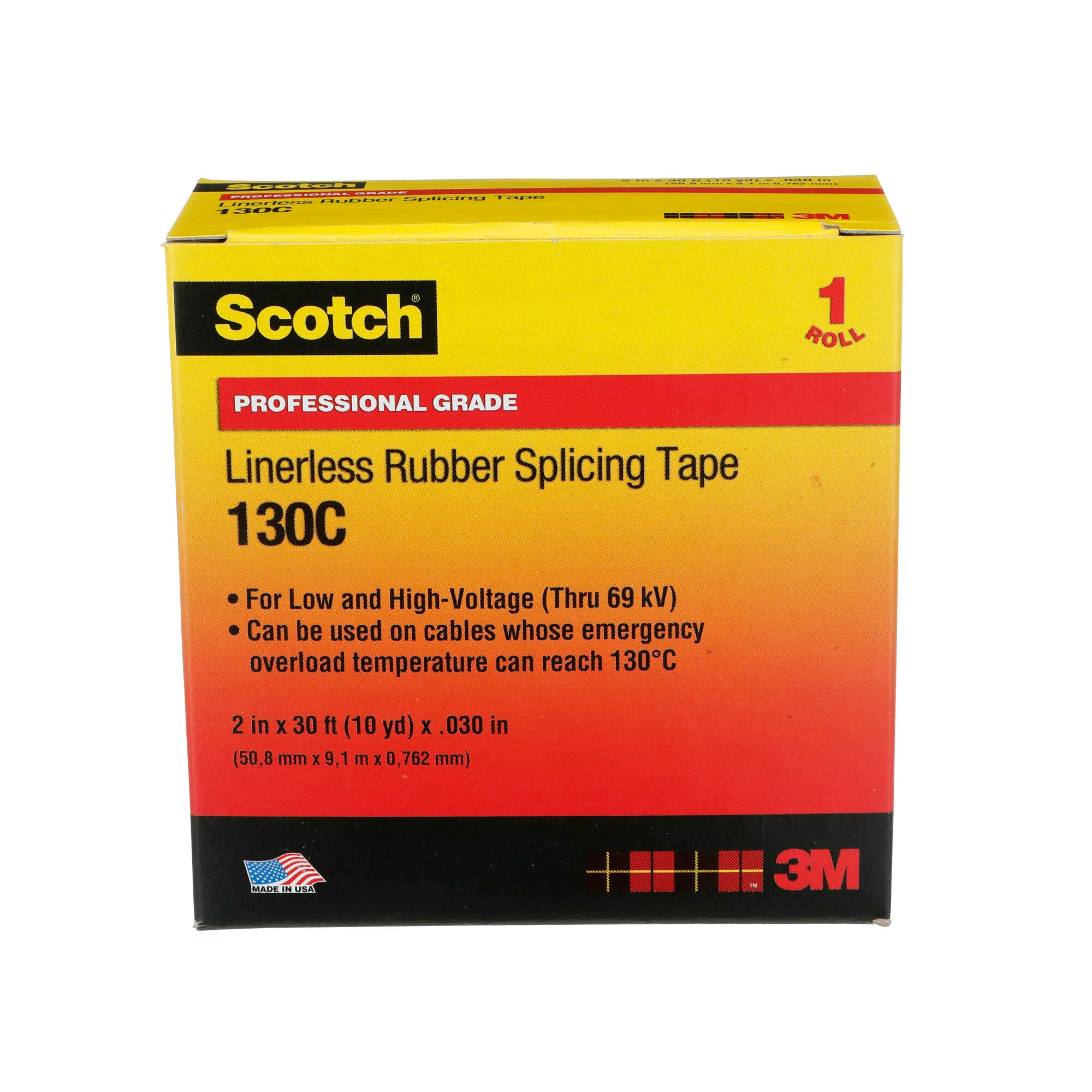

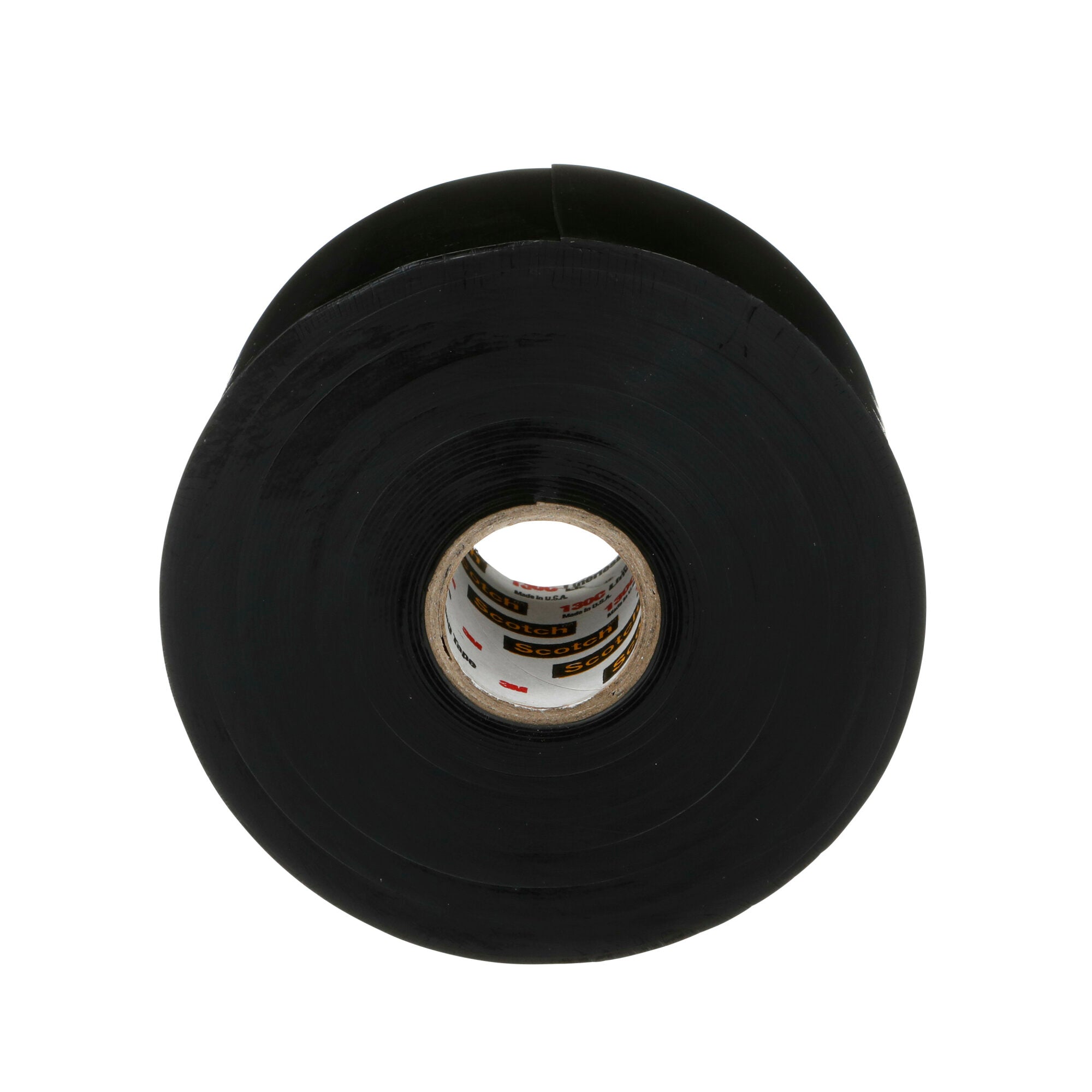

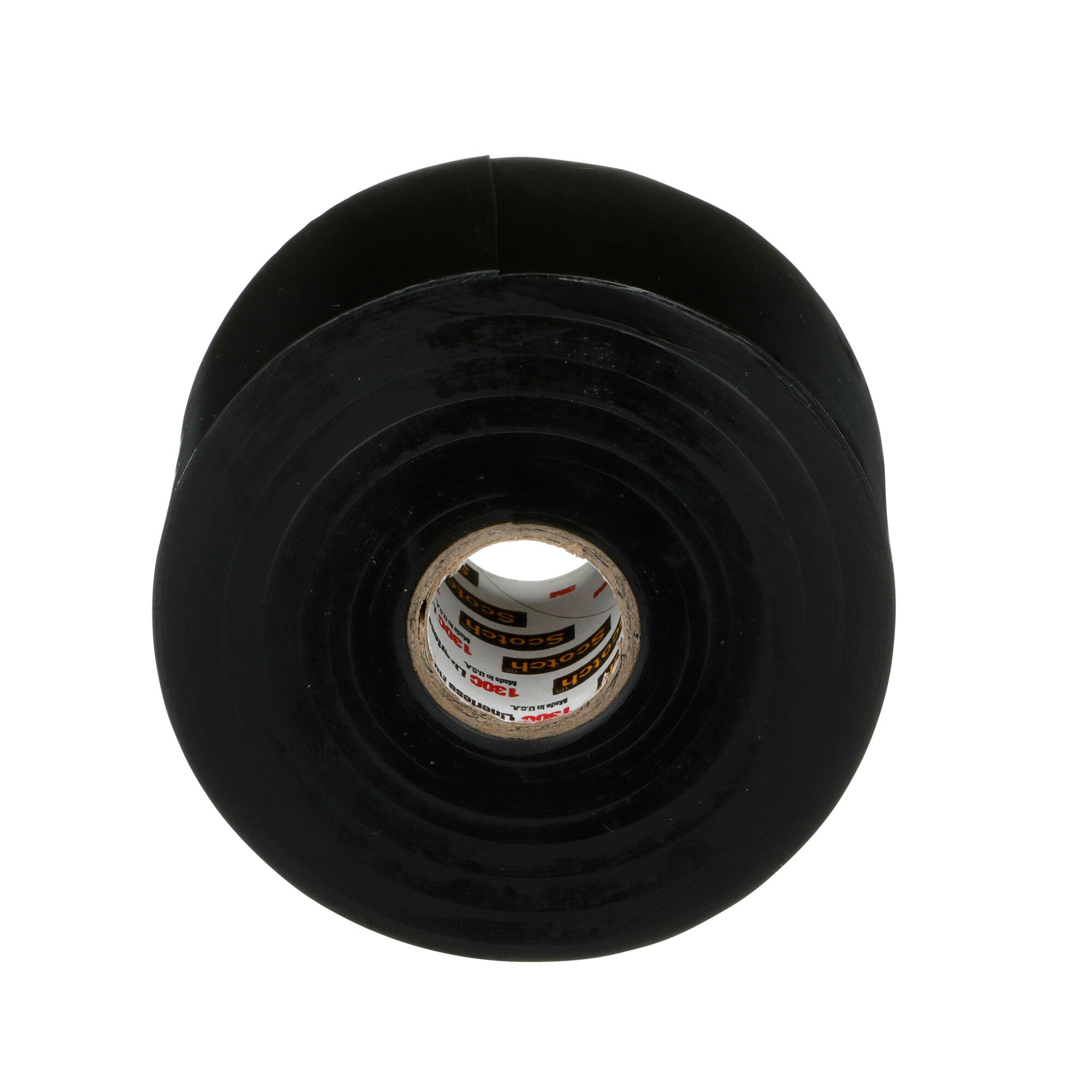

Scotch® Linerless Rubber Splicing Tape 130C, 2 in x 30 ft, Black

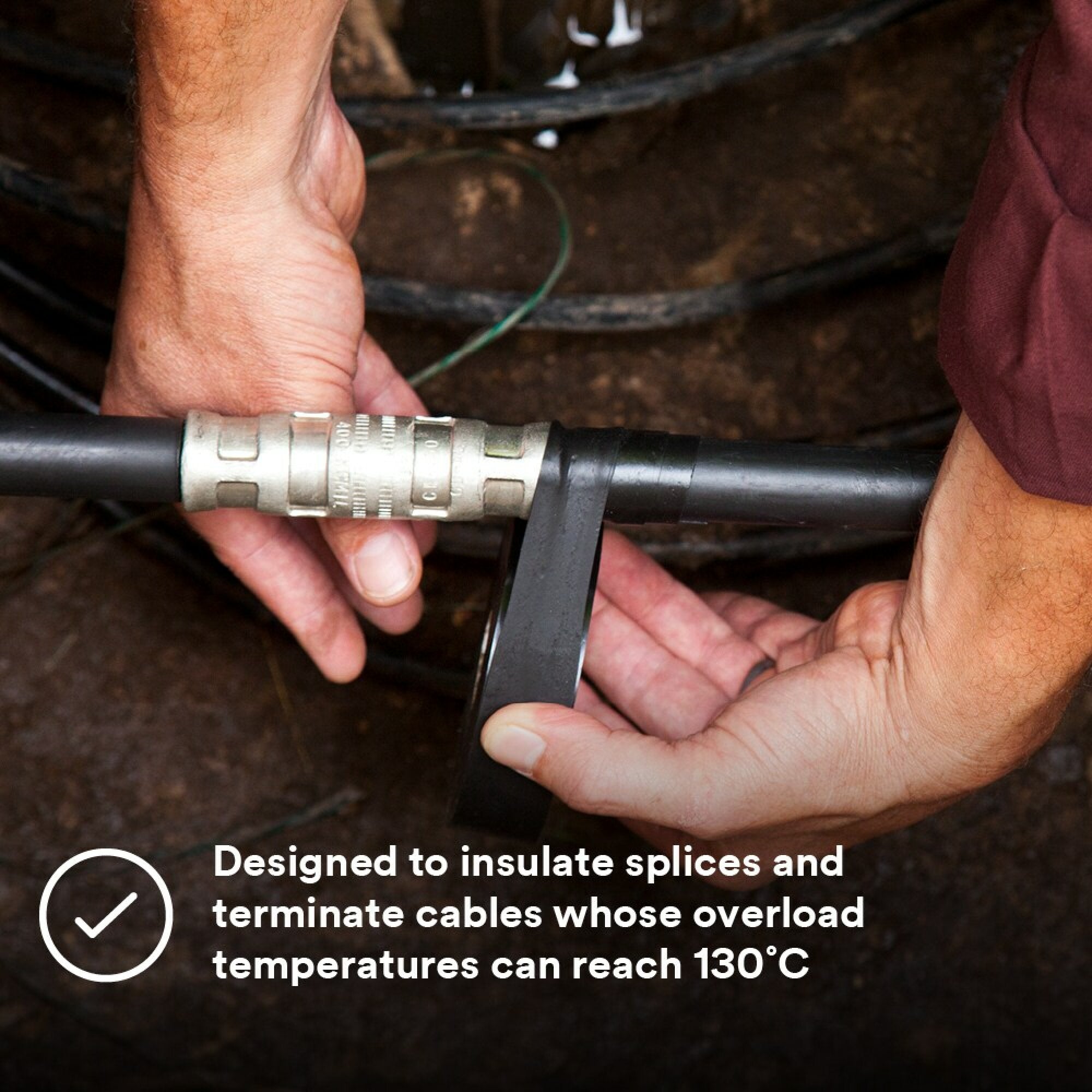

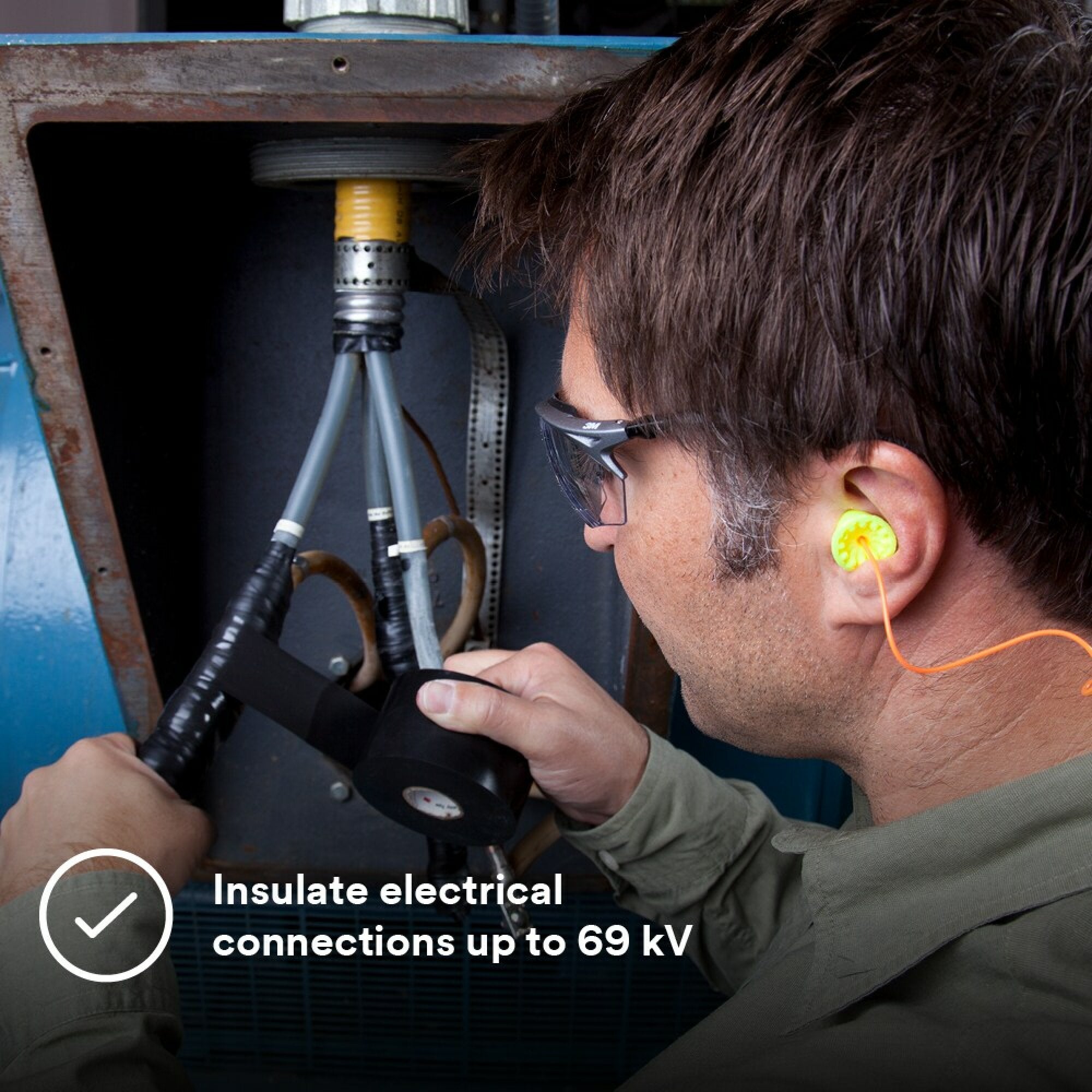

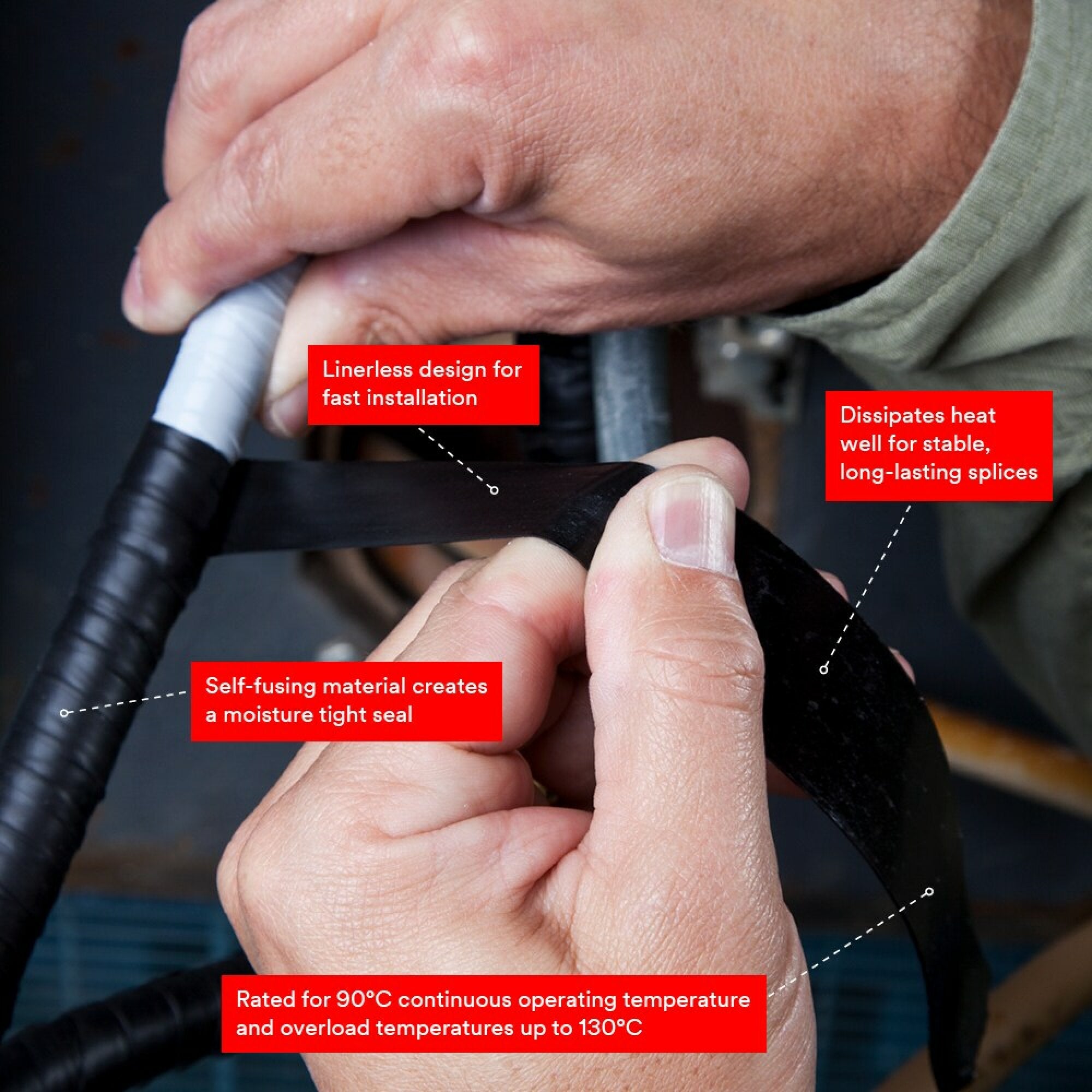

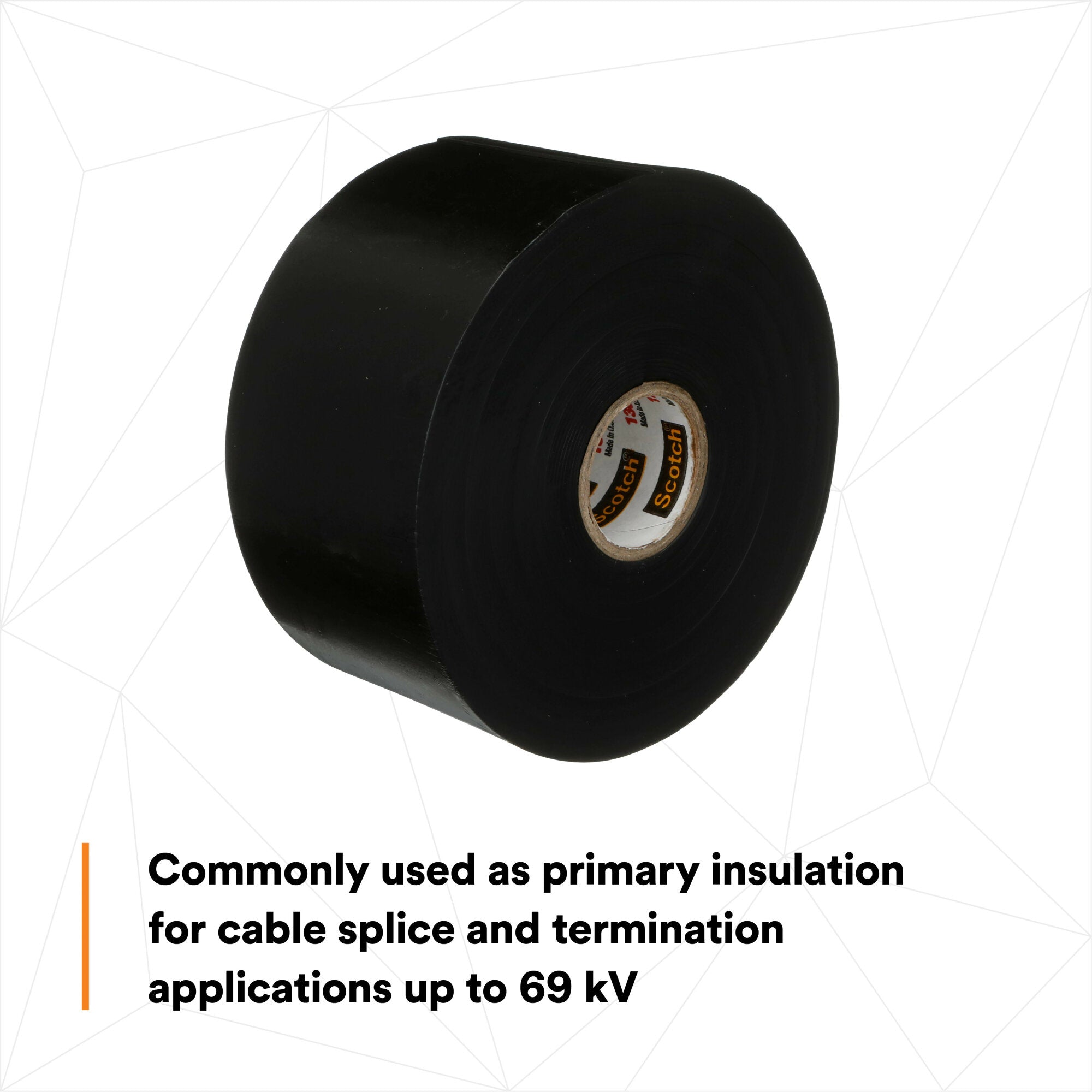

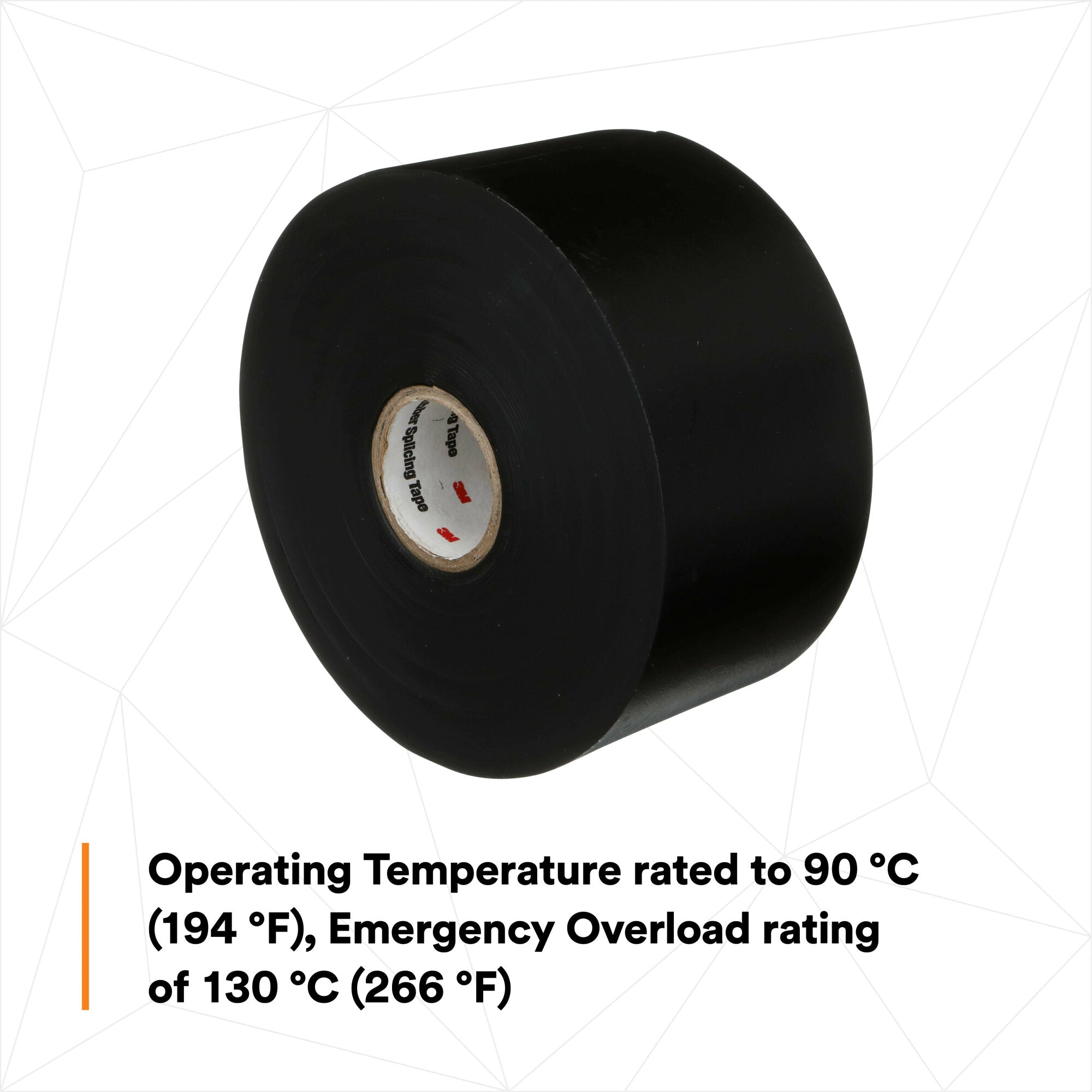

Scotch Tape 130C is a linerless 30 mil thick, premium grade, rubber splicing tape used for splicing and terminating cables and wires. It withstands temperatures up to 194 F (90 C) with emergency overload up to 266 F (130 C). The tape has excellent electrical and mechanical properties to provide moisture seal protection.Scotch® Tape 130C is a highly conformable tape that provides electrical and mechanical protection with the combination of an aggressive rubber resin adhesive and a self fusing, ethylene propylene backing. The tape provides primary insulation for solid, dielectric insulated cables rated through 69 kV. This tape is designed for low and high voltage, bus bar insulation, end sealing of cables and jacket repair applications. It has outstanding mechanical and electrical properties that offer moisture seal and void free buildups. ASTM Approved and RoHS 2011/65/EU Compliant.

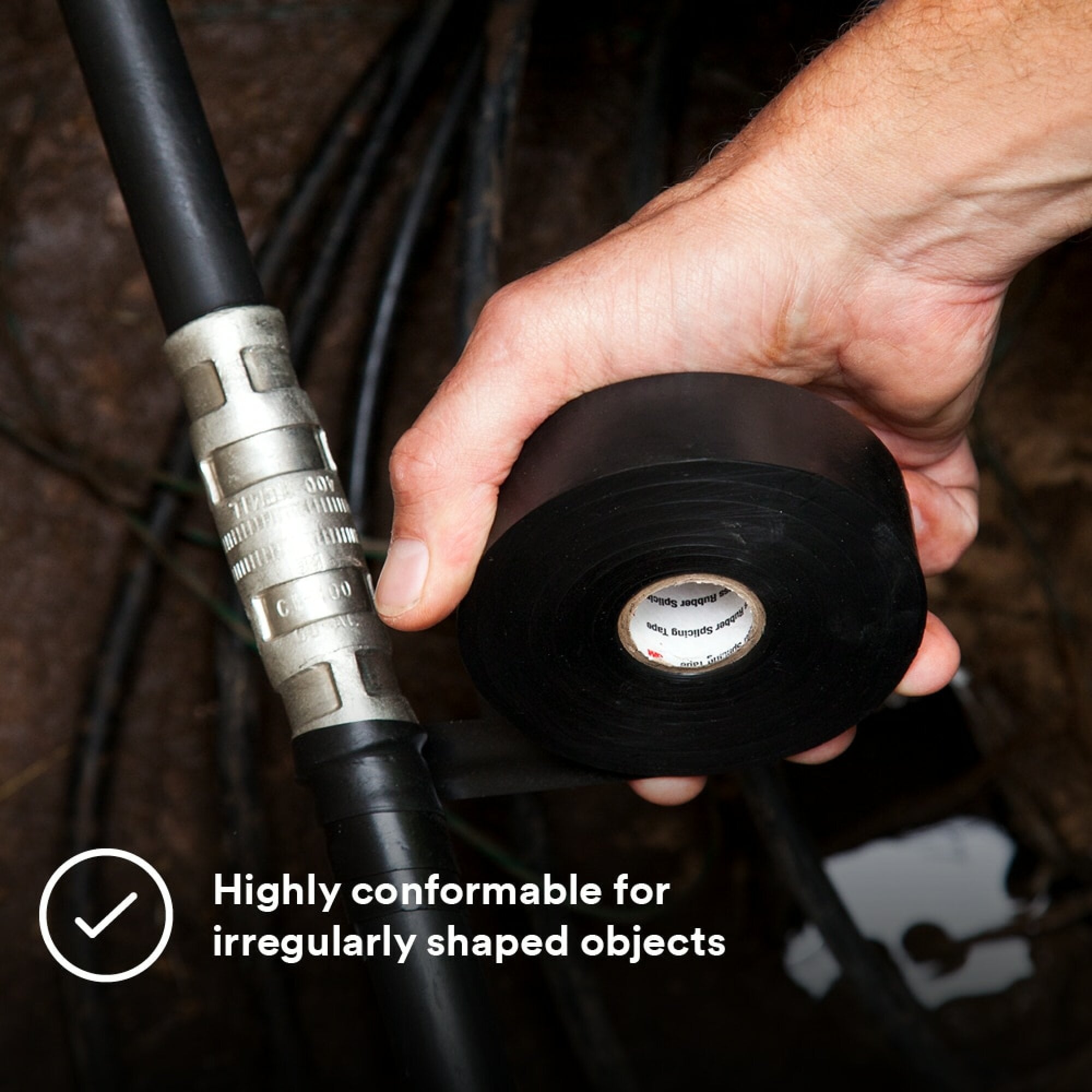

  • Highly conformable, rubber-resin adhesive and the self-fusing, ethylene propylene, rubber backing provides UV resistance
  • Provides an excellent thermal dissipation of splice heat

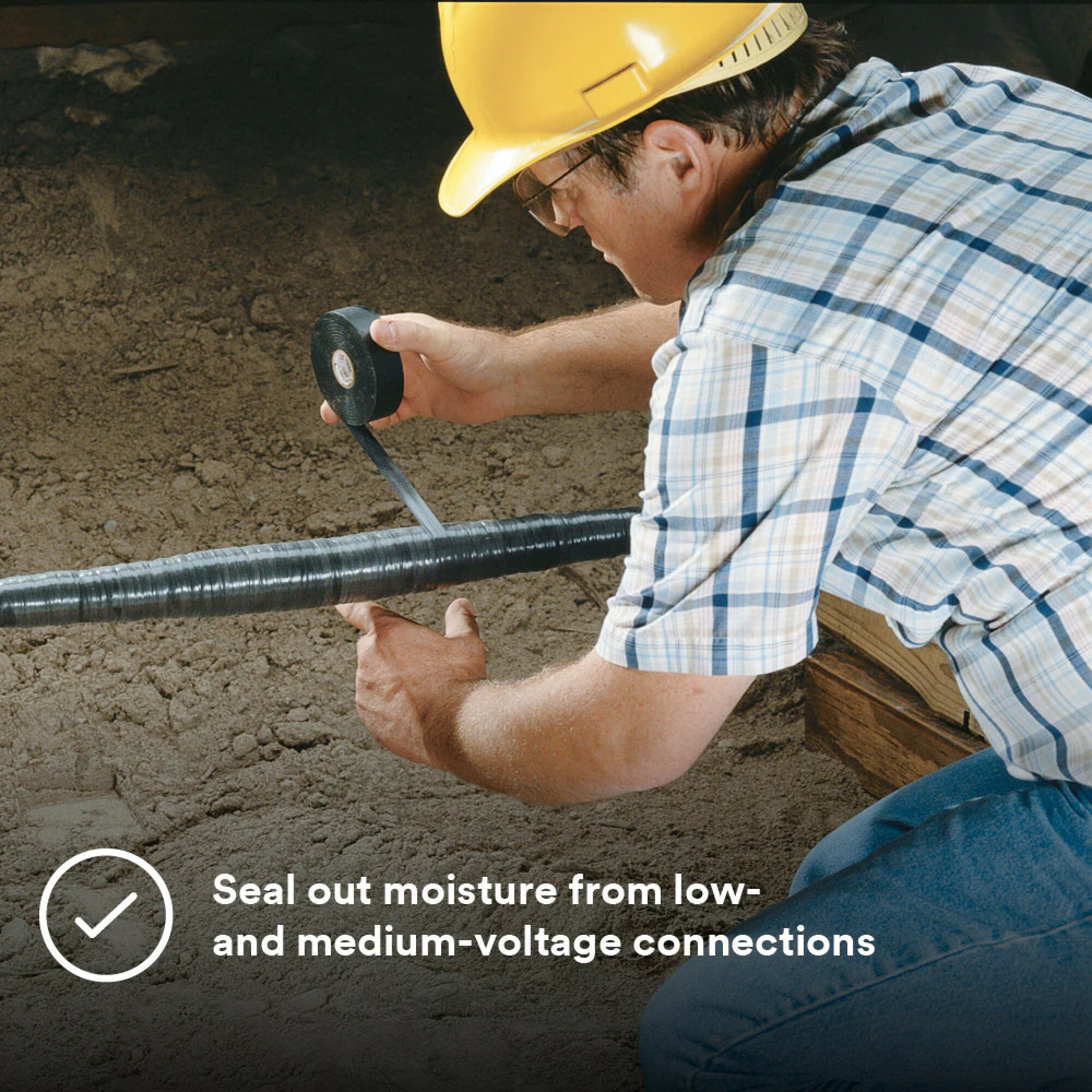

  • Excellent electrical and mechanical properties offer a moisture seal and void-free buildups
  • Withstands temperatures up to 194 °F (90 °C)

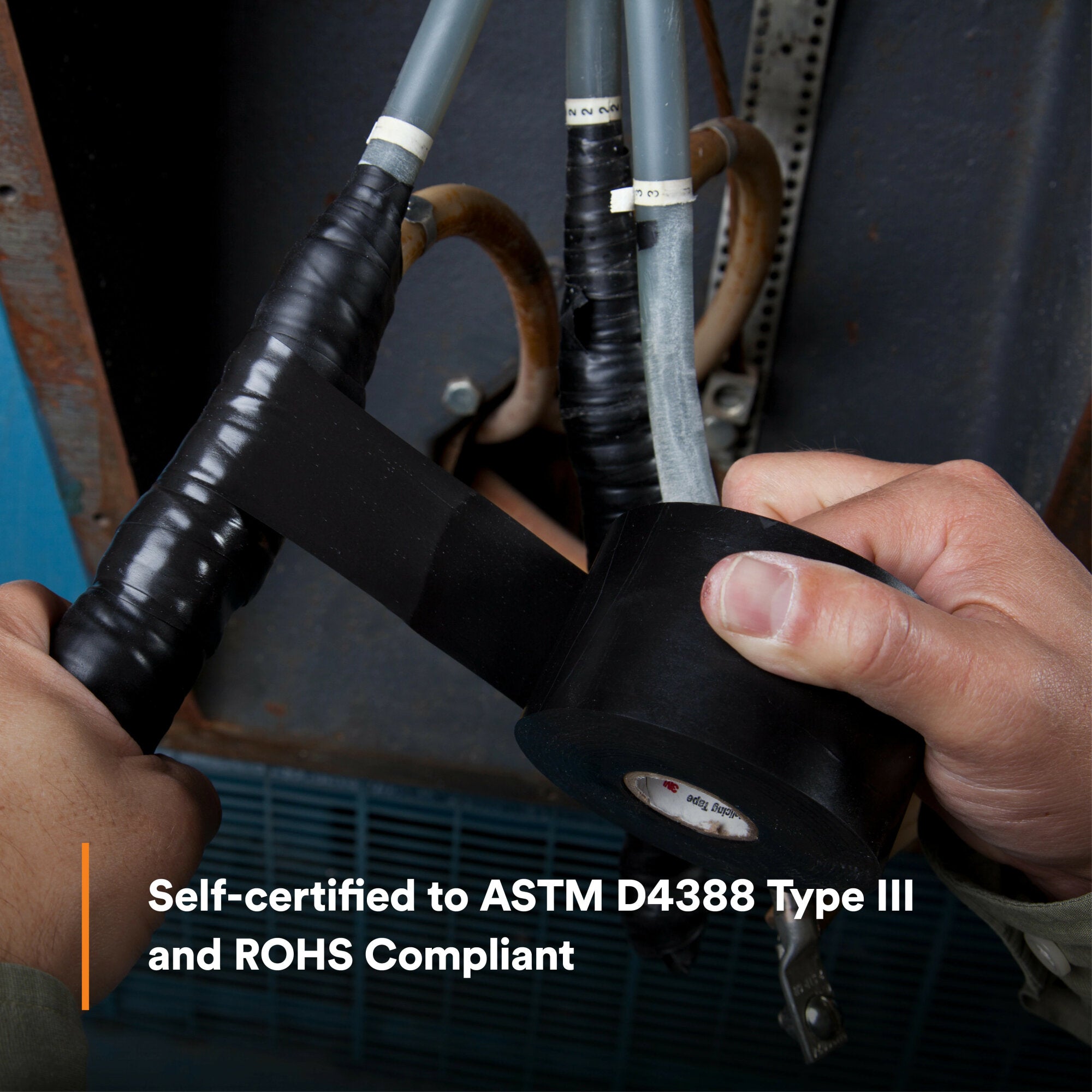

  • ASTM Approved and RoHS 2011/65/EU Compliant

Product Details

General Information
Brand
Scotch®
Adhesive Type
Rubber
Country Of Origin
United States
California Residents
Dimensions and Specifications
Backing (Carrier) Thickness (Imperial)
30 mil
Backing (Carrier) Thickness (Metric)
0.76 mm
Maximum Operating Temperature (Celsius)
90 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
194 Degree Fahrenheit
Minimum Operating Temperature (Celsius)
0 Degree Celsius

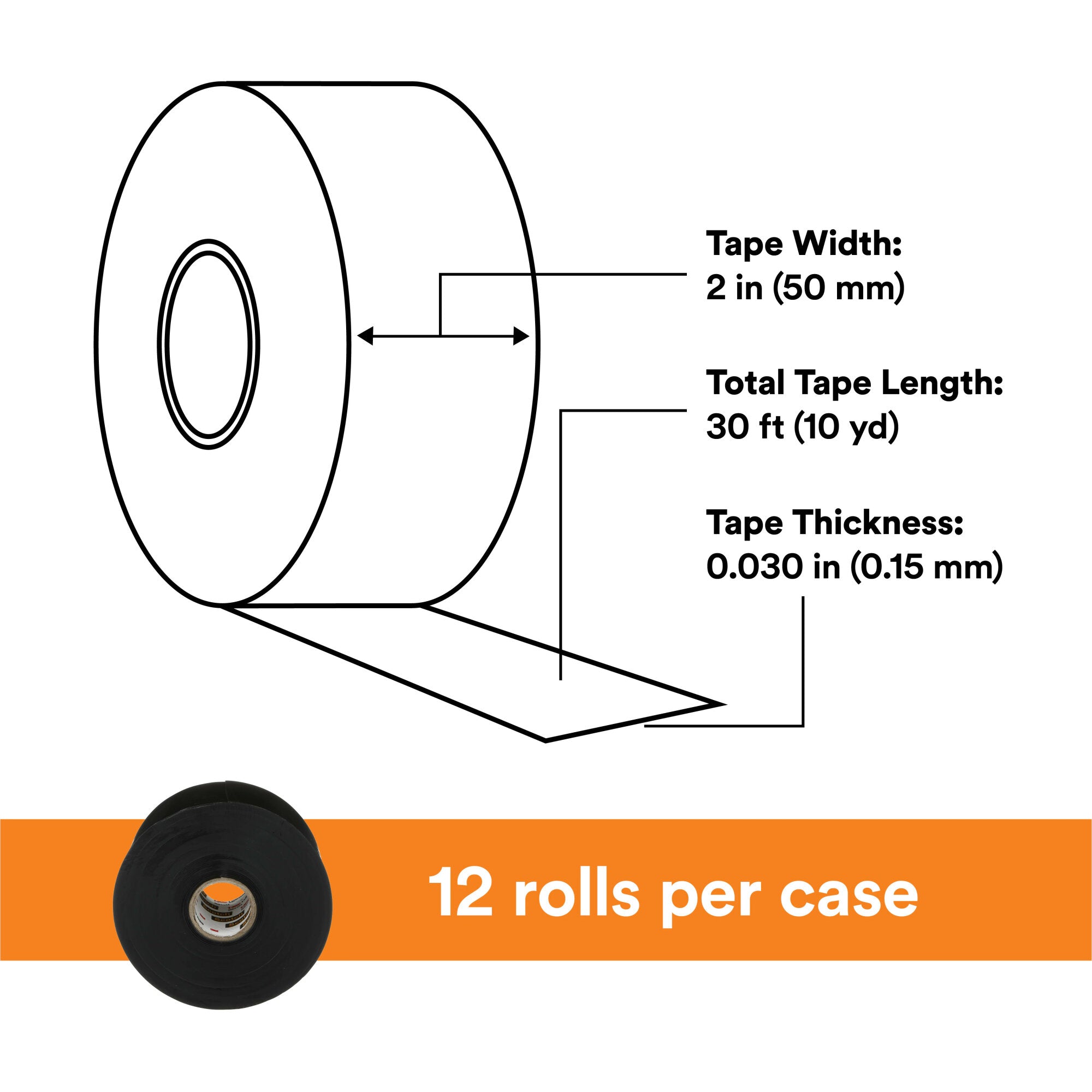

Overall Length (Imperial)
30 ft
Overall Length (Metric)
9.1 m
Overall Width (Imperial)
2 in
Overall Width (Metric)
50.8 mm
Tensile Strength (Imperial)
250.0 psi
Tensile Strength (Metric)
1723 kg
Total Tape Thickness Without Liner (Imperial)
30 mil
Total Tape Thickness Without Liner (Metric)
0.76 mm
Voltage Rating
69 kV
Overall Length Imperial
30.0
Total Tape Thickness Without Liner Metric
0.76
Other Details
Dielectric Strength
750 V/mil
Elongation At Break
850.0 %
Insulation Resistance
>10^15 ohms
Tape Grade
Professional
Units Per Case
12.0
Tensile Strength Imperial
250.0
Usage Information
Application
Insulation
Application/Industry
Appliance and Fixture
Material and Composition
Backing (Carrier) Material
Ethylene Rubber
Shelf Life
5 Year
Backing Carrier Material
Ethylene Rubber
Color and Appearance
Product Color
Black
Certifications and Standards
Specifications Met
ASTM D-4325
Product Features
Features
UV-resistant
