SilverStone ST1100-TI Power Supply

$399.99
Free shipping
The 80 PLUS Titanium certification represents the pinnacle of power supply efficiency with requirement of at least 90% conversion efficiency even at the very low 10% loading condition. For SilverStone, achieving the highest efficiency is... Read more

Overview

Brand img

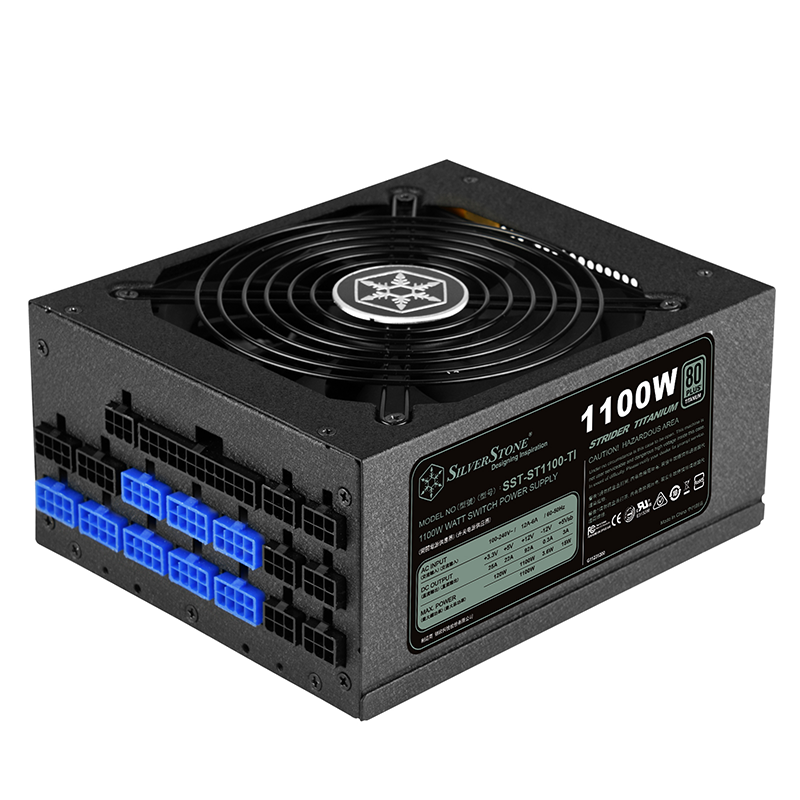

SilverStone ST1100-TI Power Supply

The 80 PLUS Titanium certification represents the pinnacle of power supply efficiency with requirement of at least 90% conversion efficiency even at the very low 10% loading condition. For SilverStone, achieving the highest efficiency is just one aspect to what makes for a technically advanced power supply. The available power also needs to be condensed into a physical package as small as possible so that users can freely utilize it in any case or system with minimal interference. For the Strider Titanium series power supplies, all models are among the smallest in size for their wattage levels. As befitting of being in the Strider series, abundant enthusiasts features are included such as all Japanese capacitors, ±3% regulation, powerful single +12V rail, 24/7 continuous power output at 50℃, and dual EPS 8pin with multiple PCI-E 8 / 6pin connectors support. For those looking to build the most efficient systems possible with multiple GPUs for gaming, folding, mining, scientific calculations, or machine learning, the 1100W / 1300W / 1500W Strider Titanium series power supplies are definitely the top choices.

Product Details

General Information
Manufacturer
SilverStone Technology
Part Number
ST1100-TI
Product Type
Power Supply
Power Description

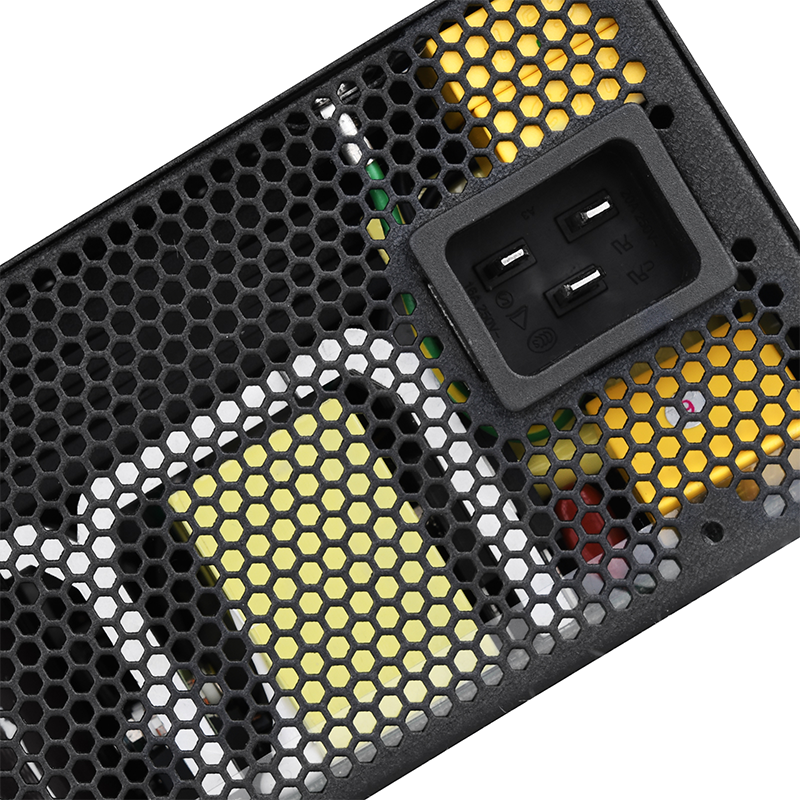

Input Voltage Type
AC
Input Voltage
110 VAC

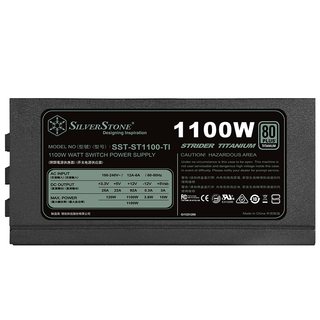

Output Voltage
+3.3V@25A
+5V@22A
+12V1@92A
+5VSB@3.0A
-12V@0.3A
Physical Characteristics
Weight (Approximate)
8.73 lbs
Technical Information
Efficiency
90% ~ 94% at 10% ~ 100% loading
Number of Fans

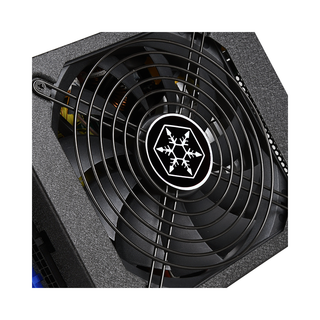

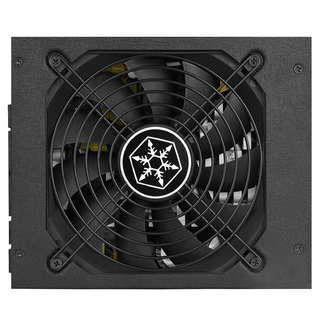

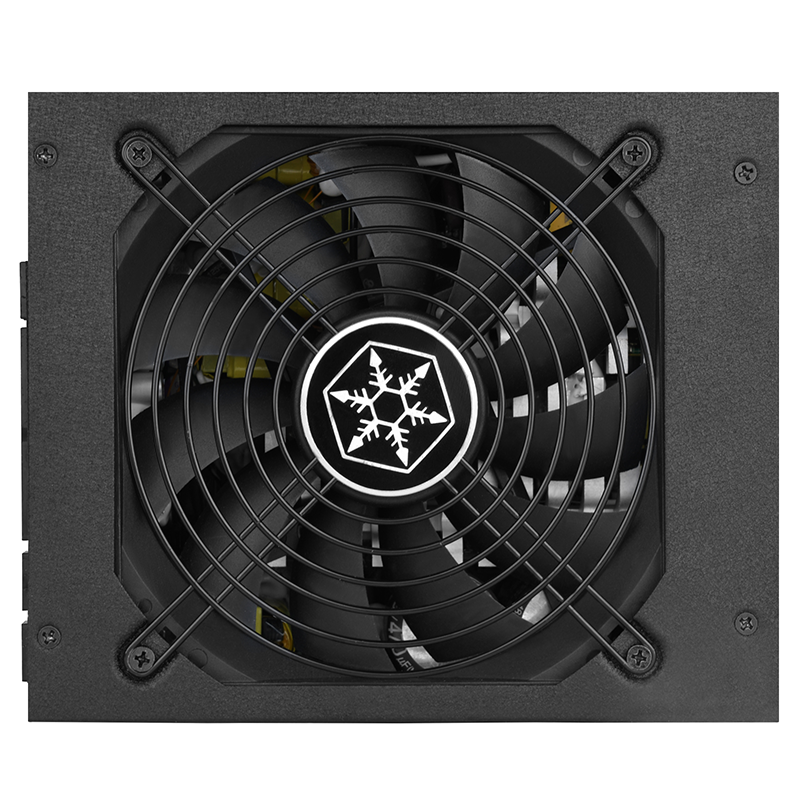

Single 135mm silent fan
Protection Type
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Under voltage protection
Over Temperature Protection
Interfaces Ports

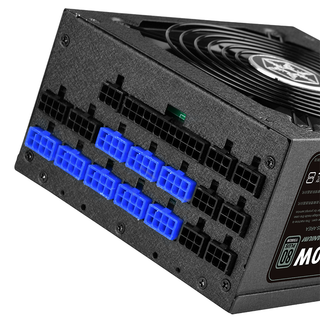

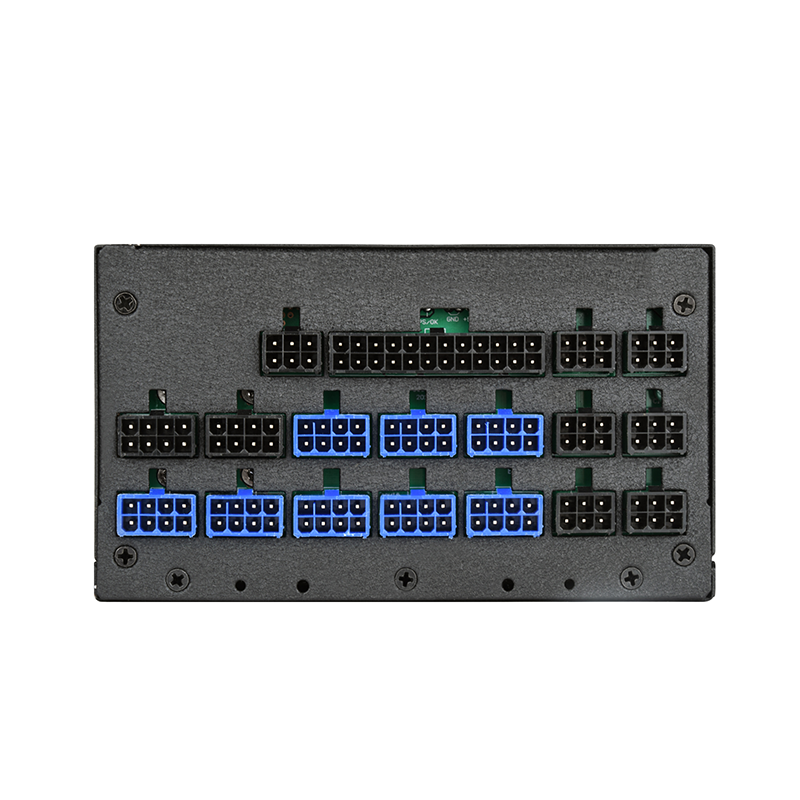

Connectors

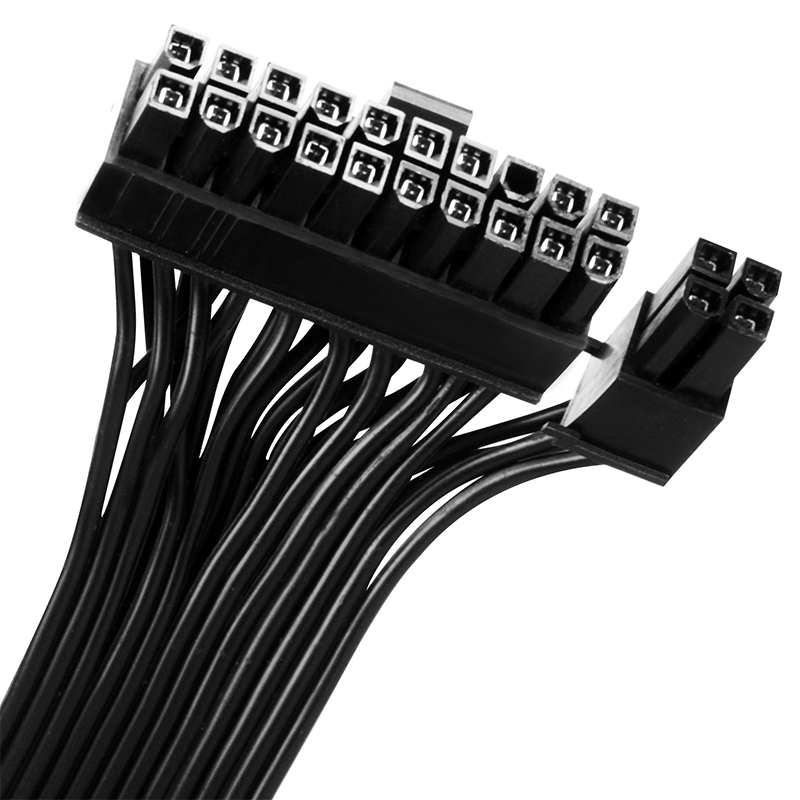

1 x 24 / 20-Pin motherboard connector (550mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (750mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (550mm)

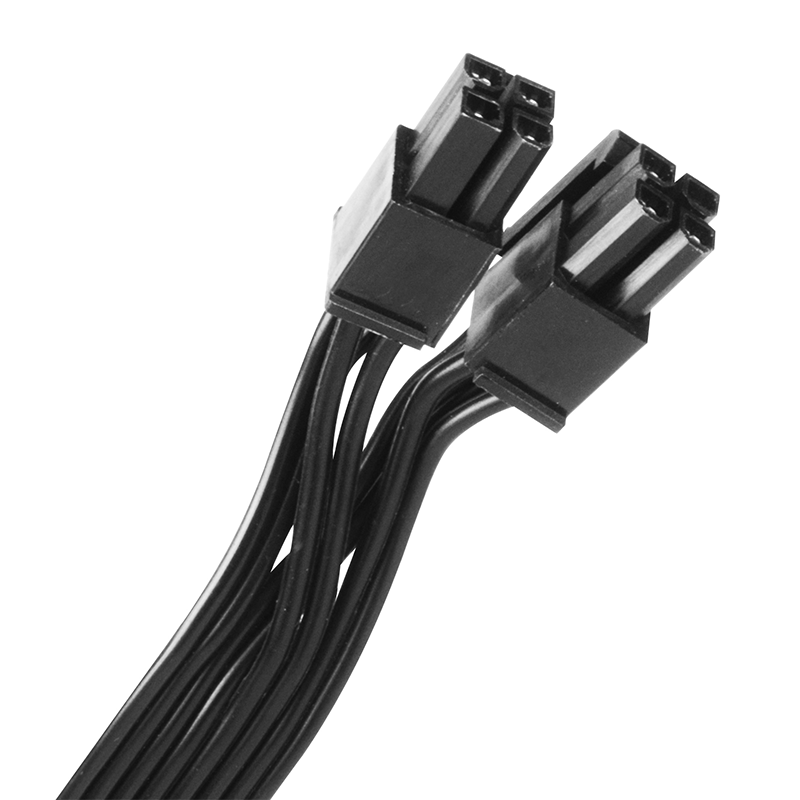

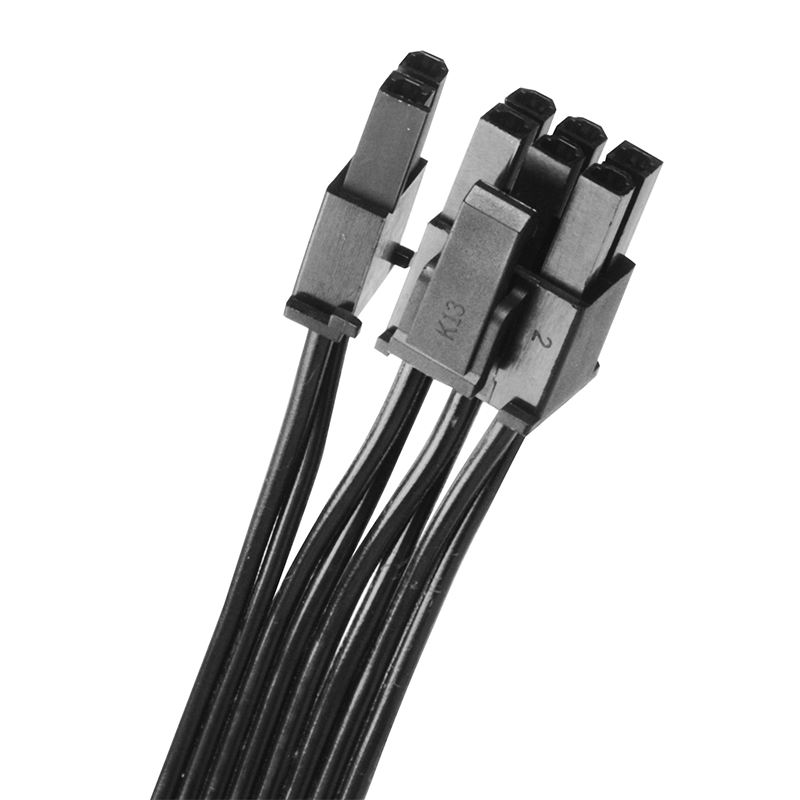

8 x 8 / 6-Pin PCIE connector ("550mm" x 8)

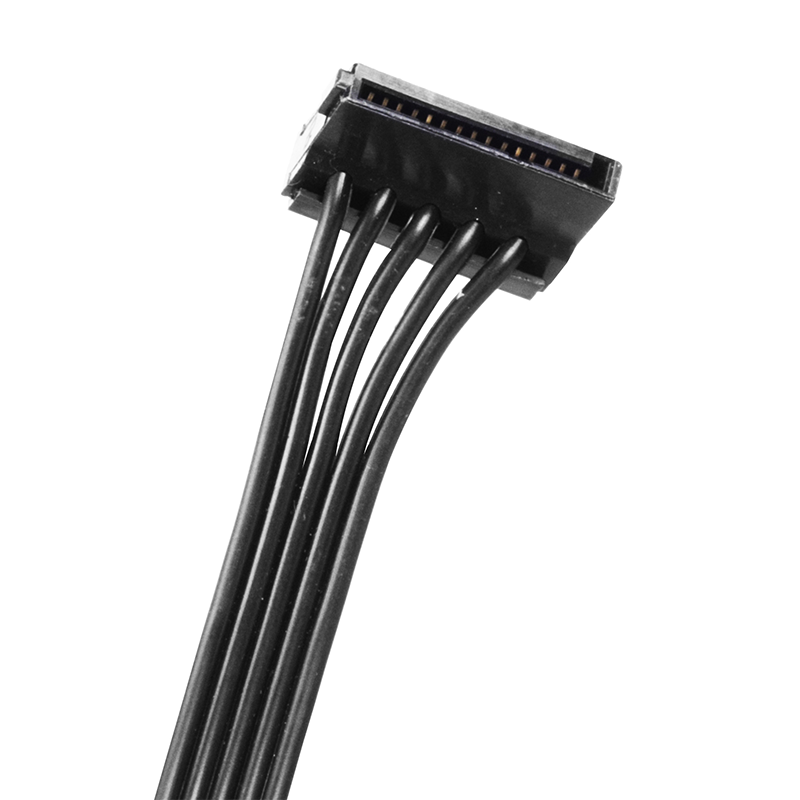

16 x SATA connector ("600mm / 150mm / 150mm / 150mm" x 4)

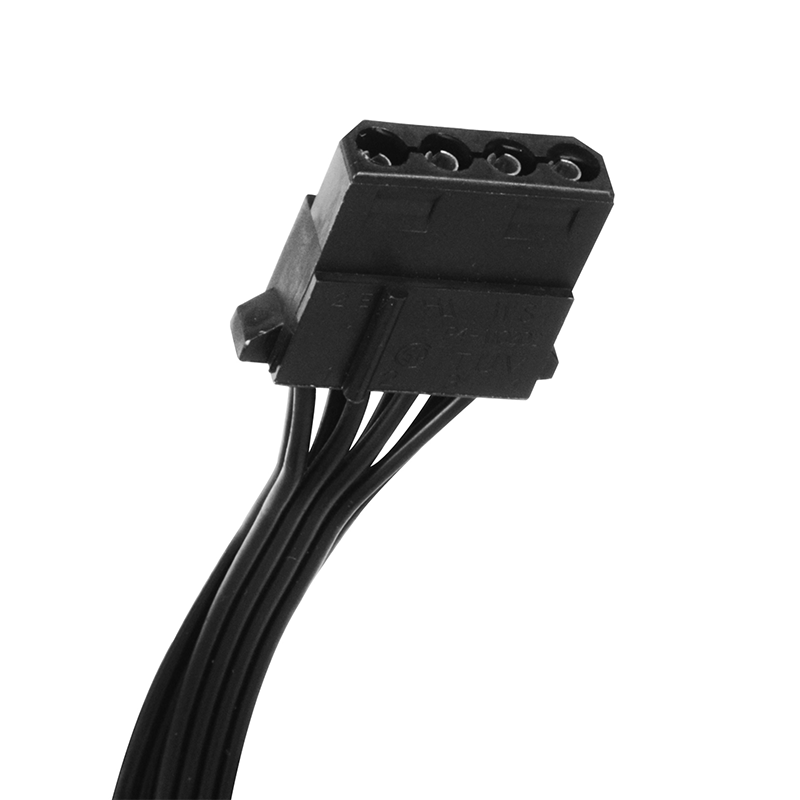

6 x 4-Pin Peripheral connector ("600mm / 150mm / 150mm" x 2)

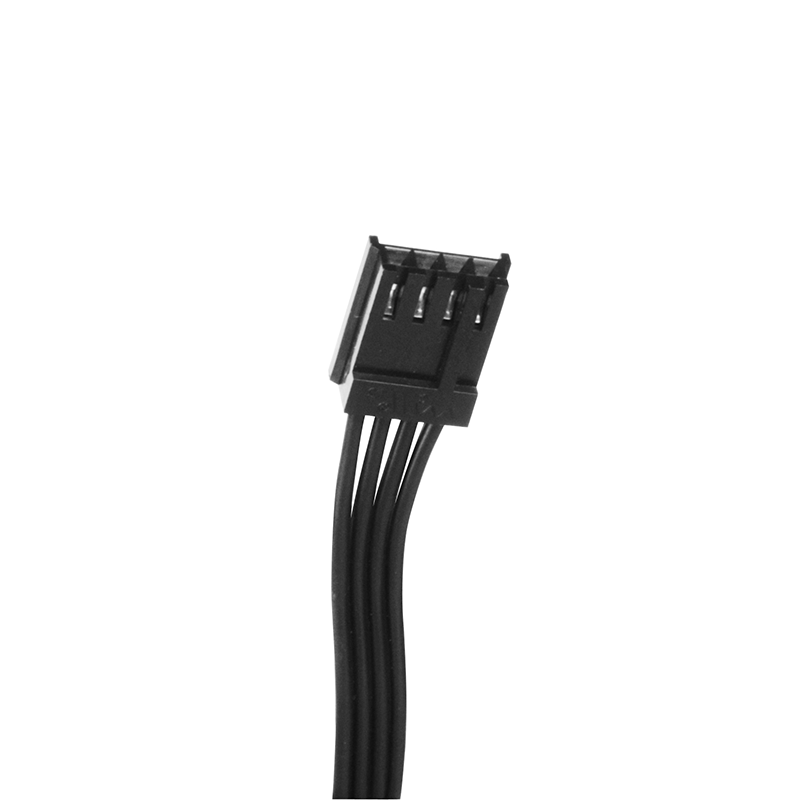

1 x 4-Pin Floppy adapter connector (100mm)
