SilverStone ST70F-PB Power Supply

Sold out
$89.99
Free shipping
The Strider series is the most versatile and time-proven line of power supply products from SilverStone with models rated from 500W to 1500W and packed with innovative features. To build on this impressive lineup, SilverStone... Read more

Overview

Brand img

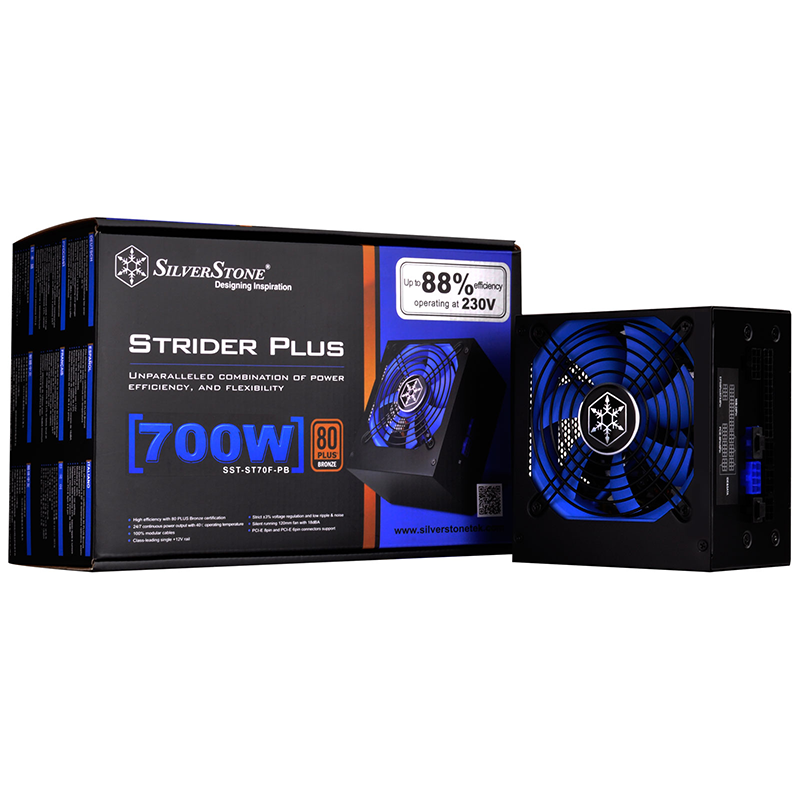

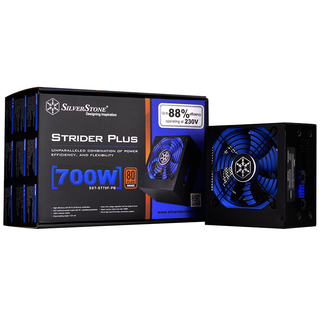

SilverStone ST70F-PB Power Supply

The Strider series is the most versatile and time-proven line of power supply products from SilverStone with models rated from 500W to 1500W and packed with innovative features. To build on this impressive lineup, SilverStone engineered a new generation of power supplies that combine more features than ever before. The Strider Plus ST70F-PB boasts the important features professionals and enthusiasts crave: •High efficiency: 80 PLUS Bronze level •Compact size (140mm depth) to fit in nearly any system •Class-leading powerful single +12V rail with 54A •Quiet and cool 120mm fan The versatility of these power supplies extends to the 100% modular cables with all the important connectors to support current and future graphics card specifications. For enthusiasts that are looking for the power supply with all the right features to make a high performing and aesthetically pleasing system, the Strider Plus series reaches the goal with maximum satisfaction.

Product Details

General Information
Manufacturer
SilverStone Technology
Part Number
ST70F-PB
Product Type
Power Supply
Power Description
Input Voltage Type
AC
Input Voltage
110 VAC
Output Voltage
+3.3V@22A
+5V@18A
+12V@54A
+5VSB@2.5A
-12V@0.3A
Physical Characteristics
Weight (Approximate)
4.41 lbs
Technical Information
Efficiency
82%~85% at 20% ~ 100% loading
Number of Fans

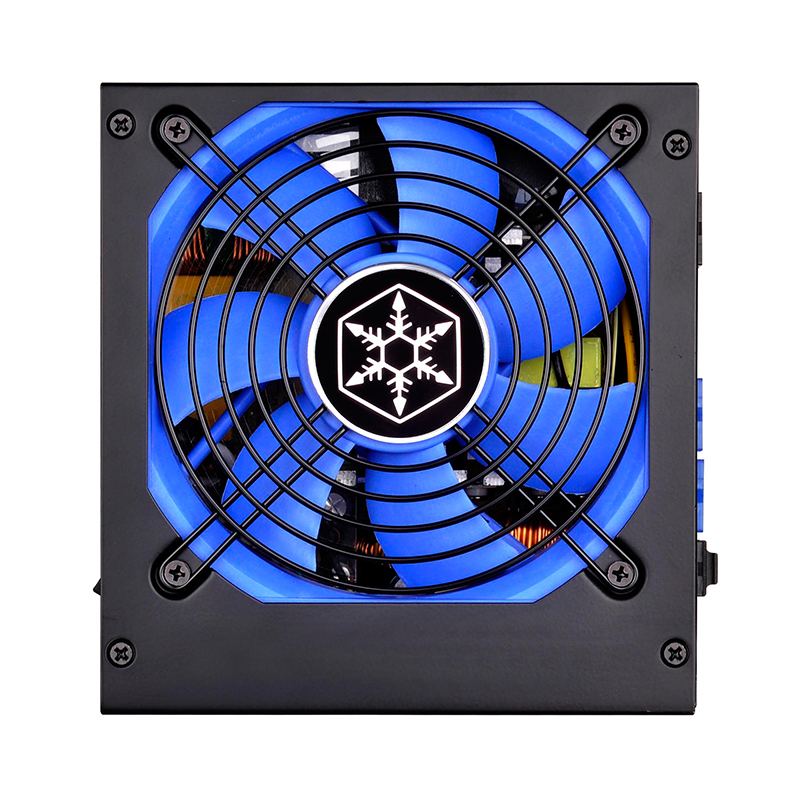

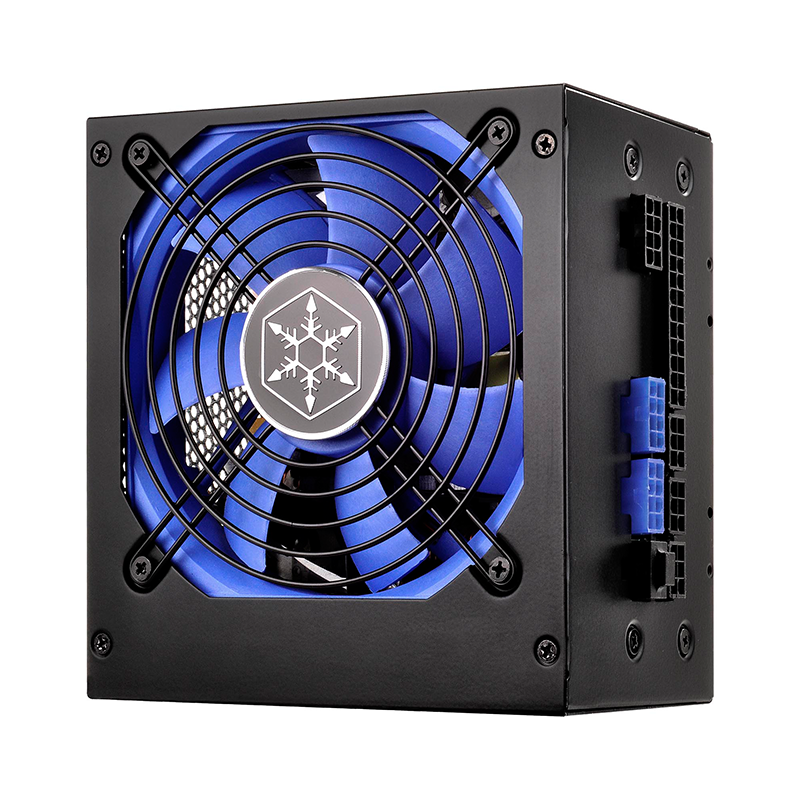

Single 120mm silent fan
Protection Type
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
Interfaces Ports

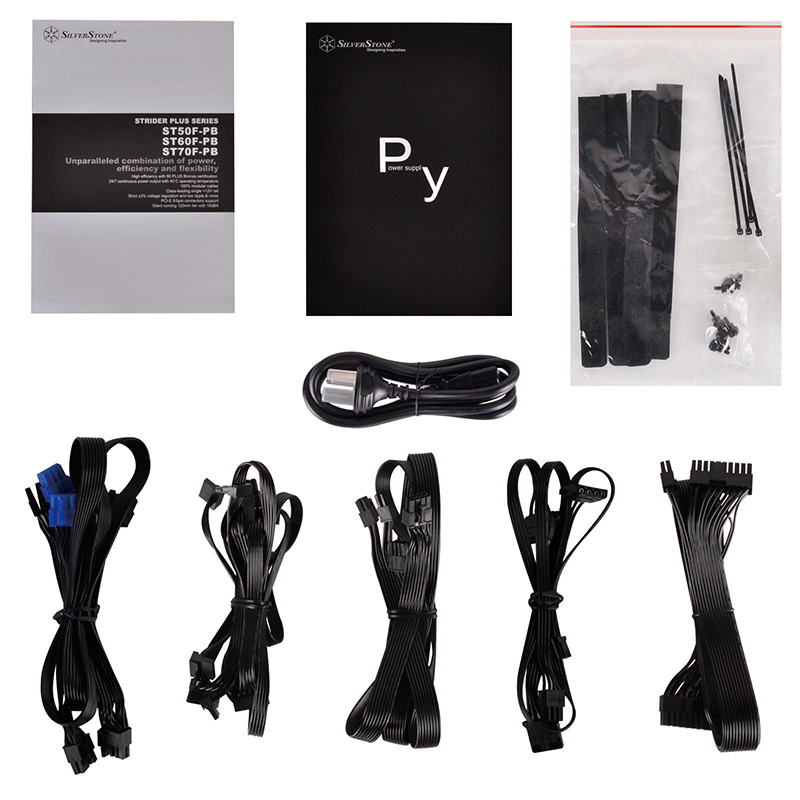

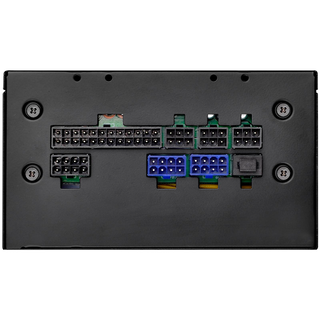

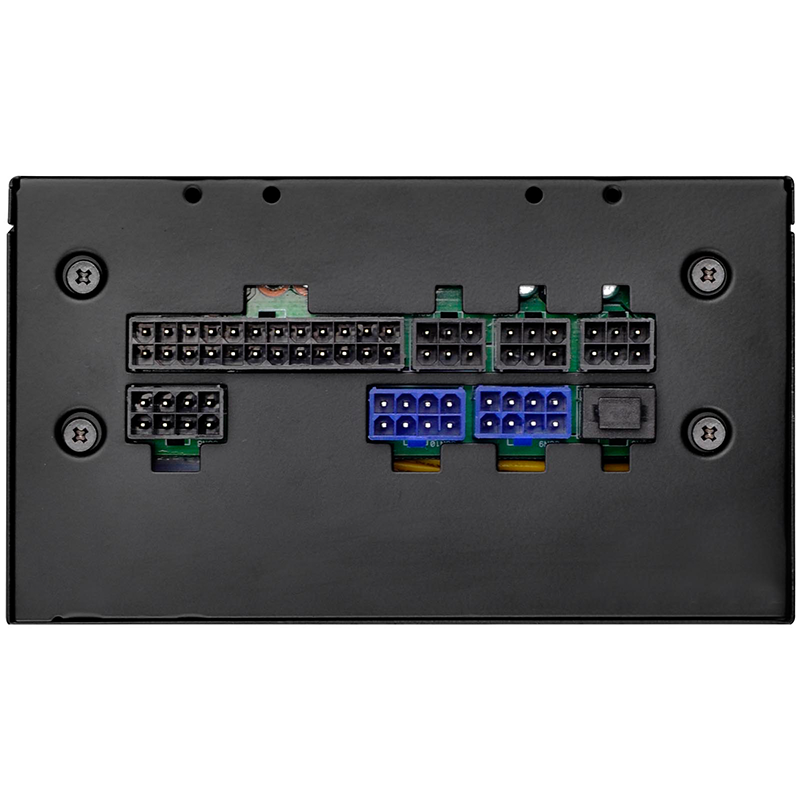

Connectors
1 x 24 / 20-Pin motherboard connector(550mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(750mm)
4 x 8 / 6-Pin PCIE connector("550mm / 150mm" x 2)
8 x SATA connector("600mm / 150mm / 150mm /150mm" x 2)
3 x 4-Pin Peripheral connector (600mm / 150mm / 150mm)
1 x 4-Pin Floppy connector(600mm / 150mm / 150mm / 150mm)
