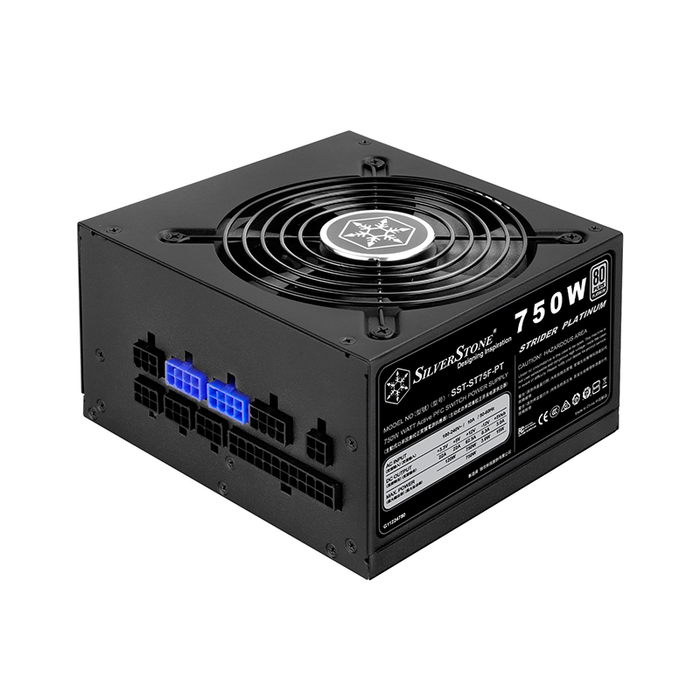

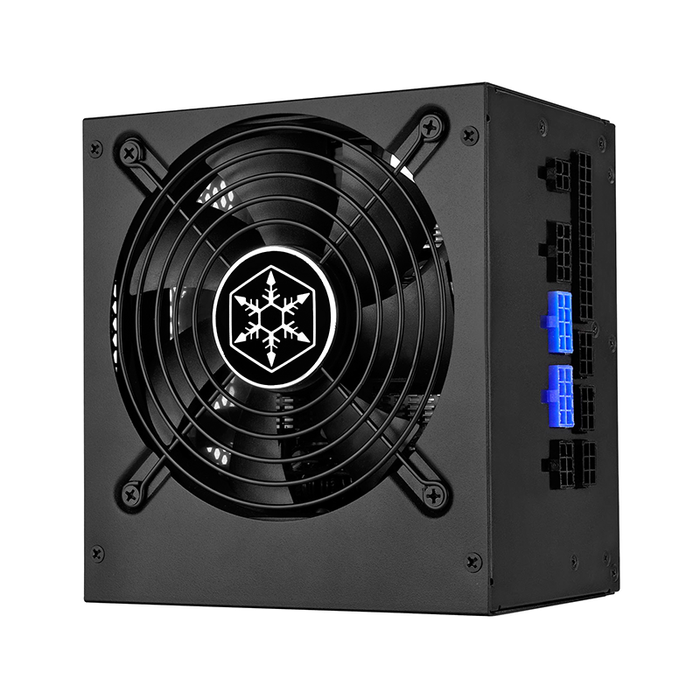

SilverStone ST75F-PT Power Supply

$144.99
Free shipping
As desktop computers continue to advance toward ever more efficient and smaller designs, SilverStone is helping to drive the efficiency movement by releasing the Strider Platinum series of power supplies. Created to be the smallest... Read more

Overview

Brand img

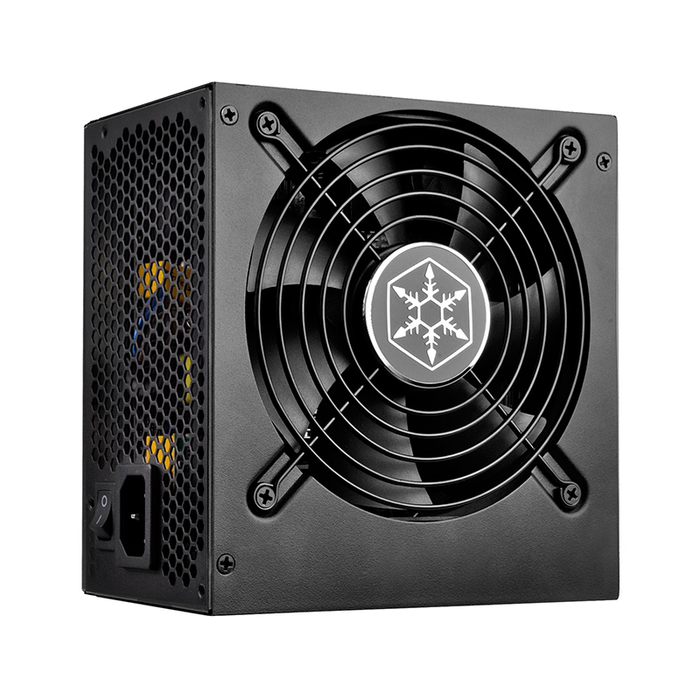

SilverStone ST75F-PT Power Supply

As desktop computers continue to advance toward ever more efficient and smaller designs, SilverStone is helping to drive the efficiency movement by releasing the Strider Platinum series of power supplies. Created to be the smallest fully modular ATX power supplies with 80 PLUS Platinum efficiency, they are also incredibly quiet with the ability to run in fanless mode. If the loading condition is below 20%, the fan in the power supply can remain off for silent operation during idle or low powered computing activities. Other great features inherited from previous Strider series include ±3% regulation, powerful single +12V rail, 24/7 continuous power output, and multiple PCI-E cables. For those looking to build highly efficient systems in small footprints, the Strider Platinum is definitely the best choice.

Product Details

General Information
Manufacturer
SilverStone Technology
Part Number
ST75F-PT
Product Type
Power Supply
Power Description
Input Voltage Type
AC
Input Voltage
110 VAC

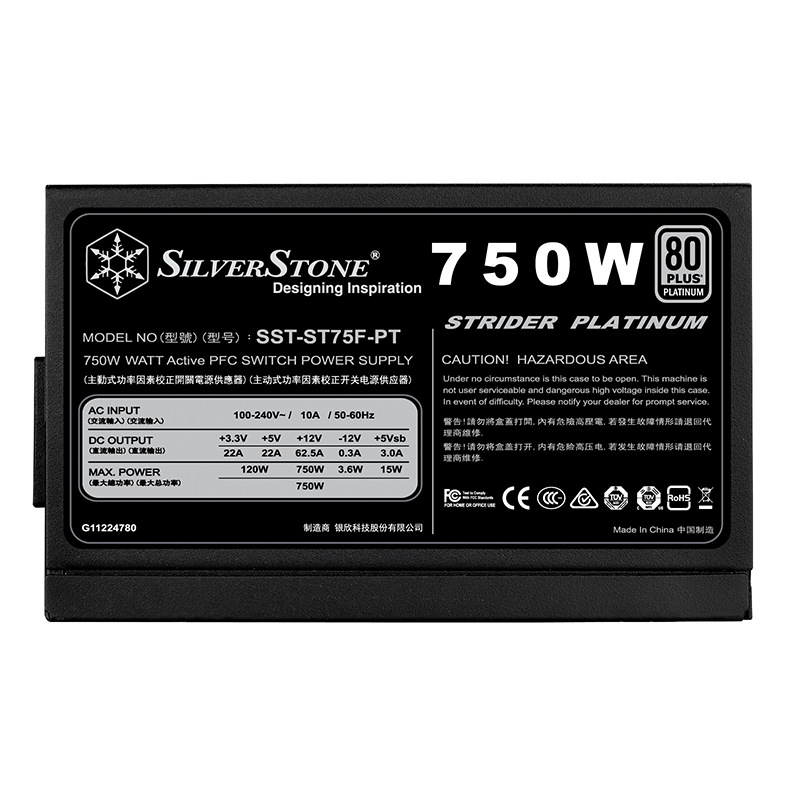

Output Voltage
+3.3V@22A
+5V@22A
+12V@62.5A
+5VSB@3.0A
-12V@0.3A
Physical Characteristics
Weight (Approximate)
4.96 lbs
Technical Information
Efficiency
89%~92% at 20%~100% loading

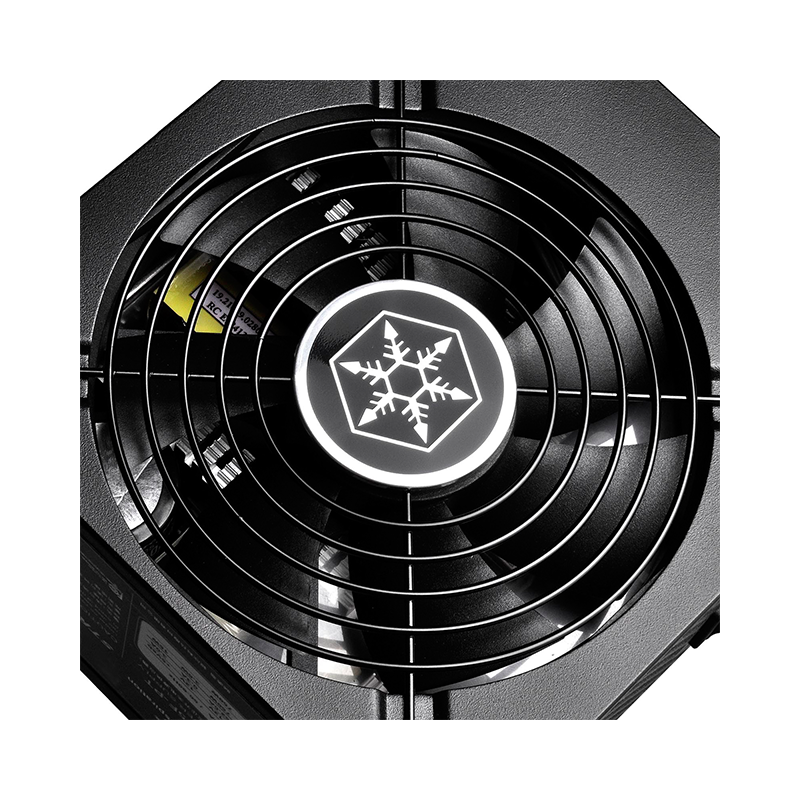

Number of Fans

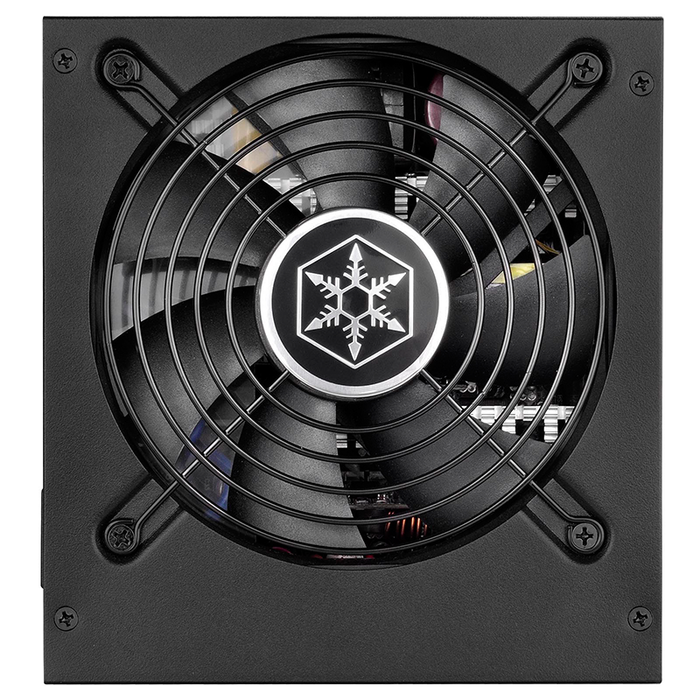

Single 120mm silent fan
Protection Type
Over current protection
Over power protection
Over voltage protection
Under voltage protection
Over temperature protection
Short circuit protection
Interfaces Ports

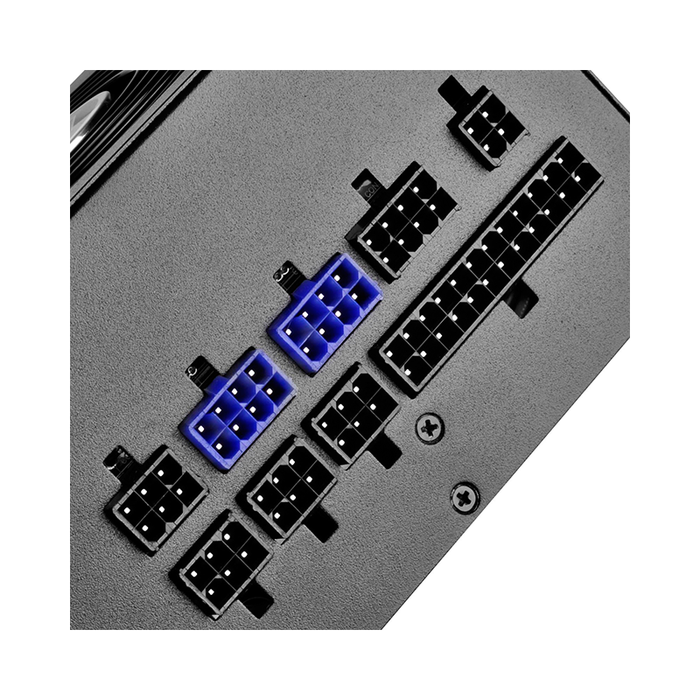

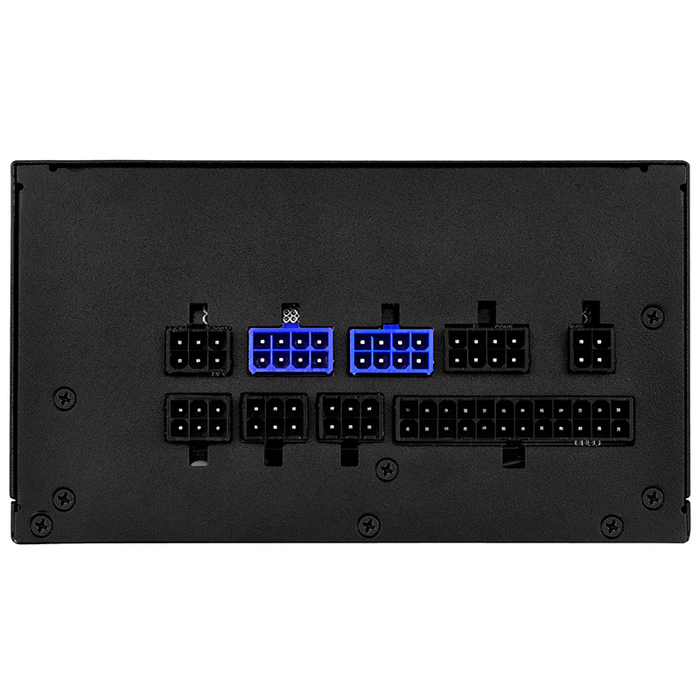

Connectors
1 x 24 / 20-Pin motherboard connector(550mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(750mm)
4 x 8 / 6-Pin PCIE connector("550mm / 150mm"x2)
8 x SATA connector("600mm / 150mm / 150mm /150mm"x2)
6 x 4-Pin Peripheral connector("600mm / 150mm / 150mm"x2)
2 x 4-Pin Floppy connector("600mm / 150mm / 150mm / 150mm"x2)
