About this item

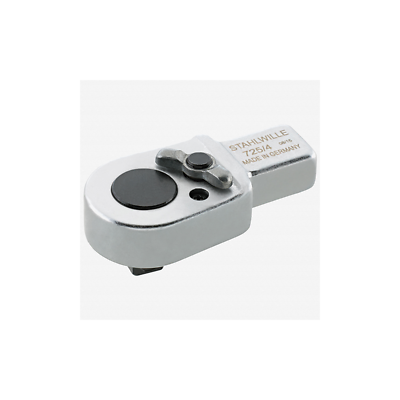

Stahlwille 58255005 725B 5/16" Bit ratchet insert tool, size 5, 9x12 mm
- 58255005
- Stahlwille
- Torque Accessories
Downloads
No files available.
Key points
- for torque wrenches with interchangeable insert system
- reversible
- with internal hex, 1/4" or 5/16", DIN 3126 / ISO 1173 D 6.3 or D8
- for direct mounting of bits with 1/4" or 5/16" external hex C 6.3 or C 8 (size 4: 22 teeth, size 5: 30 teeth)
- hex with collar-thrust spring
Description
Designed for torque wrenches with an interchangeable insert system, this reversible insert ensures maximum flexibility and secure performance. It features an internal hex of 1/4" or 5/16" in accordance with DIN 3126 / ISO 1173 D 6.3 or D 8 standards, allowing direct mounting of bits with 1/4" or 5/16" external hex C 6.3 or C 8. Available in size 4 (22 teeth) and size 5 (30 teeth), it includes a hex with collar-thrust spring for reliable retention. Bits are easy to insert, lock securely into place, and can be removed effortlessly. Compatible with hex bits featuring a wide groove (Form E, DIN 3126 / ISO 1173), it ensures versatile and dependable operation.
