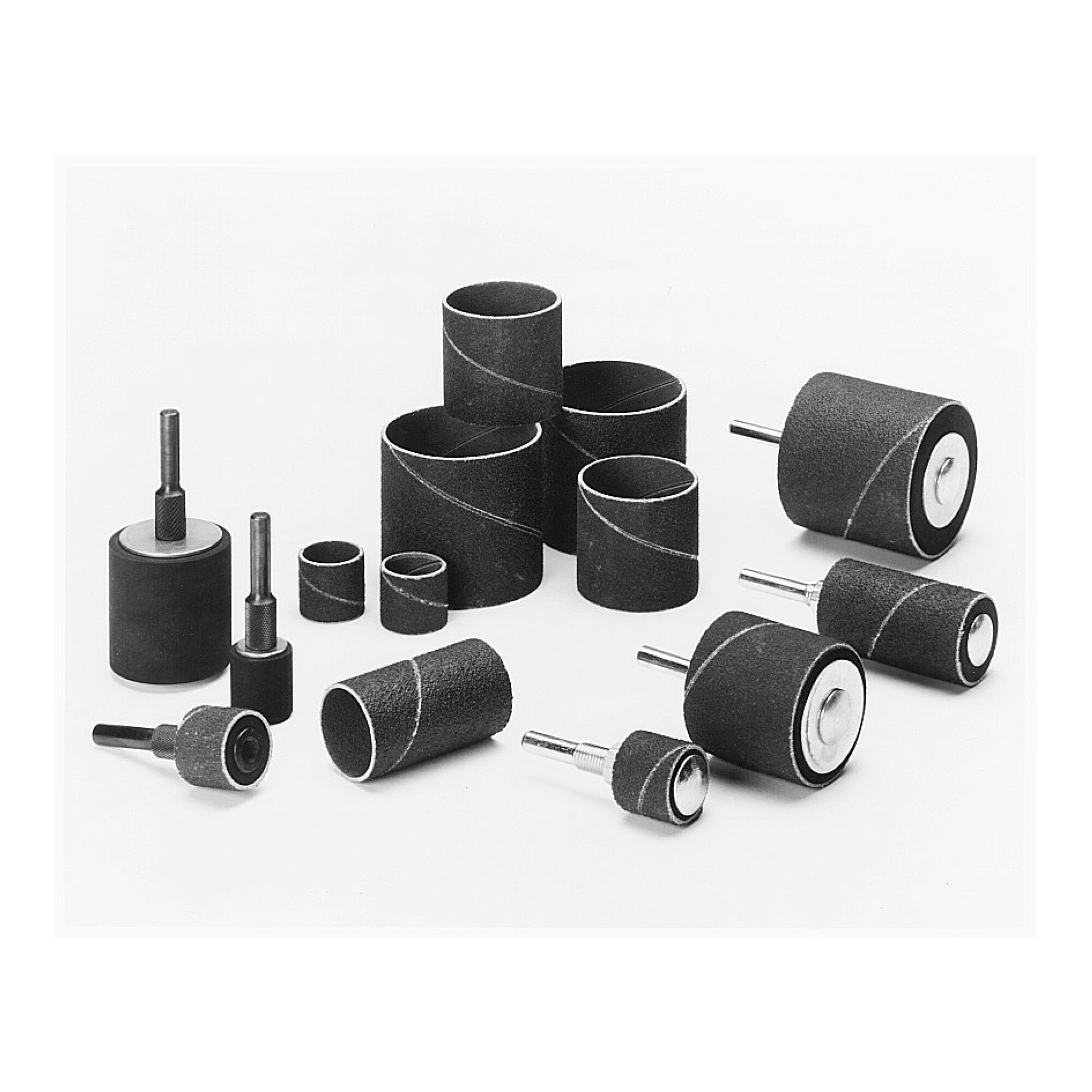

Standard Abrasives™ A/O Spiral Band 702568, 1 in x 1 in 80

by 3M
$55.99
100 per order    Single ply abrasive is flexible and tensile, conforming to flat and contoured surfaces    Spiral construction helps eliminate shadow marks and chatter    Aluminum oxide mineral is friable and breaks down... Read more

Overview

Brand img

Standard Abrasives™ A/O Spiral Band 702568, 1 in x 1 in 80

100 per order

  Single ply abrasive is flexible and tensile, conforming to flat and contoured surfaces

    Spiral construction helps eliminate shadow marks and chatter

    Aluminum oxide mineral is friable and breaks down to reveal sharp cutting edges for a consistent cut

    Spiral band easily fits over rubber drums

    No tools required for band changes

Standard Abrasives™ Aluminum Oxide Spiral Band is a tensile yet strong abrasive – great for light finishing, polishing, blending and deburring on both hard and soft metals.

Recommended Applications

Standard Abrasives™ Aluminum Oxide Spiral Band is the best product for polishing and blending flat surfaces and contours, because its spiral shape enables it to smoothly roll over these surfaces. The circular band rotates centrifugally as you move it around the workpiece and – given its small size – the abrasive can easily fit inside hard-to-reach areas. Standard Abrasives™ Aluminum Oxide Spiral Band is great for removing parting lines, tiny imperfections and little burrs, which could otherwise be difficult to remove with a larger abrasive disc or wheel.

Special Features

The spiral construction on Standard Abrasives™ Aluminum Oxide Spiral Band eliminates shadow marks and chatter. Aluminum oxide mineral cuts sharp but is still friable, fragmenting under heat and pressure to reveal sharp cutting edges, so you get a consistent cut throughout the life of the abrasive. Available in grades 24 to 320 grit, you can choose the right grade for your project, depending how aggressive a scratch you desire. Coarser grades, like 24, are good for heavy stock removal, whereas finer grades, like 320, are good for metal finishing and polishing.

Tips for Optimal Use

Standard Abrasives™ Spiral Bands are intended for use with rubber drums. The single ply or "single thickness" abrasive fits snugly around the drum like a glove. Compared to 2- or 3-ply thicknesses, the single ply is a bit more flexible and conformable, which makes it a good match for contoured surfaces. It is important for both the drum and the abrasive to have the same nominal diameter to prevent skipping and bumping.

Rather than deflecting or skidding over the substrate, the Spiral Band stays in constant contact with the workpiece to swiftly rid the surface of little burrs. The maximum allowable RPM for spiral bands is the same as the maximum RPM of the drum, provided the drum and band have the same nominal diameter. Typically, the rubber drum attaches to portable drills, die grinders, straight shaft and angle grinders. The great news is, the drum requires no extra tools for band changes.

Removing contaminants from flat and contoured surfaces is smooth – in finish and operation.


Product Details

General Information
Manufacturer
3M
Part Number
7100138190
Product Type
Sander Belts
