About this item

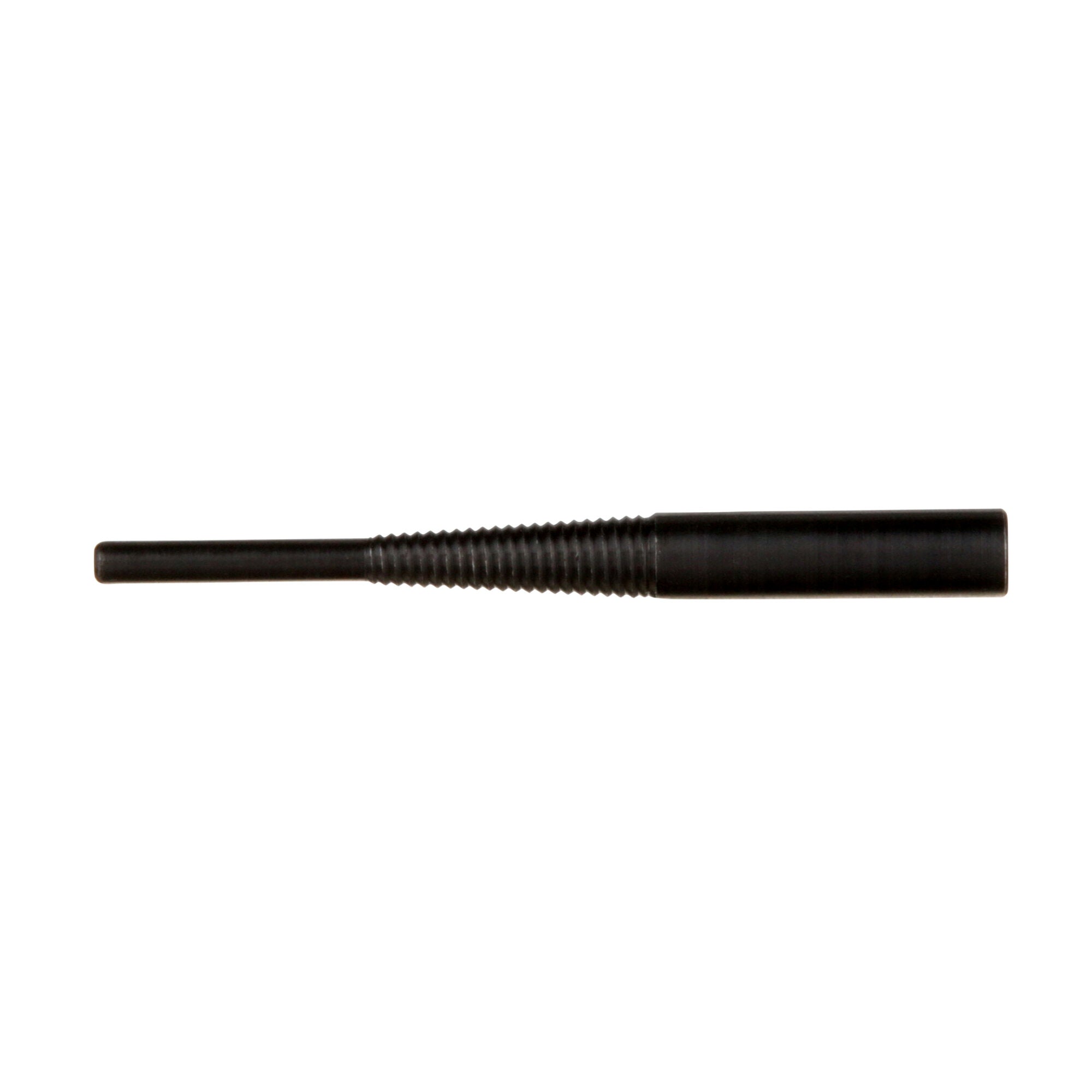

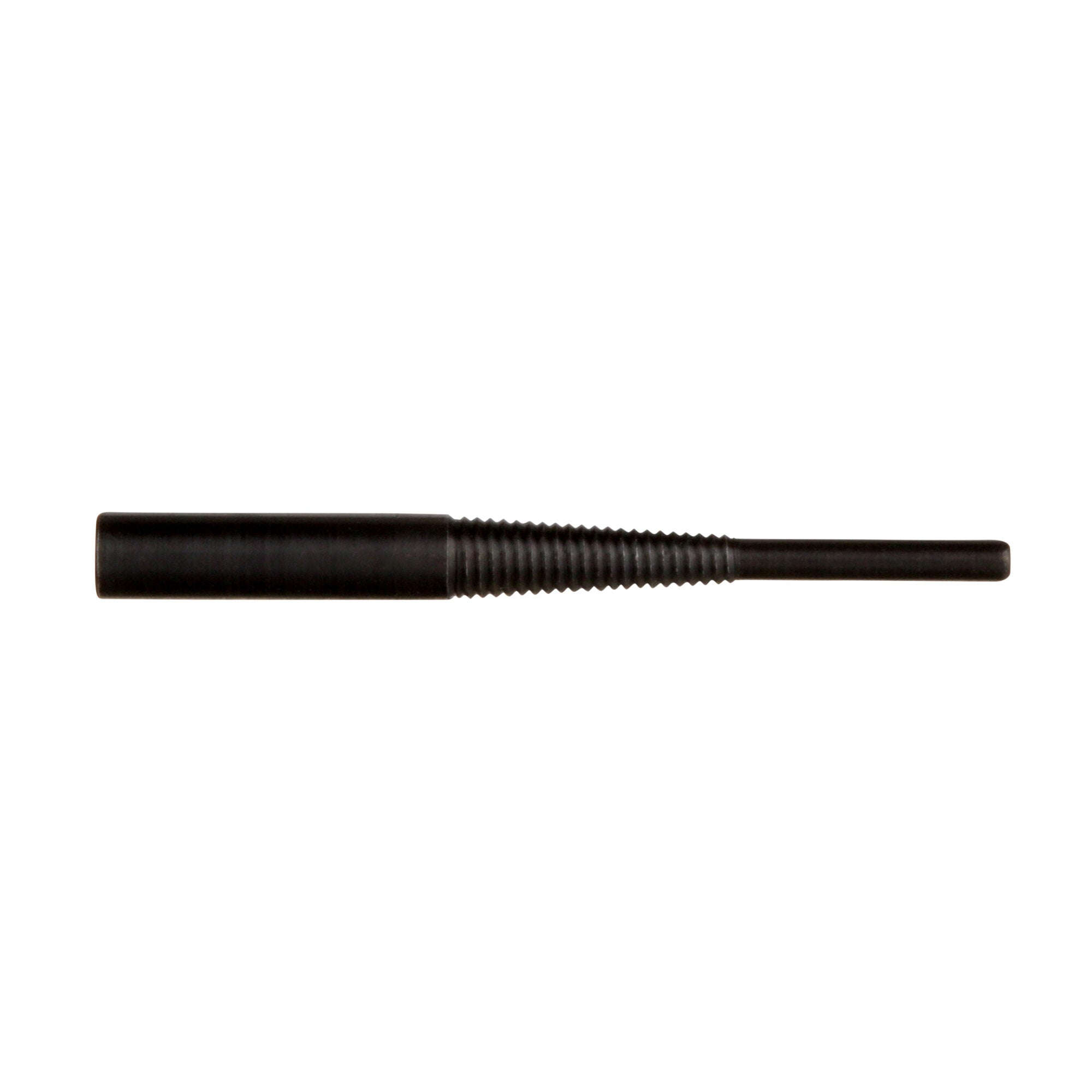

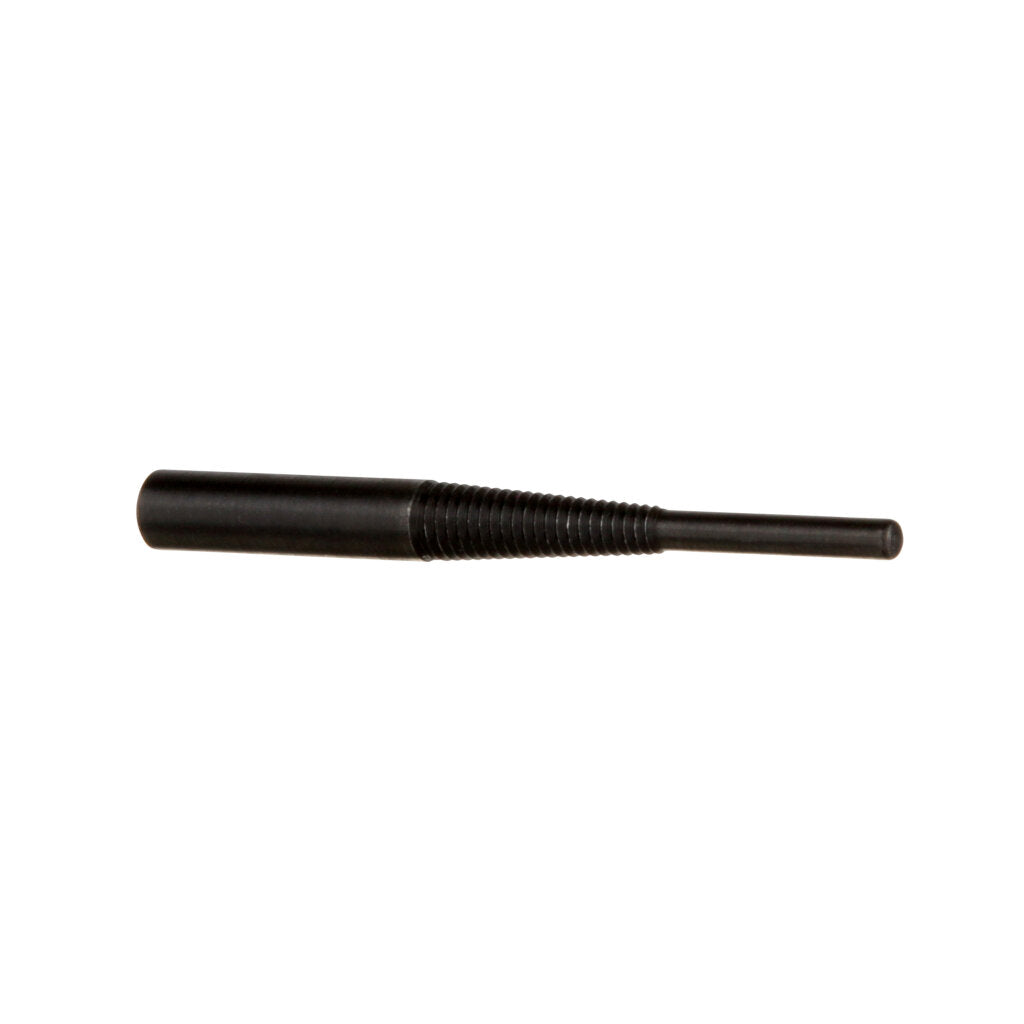

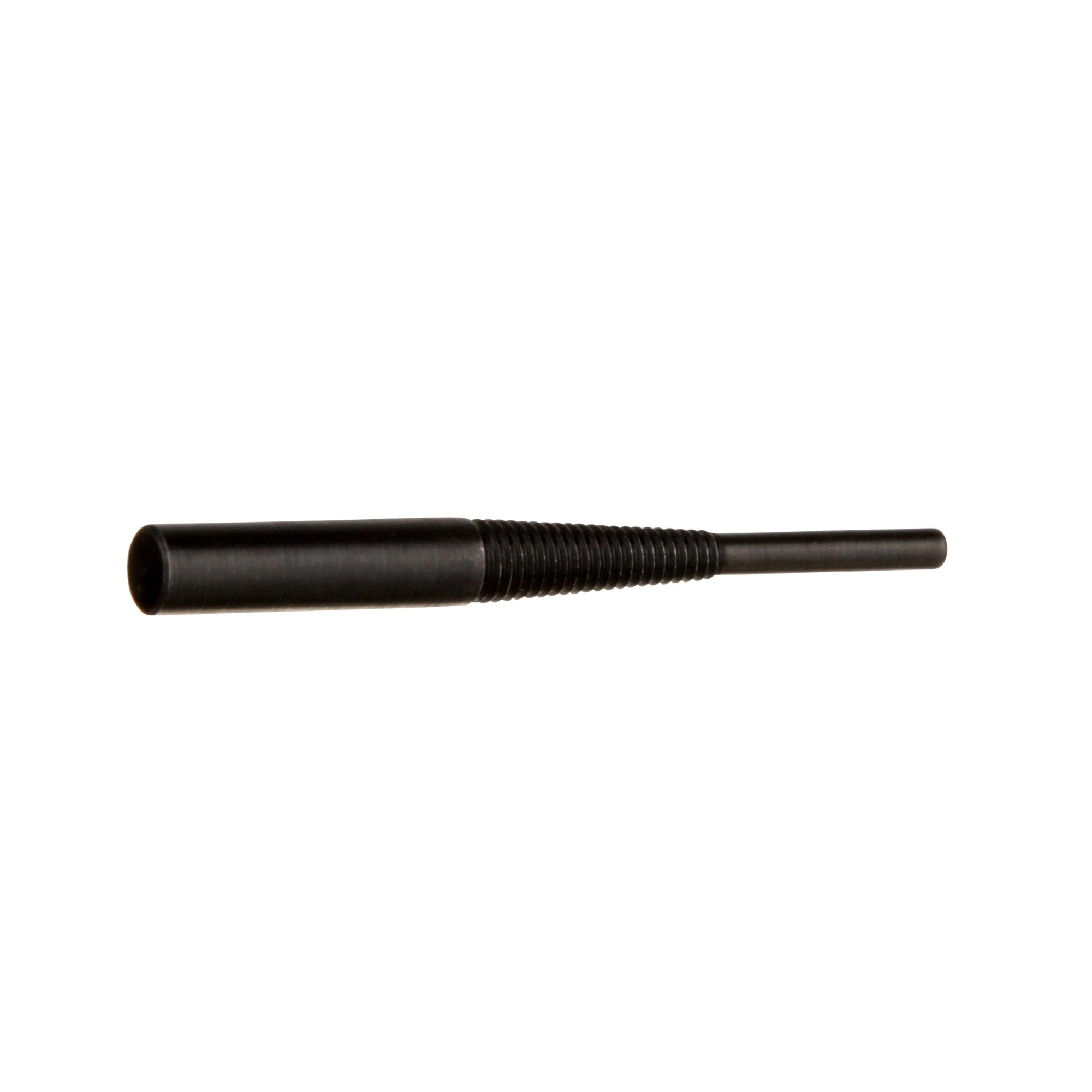

Standard Abrasives Cartridge Roll Mandrel 700717
- 7000121752
- 3M
- Mandrels & Adapters
Downloads
Brochures
Key points
- Fits all Standard Abrasives™ Straight, Full Tapered and Half Tapered Cartridge Rolls
- Shank of the mandrel is secured into the collet assembly or drill chuck of a rotary power tool
- Mandrel enables access to tight spaces with a cartridge roll
- Comes in various pilot diameters and lengths to fit different cartridge rolls
- Made of plated steel for enhanced durability
Description

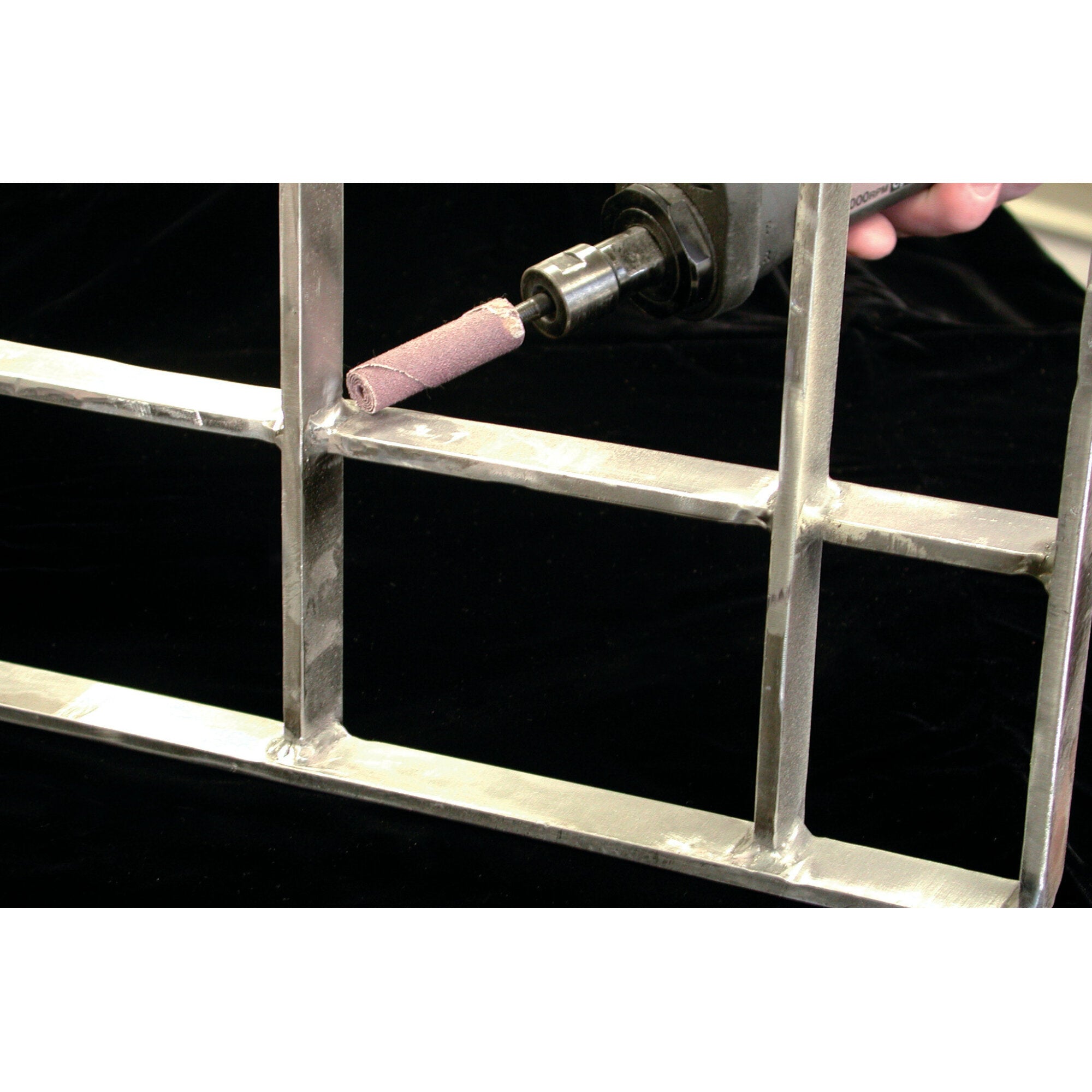

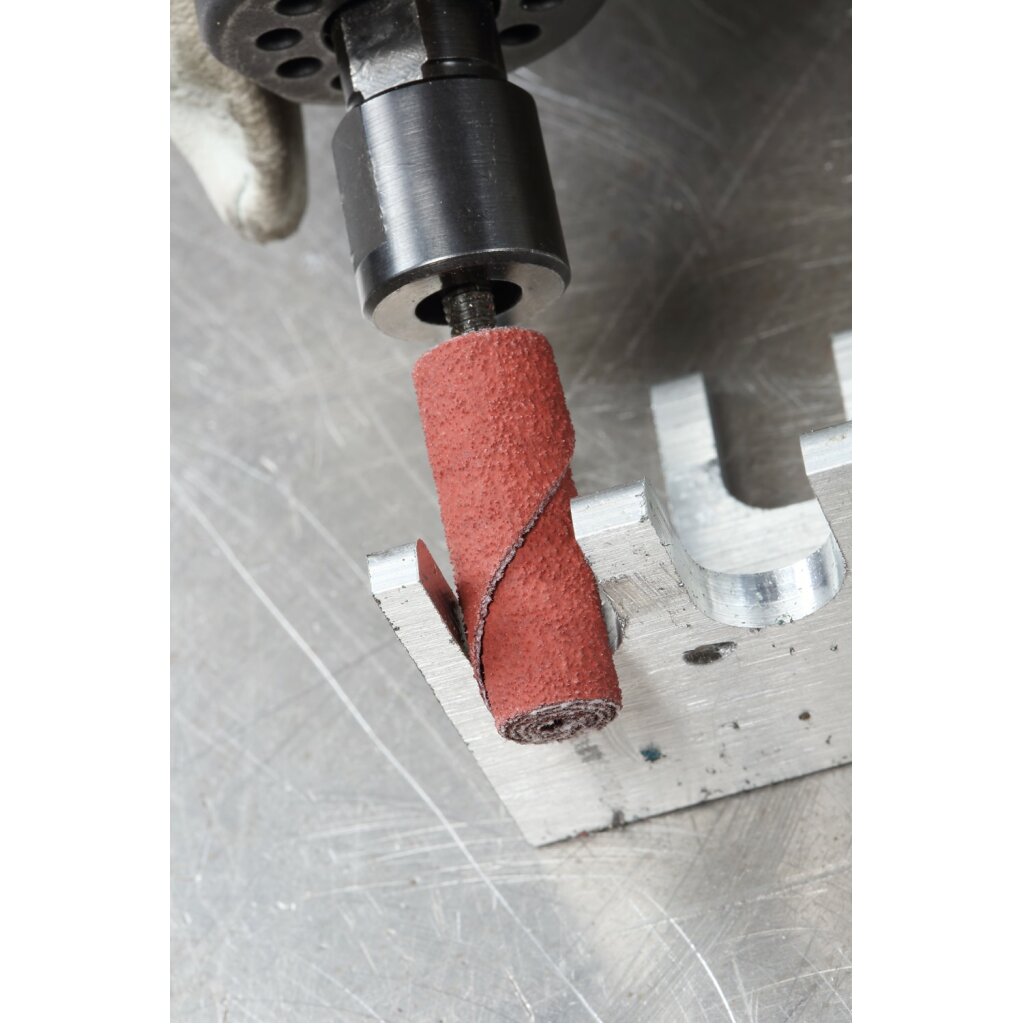

Standard Abrasives Cartridge Roll Mandrels is a tool attachment that holds an abrasive cartridge roll (sold separately). Together, the mandrel and cartridge roll grind and finish hard-to-reach areas of a workpiece, such as angles and curves.Great for Metalworking in Hard-To-Reach Areas
Standard Abrasives™ Cartridge Roll Mandrels were designed to help users get inside diameters and holes to swiftly grind and finish. The mandrels enhance usability of Standard Abrasives™ Cartridge Rolls (sold separately) by being the tool attachment that links the cartridge roll to the power tool. Adding length to the cartridge roll helps it reach even further into those seemingly inaccessible nooks and crannies. The mandrel attaches to a rotary tool such as a die grinder or drill, and comes in different sizes to fit a variety of cartridge roll sizes.
Tips for Optimal Use
For safety, Standard Abrasives recommends that the mandrel pilot length used to drive a cartridge roll should measure at least 1/2 inch less than the overall length of the cartridge roll. If a cartridge roll measures 2 inches in overall length, for example, the corresponding mandrel should have a pilot length of no less than 1-1/2 inches.

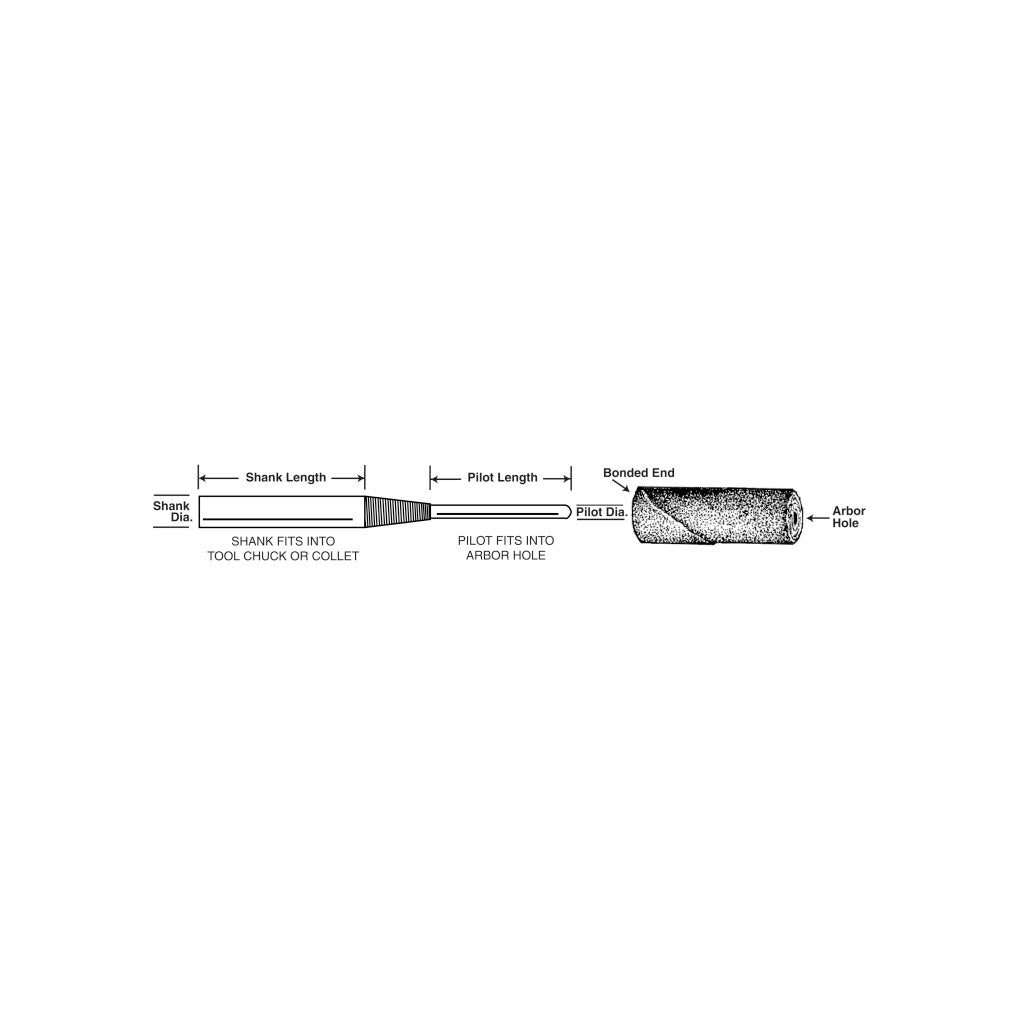

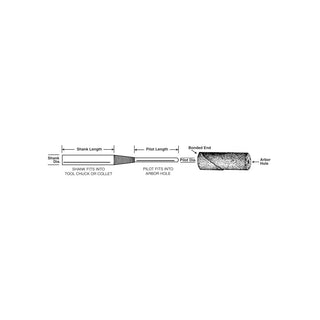

The versatile range of diameter sizes of Standard Abrasives™ Cartridge Roll Mandrels enables you to select the right mandrel for your power tool and cartridge roll. The mandrel consists of a shank and a pilot. The shank end fits into the tool chuck or collet while the pilot end fits into the arbor hole on the cartridge roll. Our mandrel was conveniently designed to fit all shapes of abrasive cartridge rolls, including straight, full tapered, half tapered, sidewall. It is made with plated steel for added durability. It may be used with a die grinder or random orbital sander.
