About this item

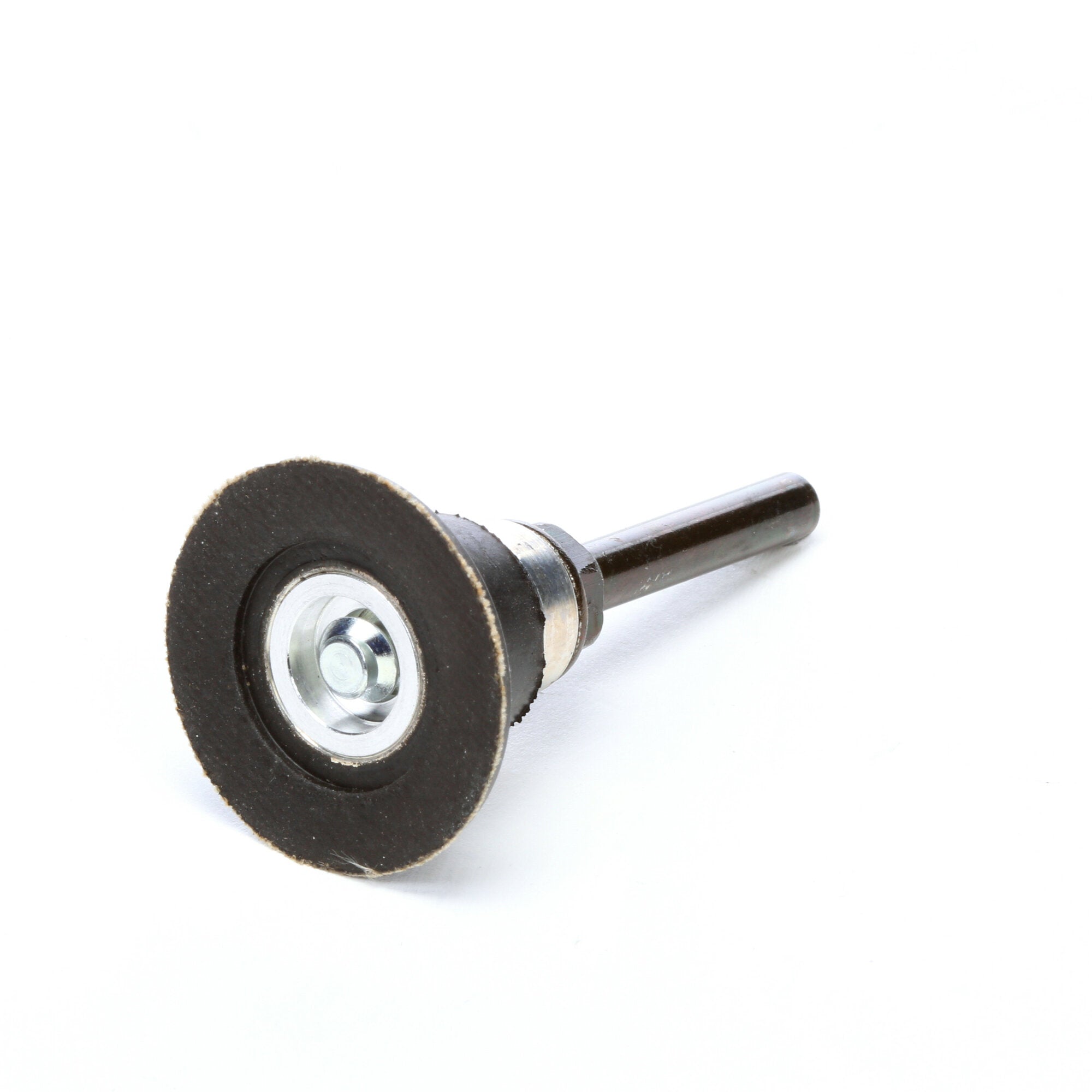

Standard Abrasives Quick Change TR Medium Holder Pad 546357, 2 in TA4
- 7000122107
- 3M
- Holders & Back-up Pads
Downloads
Brochures
Key points
- Smooth face helps with snag-free finishing and grinding of the workpiece
- Easy-on / easy-off attachment systems help enhance productivity
- Accommodates each of the three Standard Abrasives™ attachment types: TS, TR, TP
- Holder pads have built-in mandrel for ease of use or can attach to mandrels of varying lengths to help users access different areas of the workpiece
- Available in a range of densities, so the pad can be tailored to meet unique project needs
Description

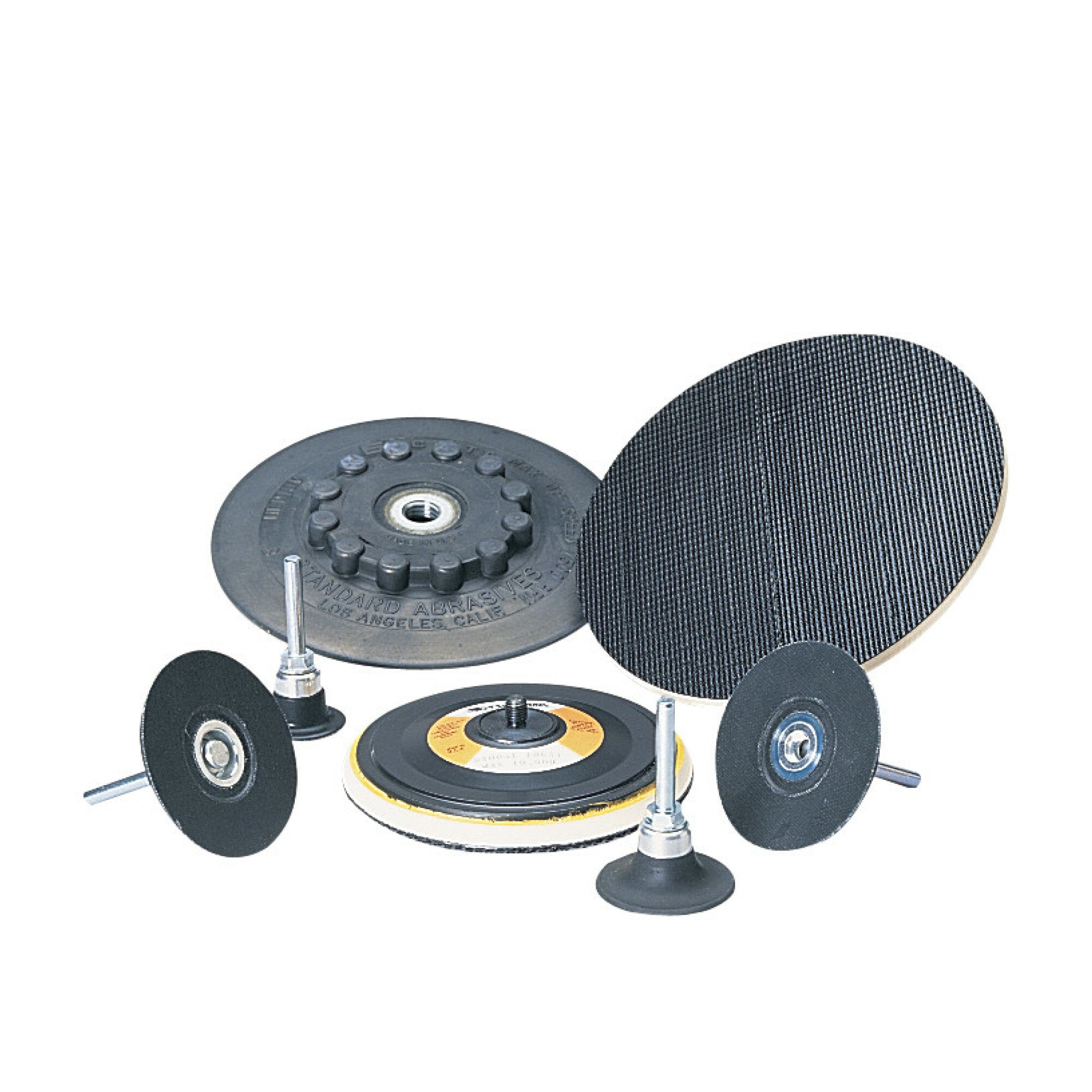

Standard Abrasives Quick Change Holder Pads, also called Disc Pads, allow you to quickly and easily change Standard Abrasives Quick Change Discs (sold separately), like sanding discs or resin fiber discs, during multi-step projects. Theyre available in a range of sizes and densities, so you can find the pad that best suits your grinding and finishing projects.Attachment Types: TS, TR, TP
Disc pads or holder pads serve as conduits between abrasive discs and tools; they’re valuable connectors that make for easier and speedier industrial processes. Standard Abrasives™ Quick Change Holder Pads come with one of three quick change attachment styles. Attachment styles include TS, TR and TP. TS is standard metal-to-metal attachment, TR is a 3M™ Roloc™ style nylon threaded male hub, and TP is a snap-on/snap-off nylon fastening hub. The mechanical attachments on the discs and pads enable easy swap out of discs with a speedy quarter turn.
Choosing a Mandrel
Our Standard Abrasives™ Quick Change Holder Pads are available with or without built-in mandrels. Some TS and TR holder pads come with an attached 1/4˝ diameter TA4 mandrel. Others come with an attached TA6 mandrel with a 6 mm diameter. TP disc holders come with TA4 mandrel attachments only. Disc holders are also available without mandrel attachments, so users can select a mandrel of a different length if it is better suited to their project needs. Holders without an attached mandrel have a 1/4-20 female thread that will pair with a 1/4-20 mandrel. Once the mandrel is attached, users can fasten the disc pad to a rotary tool or die grinder.
Smooth Running
All holder pads are hard-face pads. In other words, they are flat and even without texture. The smooth face of the holder pad prevents it from causing bumps or extrusions to surface on the abrasive disc.
Different densities signal varying levels of flexibility of the holder pad. Soft density holder pads are more pliable and responsive, so they’re a good fit for finer grade abrasives performing finishing and contouring. Medium grade is good for discs that do general purpose work. Firm density holder pads are more rigid to support coarser abrasives that perform heavy stock removal. Discs and holder pads work together to get the job done.
Altogether, Standard Abrasives™ Holder Pads allow for quick and easy disc attachment and removal, enhancing productivity and adding an extra level of efficiency and ease to your industrial applications.
The Standard Abrasives brand has supplied quality abrasives to the metalworking industry for over 50 years. Customers rely on our broad offering of high performance products including coated, bonded, and non-woven abrasive lines.
