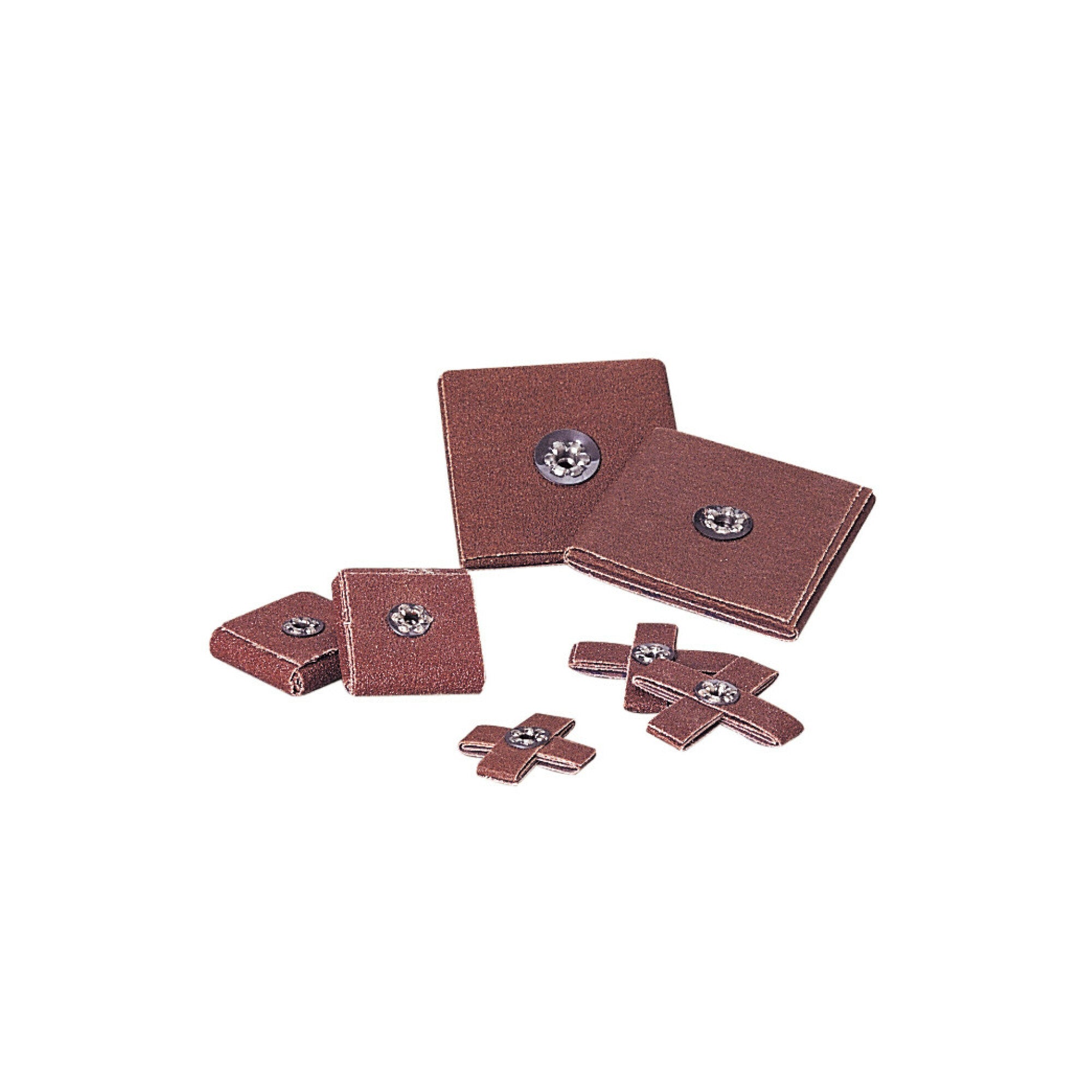

Standard Abrasives S/C Cross Pad 724346, 8 PLY, 2 in x 2 in x 1/2 in, 8-32, 120

by 3M
$169.99
100 per orderFlexible and easily conforms to the workpieceIdeal for deburring and polishing most radii, holes, recesses and cylinder wallsUseful for polishing bell-mouth pieces, drop forge dies, and other pieces with deep recessesResin bond system... Read more

Overview

Brand img

Standard Abrasives S/C Cross Pad 724346, 8 PLY, 2 in x 2 in x 1/2 in, 8-32, 120

100 per order

Flexible and easily conforms to the workpiece

Ideal for deburring and polishing most radii, holes, recesses and cylinder walls

Useful for polishing bell-mouth pieces, drop forge dies, and other pieces with deep recesses

Resin bond system provides good grain retention and life

Multi-ply laminated construction produces cushioned, chatter-free grinding

Silicon Carbide mineral produces a fine finish

Use with a Standard Abrasives™ Mandrel for Abrasive Pads (sold separately)

Our Standard Abrasives™ Silicon Carbide Cross Pad is a multi-purpose abrasive designed for fast results on non-ferrous metals and stainless steel for blending, deburring, polishing and finishing. The shape and flexibility of the cross pad enables access to holes, recesses, and cylinder walls. Moreover, space between the fingers of the pad helps operators see the workpiece during use.

Flexible Design, Multiple Uses

The distinctive design of the Standard Abrasives™ Silicon Carbide Cross Pad enhances its versatility – making it well suited for grinding in hard-to-reach areas, as well as producing a final shine and polish. Strips of abrasive material are folded over an eyelet and intersect to form a cross. As the pad spins inside pipes or tubes, the four spindles rotate to swiftly finish the workpiece. Spindles are springy and buoyant enough to accommodate uniquely shaped parts, without gouging or marring the surface, and the mineral leaves a consistent scratch pattern. Cross Pads are less aggressive than square pads and are generally used for metal finishing tasks. Their small shape makes them ideally suited to get inside tubes and any other internal diameters.

The Standard Abrasives™ Silicon Carbide Cross Pad is great for finishing and polishing inside and around sharp corners and extrusions, and the mineral cuts aggressively without compromising the geometry of the part. The pad is also good for blending radii and finishing bell-mouth pieces.

A Final Finish, Without the Chatter

The spindles on our Standard Abrasives™ Silicon Carbide Cross Pad are multi-ply, containing up to 16 layers of abrasive material. The higher the ply, or “thickness,” the more aggressive and durable the pad will be; choose these pads when you’re looking to deburr or grind. Lower ply abrasives tend to be more flexible and conform well to the substrate, so choose these pads when polishing or finishing. Altogether, the multi-thickness of the abrasive material acts as an extra cushion – a pillow-like shock absorber that won’t vibrate, skid or deflect along the surface. It reduces the likelihood of chatter, which tends to result from too much vibration and frequency between the abrasive, tool and workpiece.

Sharp, Fast Cut and Fine Finish

Silicon carbide is a very hard and sharp mineral commonly used for low-pressure applications such as paint prep and the final stages of whitewood sanding. While it may have a shorter life than aluminum oxide, it produces a finer finish and should be used where the best possible finish is desired.

Anatomy of a Cross Pad

The cross pad has a metal eyelet that attaches to a mandrel and may be used with a rotary tool. By changing mandrel length, the user may shorten or extend the pad’s reach. Standard Abrasives™ Cross Pads are manufactured from a variety of minerals, including Aluminum Oxide, Zirconia, Ceramic and Silicon Carbide (each sold separately). All minerals are securely anchored to the backing with a strong, heat-resistant resin bond. Combining cushion, flexibility and an aggressive cut, these well-rounded abrasive products offer outstanding versatility.

Quality Standard Abrasives™ Solutions for Industrial Applications

The Standard Abrasives™ brand has supplied quality abrasives to the metalworking industry for over 50 years. Customers rely on our broad offering of high performance products including coated, bonded, and non-woven abrasive lines.


Product Details

General Information
Manufacturer
3M
Part Number
7100105471
Product Type
Abrasives
