Syba SD-ADA40001 Compact Flash to SATA II Adapter Card with PCI Mounting Bracket

$20.00
Free shipping
This Syba SD-ADA40001 compact flash to SATA II adapter card with PCI mounting bracket allows you to connect a Compact Flash card to a host computer through a SATA data port that lets you use... Read more

Overview

Brand img

Syba SD-ADA40001 Compact Flash to SATA II Adapter Card with PCI Mounting Bracket

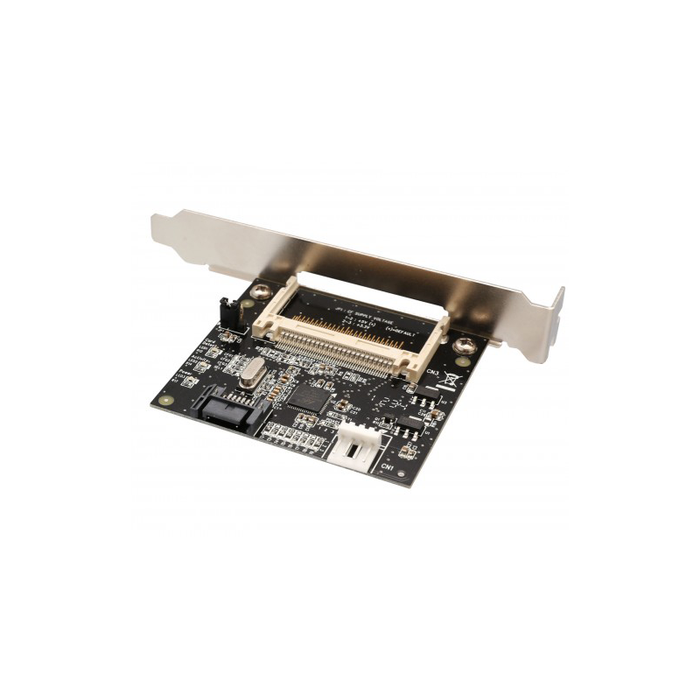

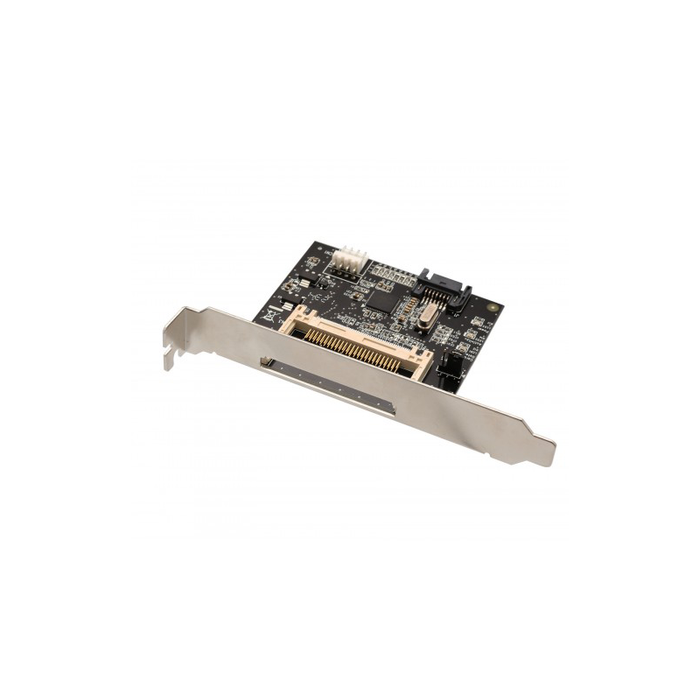

This Syba SD-ADA40001 compact flash to SATA II adapter card with PCI mounting bracket allows you to connect a Compact Flash card to a host computer through a SATA data port that lets you use solid state storage in place of a SATA hard disk drive. The adapter includes a PCI mounting bracket that lets you mount it in the PCI slot of the computer case providing easy access to the CF slot. Once the adapter is installed in the computer, the Compact Flash card can be used as bootable drive providing full read and write access to the CF card.

Product Details

General Information
Manufacturer
Syba
Part Number
SD-ADA40001
Product Type
Adapter
Technical Information
Adapter Type
Adapter Card
Connector on First End
SATA II
Connector on Second End
Compact Flash
Color
Black
Features
Supports SATA II (1.5Gbps and 3.0Gbps) Host Interface
Supports SATA Hot Swap (Does NOT Support Hot Swap on Compact Flash Interface)
Supports Compact Flash Type I & II and Micro-drive Form Factors
Compact Flash Interface Supports PIO Modes and Ultra-DMA Modes with Data Transfer Rate up to 150MBps (Depends on Compact Flash Card Speed)
Compact Flash Card Power Selected by Jumper Setting (+3.3V or +5V)
Power Input: DC +5V (Floppy Disk Drive Power Connector)
LED Indicators: Power-on, Card Detect, Disk Activity
Includes Standard Mounting Bracket for External Applications
Transparent to the Operating System and Does Not Require Software Driver
