Velleman ARD-T000190 Arduino TinkerKit Tilt Sensor Module

Original price $10.25 - Original price $10.25
Original price
$10.25
$10.25 - $10.25
Current price $10.25
Free shipping
The Tilt Sensor can detect when it is at an angle. Output: This module contains two contacts and a small metal ball. When the sensor is in its upright position, the ball bridges the two... Read more

Overview

Brand img

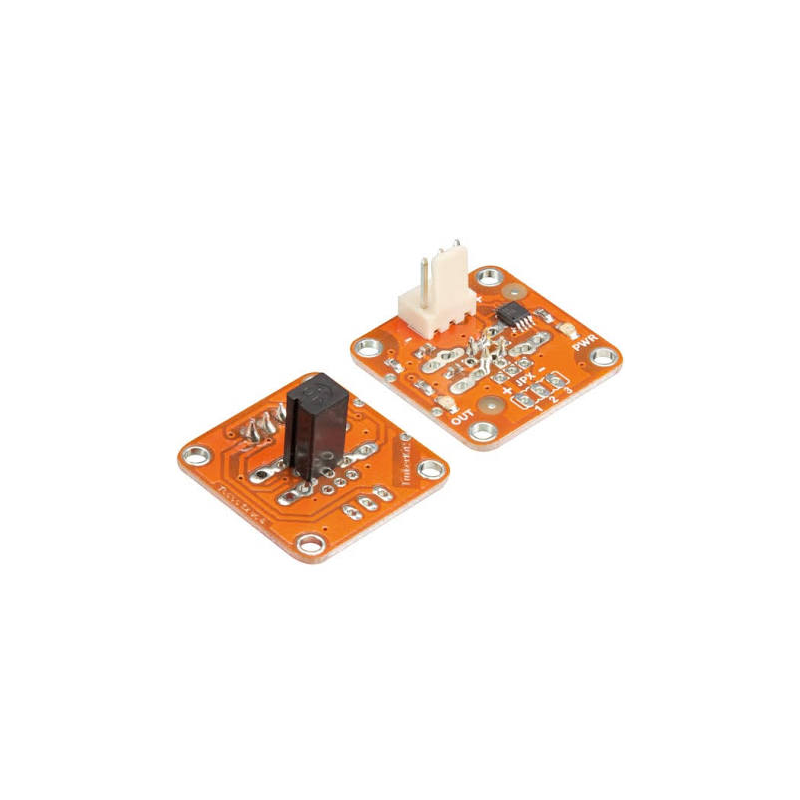

Velleman ARD-T000190 Arduino TinkerKit Tilt Sensor Module

The Tilt Sensor can detect when it is at an angle.

Output: This module contains two contacts and a small metal ball. When the sensor is in its upright position, the ball bridges the two contacts, completing the circuit. When the board is tilted, the ball moves, and the circuit opens. When upright, the module outputs 5V and when it is tilted, it outputs 0V. When connected to an input on the Arduino using the TinkerKit Shield, you can expect to read a value of 1023 when in its upright position and 0 when it is tilted.

Module description: this module features a Tilt Sensor, a signal amplifier, the standard TinkerKit 3pin connector, a green LED that signals that the module is correctly powered and a yellow LED that lights up when a connection is made (the sensor is upright).

This module is a SENSOR. The connector is an OUTPUT which must be connected to one of the INPUT connectors on the TinkerKit Shield.

Product Details

General Information
Manufacturer
Velleman
Part Number
ARD-T000190
Product Type
Arduino TinkerKit Tilt Sensor Module
