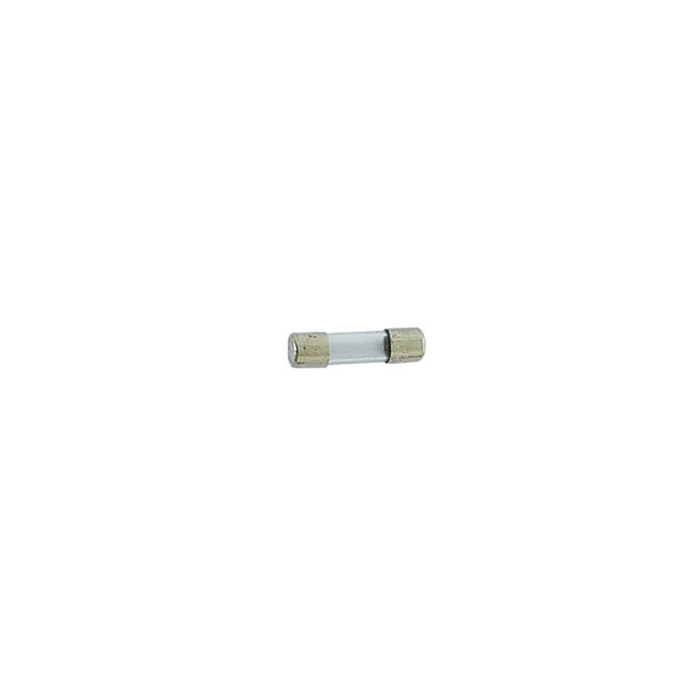

Velleman FF1N 5 x 20mm 1A Fast Acting Fuse

Features

Features

• "fast-acting"
• low breaking capacity

Specifications

• current: 1A
• packaging: 10pcs/box
• test specifications:
  • opening time:
    • 1.5 In: t>1H
    • 2.1 In: max. 30min.
    • 2.75 In: 50mS< t <2S
    • 4 In: 10mS< t <300mS
    • 10 In: max. 20mS
• packaging: 10 pcs/pack
• construction: glass cartridge, silvered caps
• specifications: IEC127, BS4265 and CEE4
• voltage rating: 250 VAC
• breaking capacity: 35 A
• endurance: cycling test as specified by IEC127 and BS4265
• ambient temperature: 5°F to 95°F according to IEC/BS, up to 158°F
