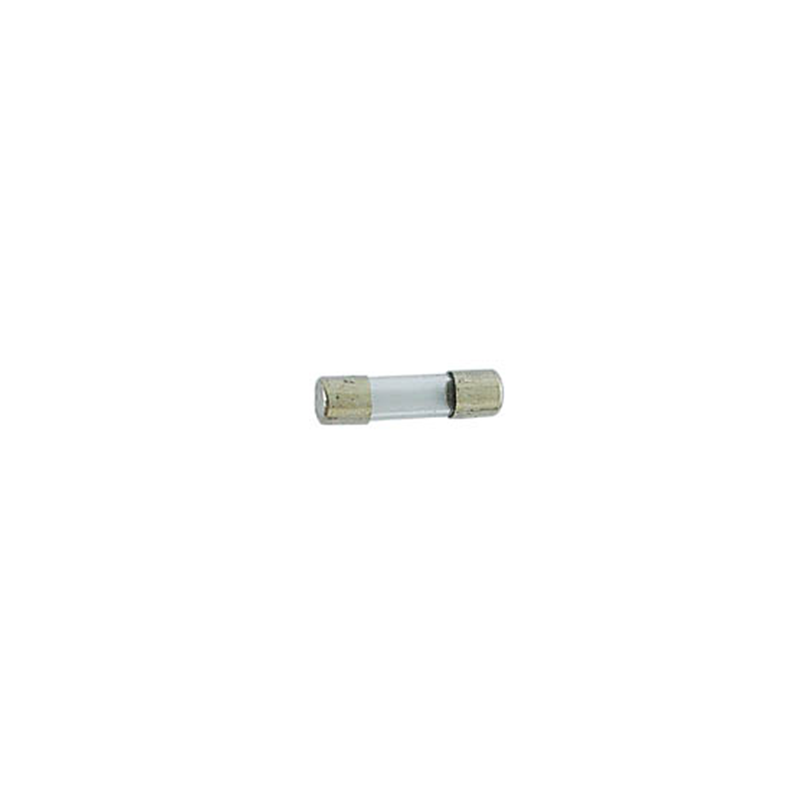

Velleman FU2N 5 x 20mm Slow Acting (slow blow) Glass Fuse, 10 pack, 2A

Features

Features

• "time lag"
• low breaking capacity

Specifications

• current: 2A
• packaging: 10pcs/box
• test specifications:
  • opening time:
    • 1.5 In: t>1H
    • 2.1 In: max. 2min.
    • 2.75 In: 600mS< t <10S
    • 4 In: 150mS< t <3S
    • 10 In: max. 300mS
• packaging: 10 pcs/pack
• construction: glass cartridge, silvered caps
• specifications: IEC127, BS4265 and CEE4
• voltage rating: 250 VAC
• breaking capacity: 35 A
• endurance: cycling test as specified by IEC127 and BS4265
• ambient temperature: 5°F to 95°F according to IEC/BS, up to 158°F
