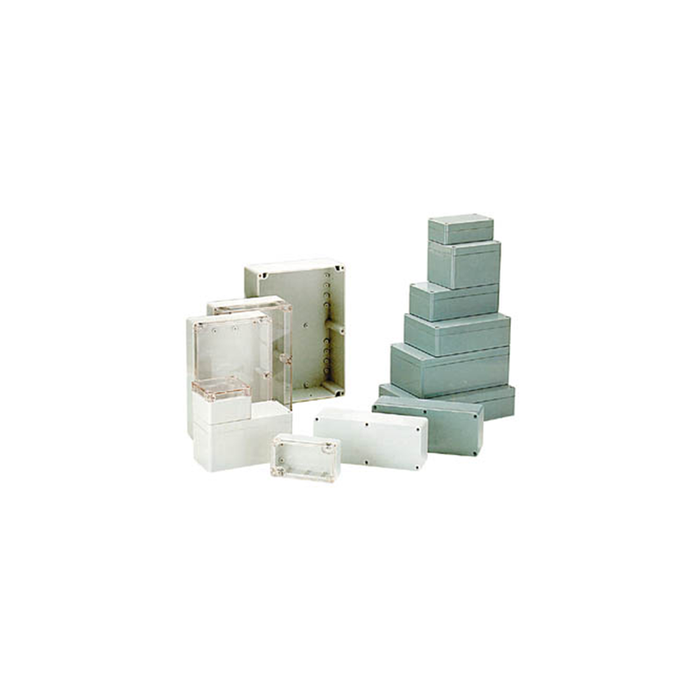

These enclosures consist of high-impact ABS (operating temperature : -4°F to +212°F).
The lid and the base equipped with a tongue and groove sealing system with a neoprene gasket. The mounting holes and the lid-fixing screws are outside the sealed, which prevents moisture and dust from entering the enclosure. Internal guide slots allow the vertical mounting of PCB assemblies.
Designed to meet IP65 of IEC529 and NAMA4 (dust- and hoseproof).
The bosses on the internal base allow the horizontal fixing of PCBs or the connection of terminals, etc. with threaded brass inserts.
- material: ABS
- dimensions: 6.7" x 4.8" x 3.1"
- color: dark gray
