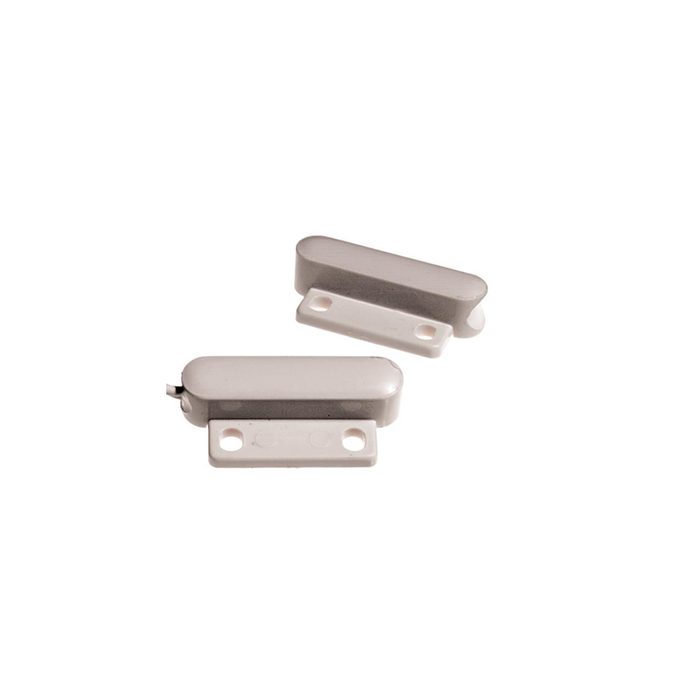

Velleman HAA28 MINI REED SWITCH

Velleman HAA28 MINI REED SWITCH

by Velleman
No reviews
$9.00 - $9.00
$9.00
$9.00 - $9.00
$9.00
Free shipping
Features housing: gray ABS miniature magnetic switch NC screw mounting Specifications contact: NC switching voltage (max): 1-50 V AC/DC switching current (max.): 100 mA contact capacity (max.): 5 W initial contact: 0.2 ohm max. carry... Read more

Overview

Velleman

Velleman HAA28 MINI REED SWITCH

Features

  • housing: gray ABS
  • miniature magnetic switch NC
  • screw mounting

Specifications

  • contact: NC
  • switching voltage (max): 1-50 V AC/DC
  • switching current (max.): 100 mA
  • contact capacity (max.): 5 W
  • initial contact: 0.2 ohm max.
  • carry current (max.): 100 mA
  • breakdown voltage: 150 VDC
  • insulation resistance: 100M ohm min.
  • switch cycle: 5 x 10 (7) @ 12 VDC, 50 mA
  • with leads (on switch): 12"
  • operating gap: max. 0.9"
  • dimensions: 1.3" x 0.6" x 0.3"

Product Details

General Information
Manufacturer
Velleman
Part Number
HAA28
Product Type
Reed Swtich
