Velleman KA02 Audio Shield for Arduino Kit

$19.99
If you need to add an audio message to your Arduino® Uno™ project then the Velleman KA02 Audio Shield is the kit to build. Record your message with the on board microphone or use the... Read more

Overview

Brand img

Velleman KA02 Audio Shield for Arduino Kit

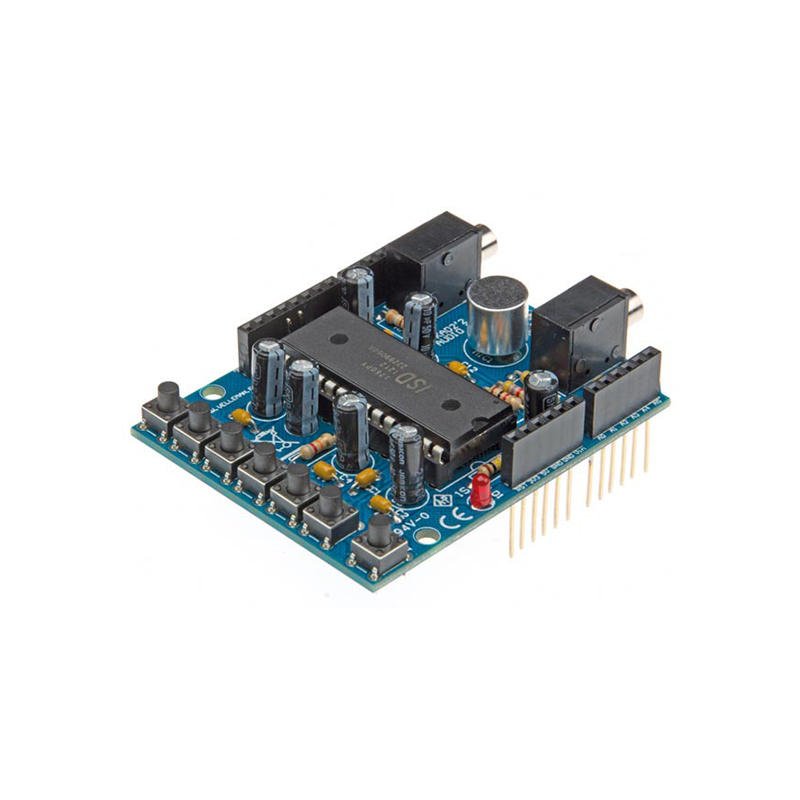

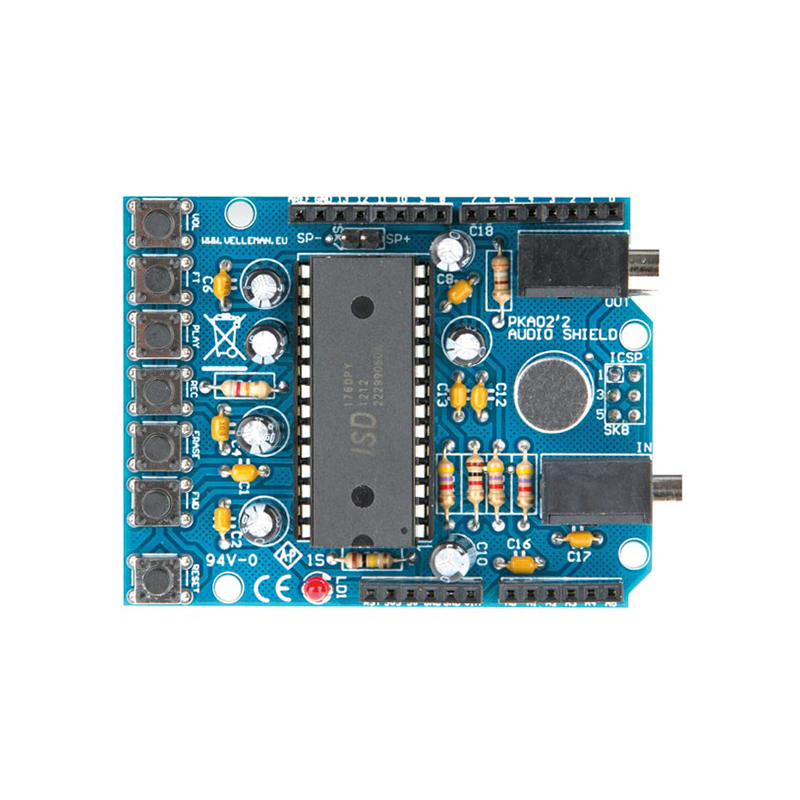

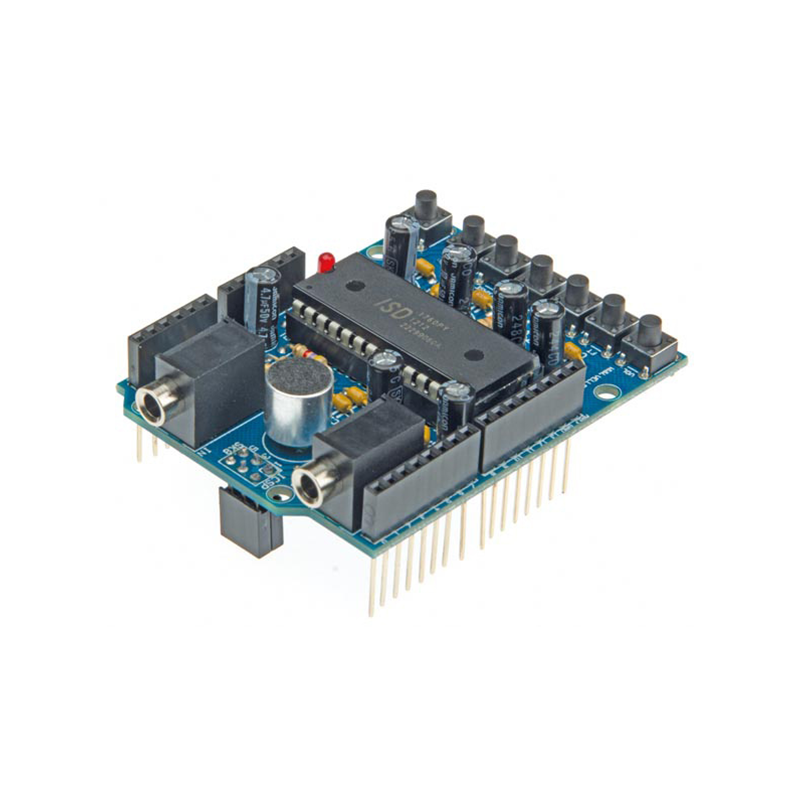

If you need to add an audio message to your Arduino® Uno™ project then the Velleman KA02 Audio Shield is the kit to build. Record your message with the on board microphone or use the line input. You get 60 seconds of recording time and can playback your recording through a speaker or through the line output. Use the on board push-buttons for REC, PLAY, FWD, ERASE, VOL, RESET and FEEDTROUGH or program the actions in your sketch. The Velleman KA02 circuit is based on the ISD1760PY integrated circuit. There is a downloadable example sketch and library to get you started writing your own sketches. The KA02's ICSP pins on the UNO™ are used as a serial connection to the shield to free up I/O pins. Also available in a mounted module version VMA02.

Product Details

General Information
Manufacturer
Velleman
Part Number
KA02
Product Type
DIY Electronic Kit
Miscellaneous
Skill Level
Rookie
Required Skills
Soldering
Features
60 second recording time
Start playback, record via on-board buttons or via Arduino UNO
Playback via a speaker or a line output
Downloadable sample sketch and library

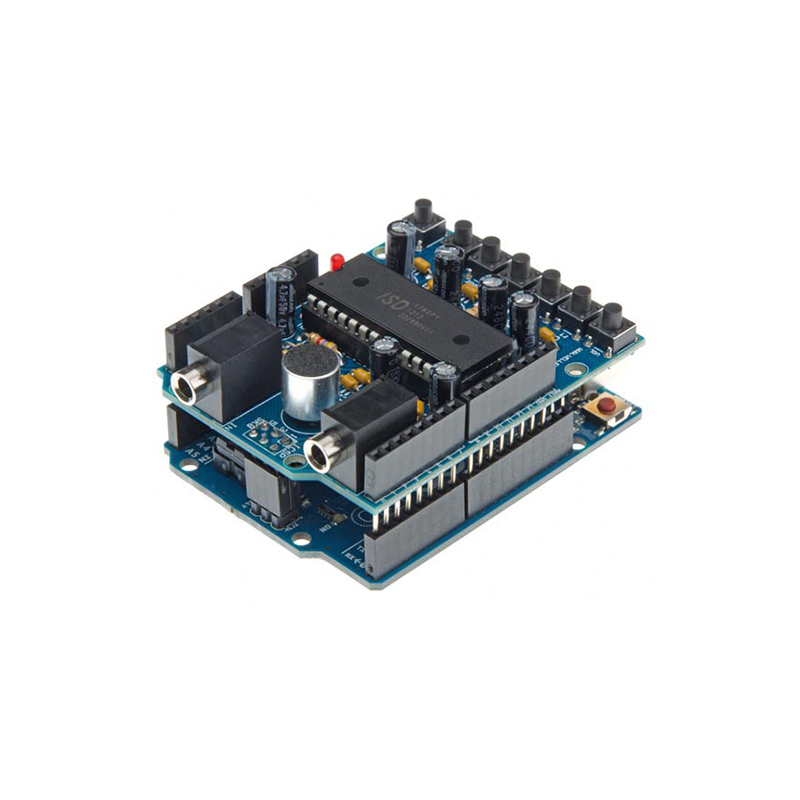

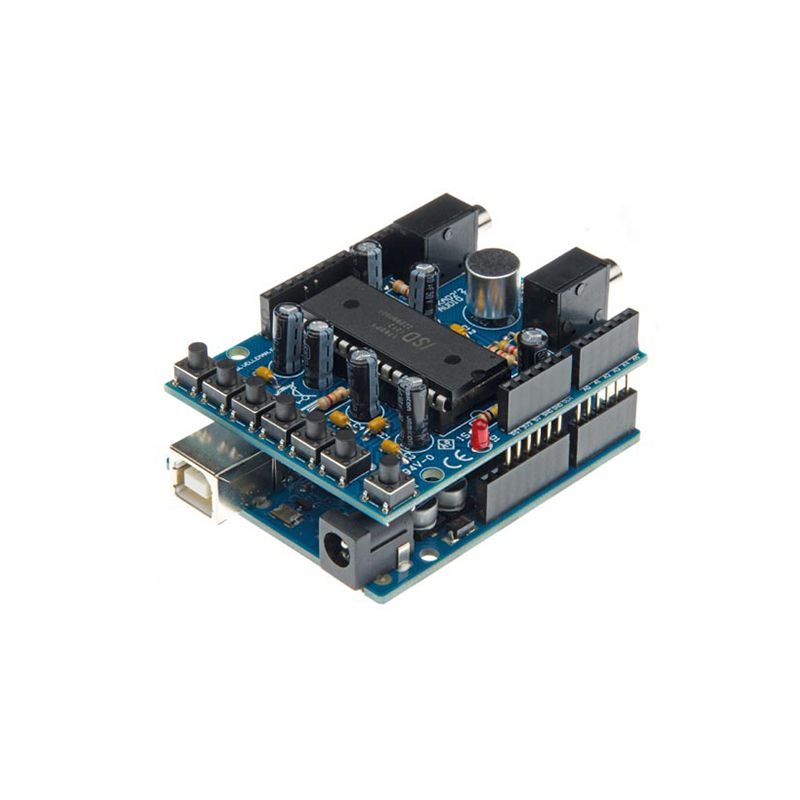

Stackable design: the shield can be stacked with other shields
Large user community
Requires 1 Arduino UNO (not included)
Specifications
Audio sample frequency: 8 kHz
Uses pin 10 on an Arduino UNO™ board as a Chip Select
Sses the ICSP pins on an Arduino as a serial connection to the shield to free up I/O pins
Memory write up to 100.000 X
Dimensions: 71 x 53mm / 2.79 x 2.08"'
Item Weight
3 ounces
