Velleman KA03 Motor & Power Shield for Arduino Kit

Velleman KA03 Motor & Power Shield for Arduino Kit

by Velleman
No reviews
$18.99 - $18.99
$18.99
$18.99 - $18.99
$18.99
Add solenoids, dc motors or a stepper motor to your Arduino® Uno™ projects with the Velleman KA03 Motor & Power Shield kit. The KA03 DIY shield kit circuit is based on the L298P dual full... Read more

Overview

Velleman

Velleman KA03 Motor & Power Shield for Arduino Kit

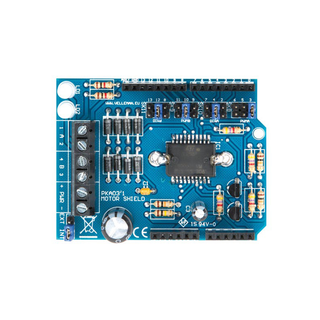

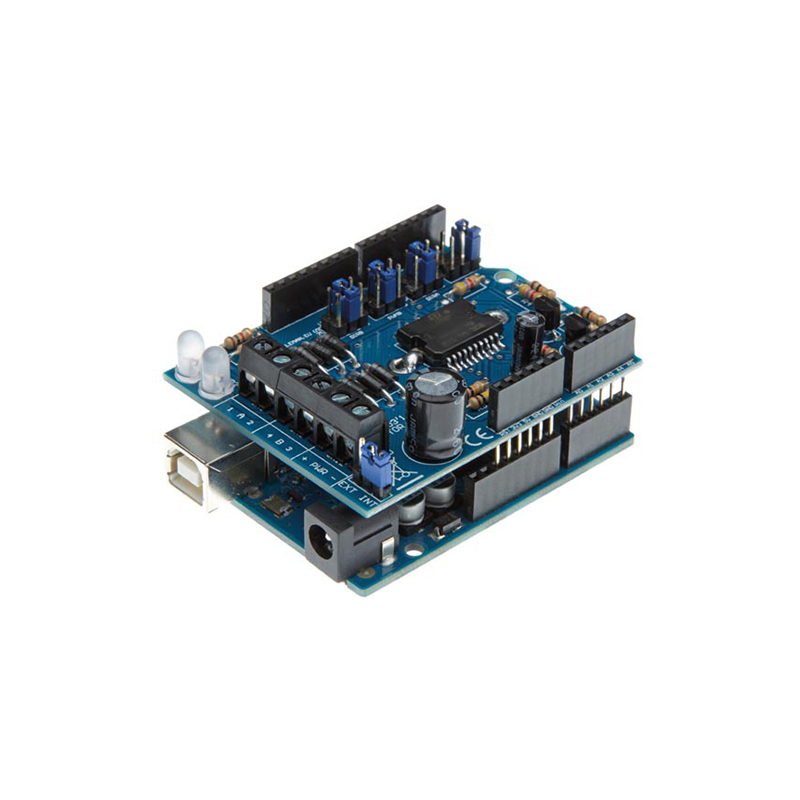

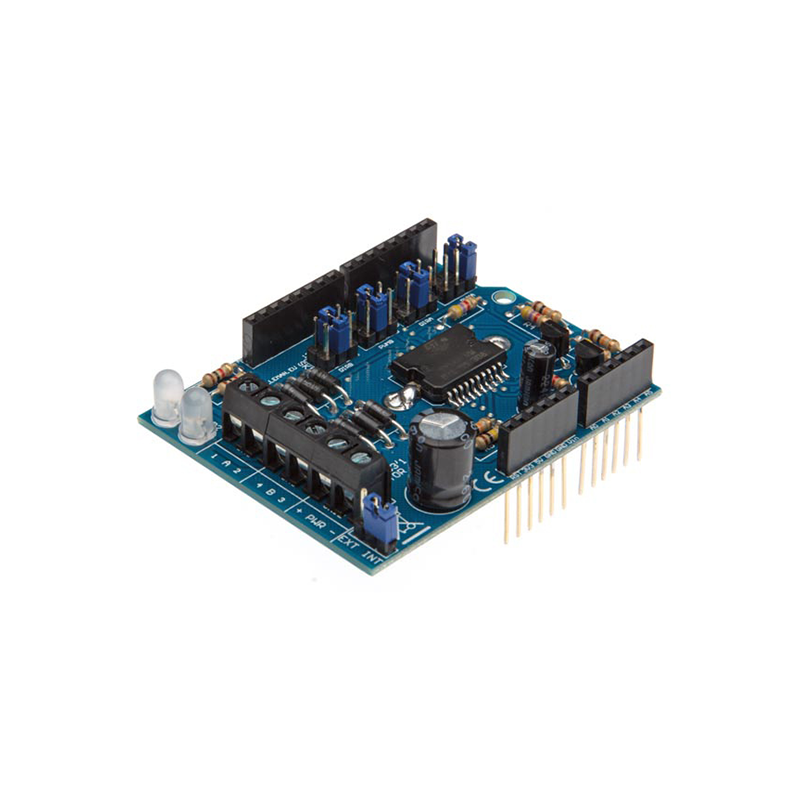

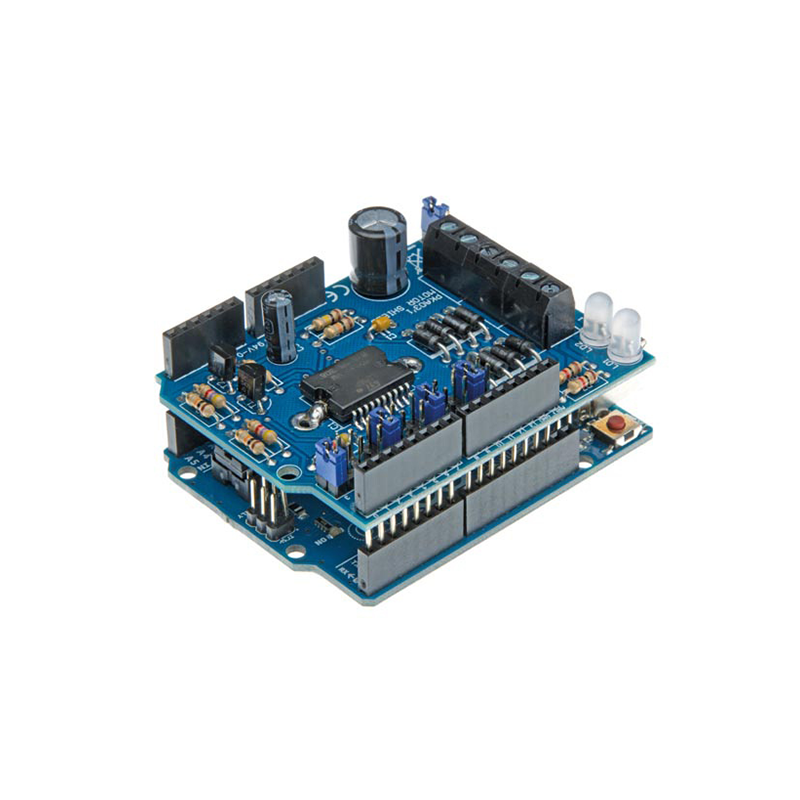

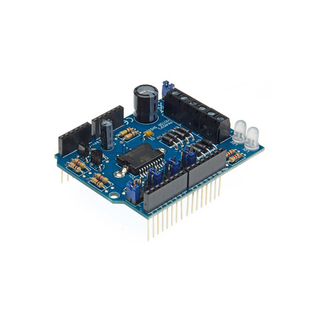

Add solenoids, dc motors or a stepper motor to your Arduino® Uno™ projects with the Velleman KA03 Motor & Power Shield kit. The KA03 DIY shield kit circuit is based on the L298P dual full bridge driver IC and has 2 channels so you can power 2 dc motors or 1 stepper motor. You can choose between external or internal power input depending on your project needs and the pins used on the Uno™ board are selectable to allow for stacking shields. Sample code is available for download to get you started with this DIY shield. Available in mounted module VMA03.

Product Details

General Information
Manufacturer
Velleman
Part Number
KA03
Product Type
DIY Electronic Kit
California Residents
Proposition 65 Warning
Miscellaneous
Skill Level
Expert
Required Skills
Soldering
Features
2 channels
Choose between an external or internal (Vin) power supply
Based on the dual full bridge driver L298P
Downloadable sample sketch
Stackable design: the shield can be stacked with other shields
Large user community
Requires 1 Arduino UNO (not included)
Specifications
2.5 A (max.) output current (each channel)
50 V (max.) external power supply input
Used pins on an Arduino UNO board can be selected to accommodate for other stacked shields
Dimensions: 68 x 53mm / 2.67 x 2.08"
Item Weight
3 ounces
