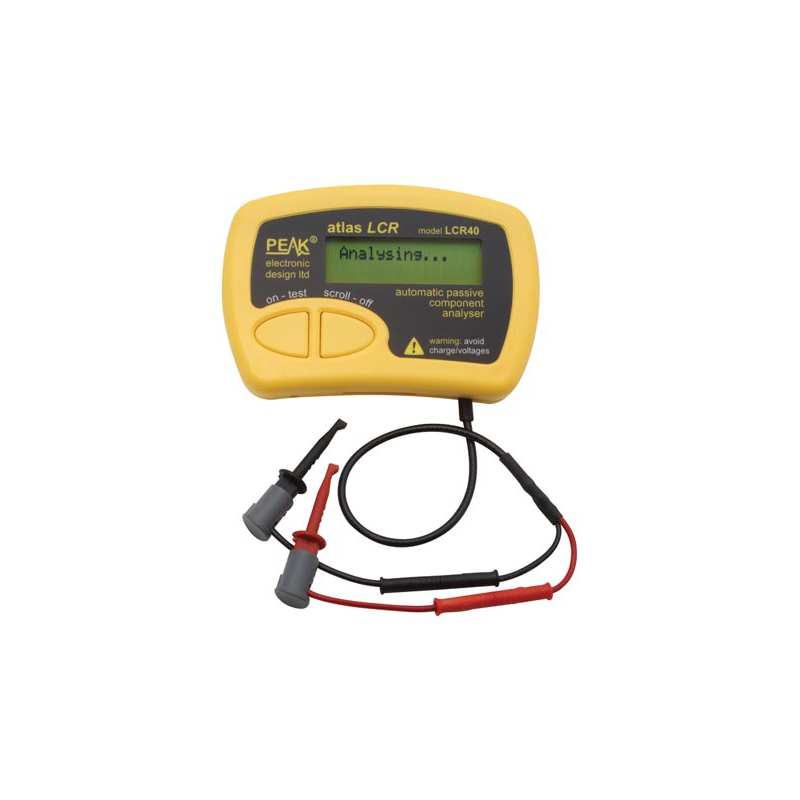

Velleman LCR40 Automatic Passive Component Analyzer

Description

Features

• automatic component identification
• automatic test frequency selection (DC, 1kHz, 15kHz and
  200kHz)
• delayed or instant analysis (for hands free operation)
• auto power-off
• probe and test lead compensation
• interchangeable probe sets
• automatic ranging and scaling
• 1% basic accuracy for resistors
• 1.5% basic accuracy for inductors and capacitors

Specifications

• Specification Summary at 20°C (68°F) unless otherwise specified
• resistance:
  • range: 1Ohm ~ 2MOhm
  • resolution: 0.3Ohm
  • accuracy: ±1.0%±1.2Ohm
• capacitance :
  • range: 0.5pF ~ 10000µF
  • resolution: 0.2pF
  • accuracy: ±1.5%±1.0pF
• inductance:
  • range: 1µH ~ 10H
  • resolution: 0.4µH
  • accuracy: ±1.5%±1.6µH
• peak test voltage across O/C: -1.05V ~ +1.05V
• peak test current into short circuit: -3.25mA ~ +3.25mA
• test frequency accuracy: -1.5% ~ +1.5%
• sine purity: -60dB 3rd harmonic
• operating temperature range: 10°C ~ 40°C (50F ~ 104F)
• battery operating voltage: 8.5V ~ 13V
• Weight per product (nett): 0.098kg (3.5oz)
• Dimensions per product : 103 x 70 x 20 mm (4.1" x 2.8" x 0.8")
