Velleman MS12-R Micro Switch 12A Long Lever with Roller

Original price $6.30 - Original price $6.30
Original price
$6.30
$6.30 - $6.30
Current price $6.30
Free shipping
Features long lever with roller Specifications operating force: 60g contact resistance: initially max. 15mohm insulation resistance: min. 100Mohm (at 500V DC) dielectric strength: 1000V AC for 1 minute mechanical life: min. 1000000 operations electrical life:... Read more

Overview

Brand img

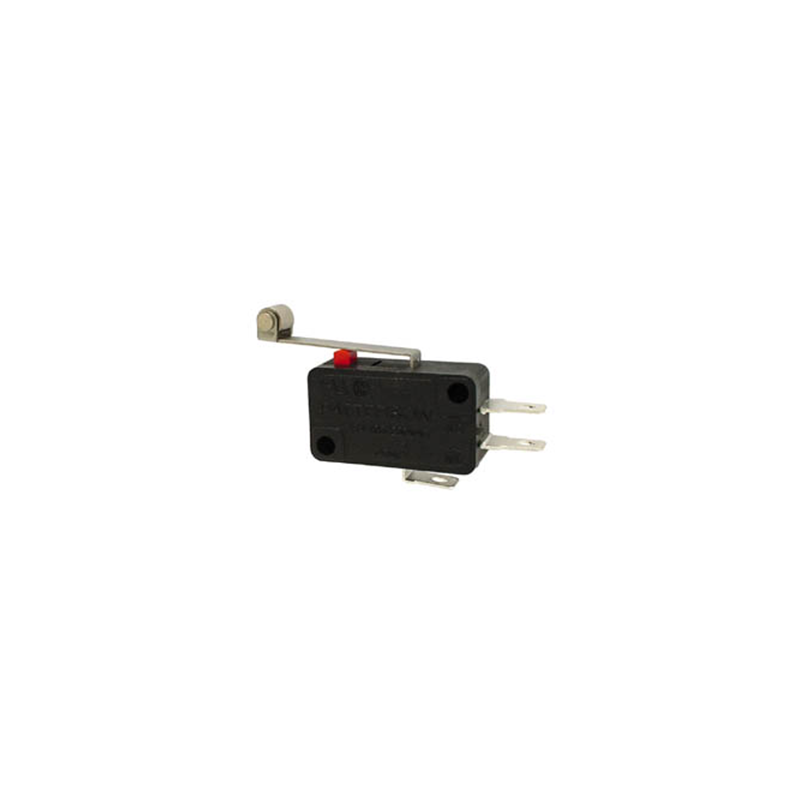

Velleman MS12-R Micro Switch 12A Long Lever with Roller

Features

  • long lever with roller

Specifications

  • operating force: 60g
  • contact resistance: initially max. 15mohm
  • insulation resistance: min. 100Mohm (at 500V DC)
  • dielectric strength: 1000V AC for 1 minute
  • mechanical life: min. 1000000 operations
  • electrical life: min. 100000 operations (full load)
  • dimensions: 0.63" x 1.09" x 0.41"
  • ratings: 12A / 125V AC, 6A / 250V AC
  • return force: 7g

Product Details

General Information
Manufacturer
Velleman
Part Number
MS12-R
Product Type
Switch
