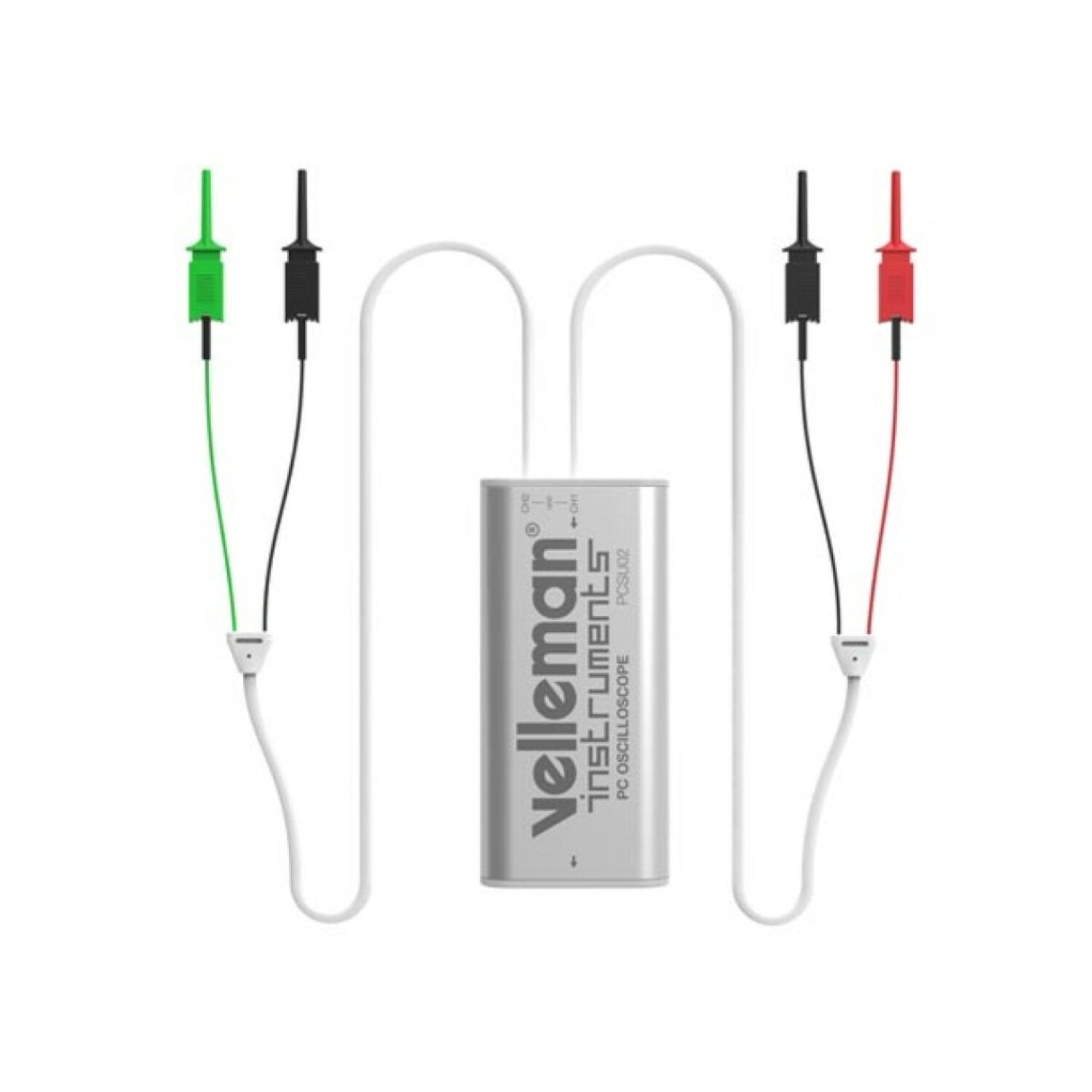

Velleman PCSU02 Mini PC oscilloscope, 2 channels, with USB connection

Velleman

PCSU02

Mini PC oscilloscope

White , Grey

85 mm

40 mm

Compact: The miniscope is easy to carry and takes up little space. This makes it suitable for use in both professional and hobby settings.

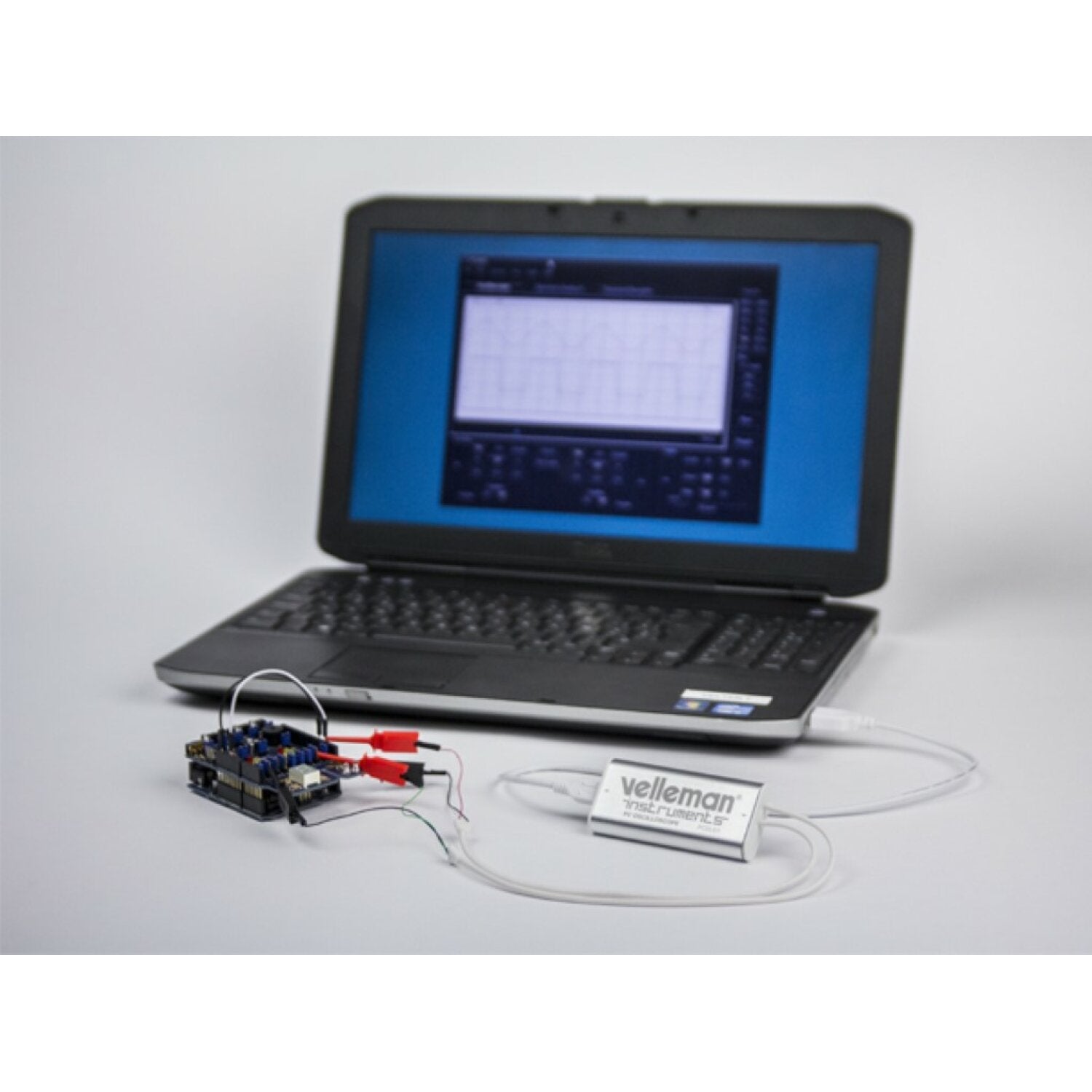

USB connection: The oscilloscope can be connected directly to a PC via a USB port. This makes it easy to connect and operate the oscilloscope using the supplied software.
Easy-to-use software: The oscilloscope's included software is easy to use and intuitive.
2-Channel Measurement: Two separate channels allow you to simultaneously measure two different signals. This is useful when comparing signals or analyzing different aspects of a single signal, such as the input and output of a circuit.
Versatile: The oscilloscope can convert invisible electrical signals into visible images, which is useful for studying the changing process of various electrical phenomena.
Oscilloscope Specifications
Bandwidth: DC to 2 x 500 kHz ± 3 dB
Input Impedance: 100 kΩ / 20 pF
Maximum Input Voltage: 30 V (AC + DC)
Time Base: 5 µs to 500 ms / Division
Input Range: 100 mV to 5 V / Division
Input Sensitivity: 3 mV Display Resolution
Displays: True RMS, dBV, dBm, ptp, Duty Cycle, Frequency...
Recording Duration: 2 x 1k Samples
Sampling Rate: 50 Hz to 2.5 MHz
'Sampling Summary' Function
Automatic Configuration Function
Pre-Trigger Function : 50 µs/div ... 500 ms/div
Persistence Modes : Color Gradient, Variable Persistence, and Infinite Persistence

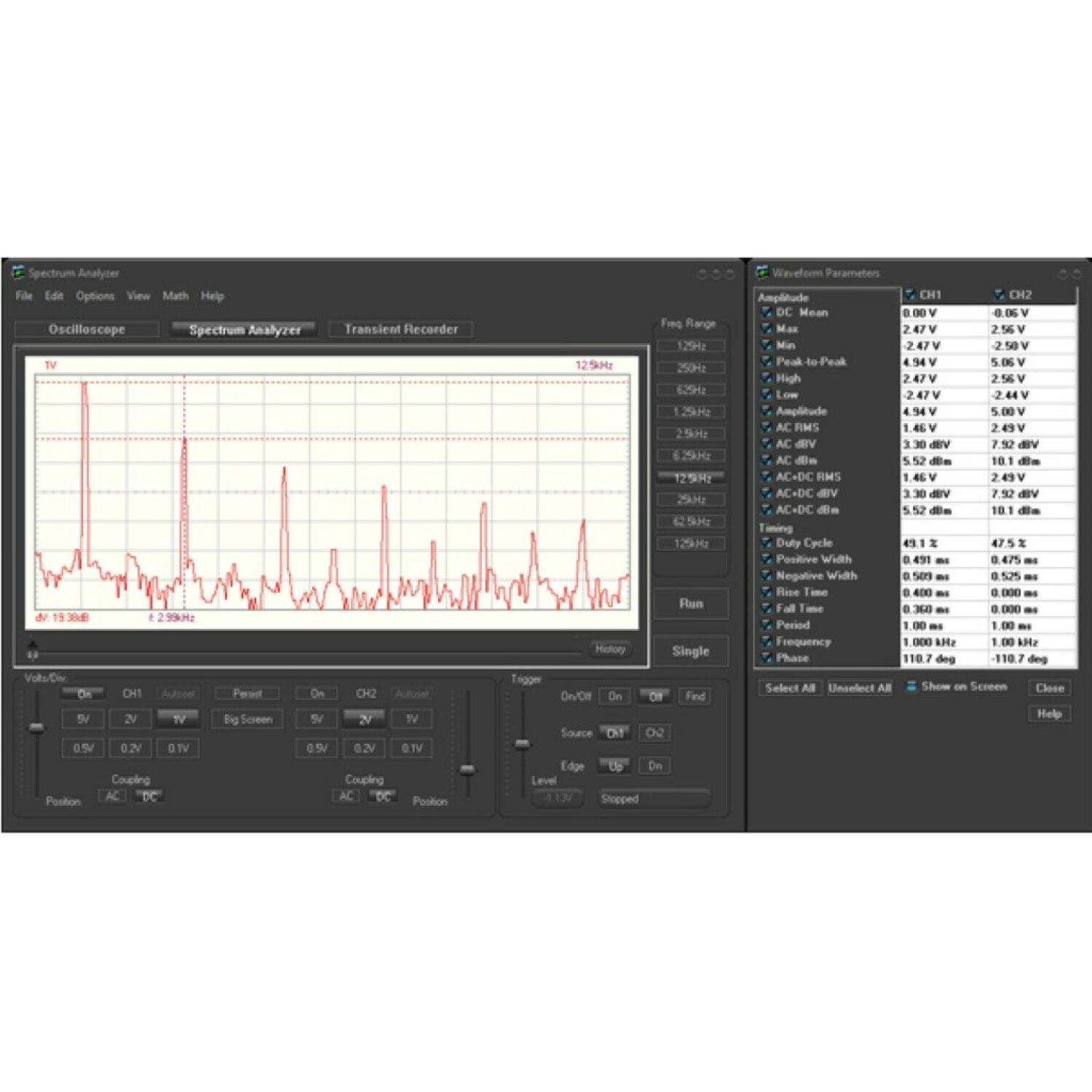

Spectrum Analyzer Specifications
Frequency range: 0 … 125 Hz to 125 kHz
FFT (Fast Fourier Transform) Operating Principle
FFT Resolution: 512 Lines

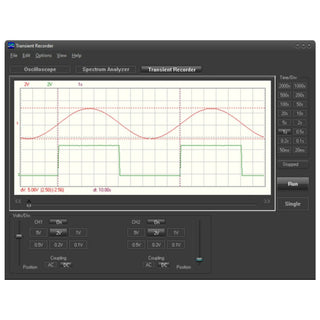

Transient Recorder Specifications
Time scale: from 20 ms/div to 2000 s/div
Maximum recording time: 9.4 hours / screen
Automatic data storage
Recording and viewing screens
Maximum number of samples: 100/s
Minimum number of samples: 1 sample / 20 s
Markers for : Amplitude/voltage, Frequency/time
Sampling resolution : 8 bits
