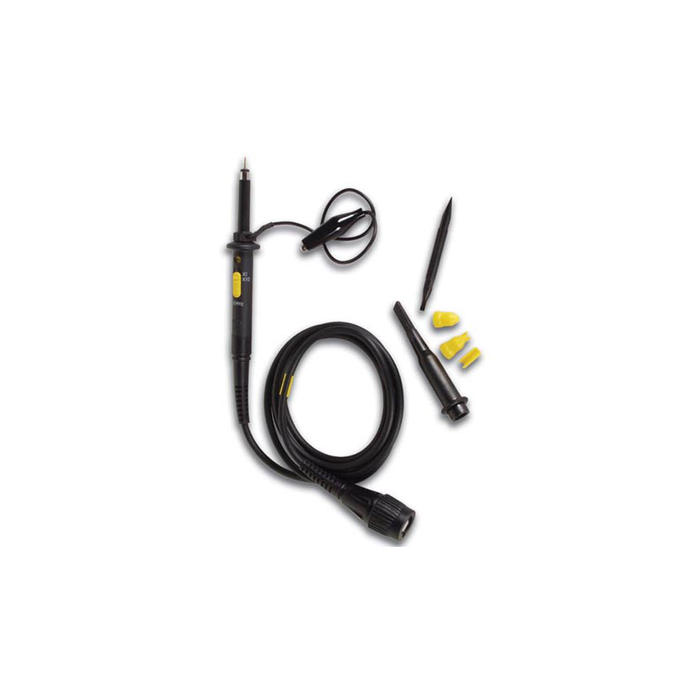

Velleman PROBE60S 60 MHz Insulated Oscilloscope Probe

Features

Features

• complete probe set
• safety: conform with IEC-1010 cat II
• attenuation: 1:1 or 1:10

Specifications

• position x1:
  • attenuation: 1:1
  • bandwidth: DC to 15 MHz
  • rise time: 23.3 ns
  • input resistance: 1 Mohm (input resistance scope)
  • input capacitance: 46 pF + cap. scope
  • working voltage: 600 VDC incl. peak AC derating with frequency
  • position REF: -
• position x10:
  • attenuation: 1:10
  • bandwidth: DC to 60 MHz
  • rise time: 5.8 ns
  • input resistance: 10 Mohm (if scope input = 1 Mohm)
  • input capacitance: ± 15 pF
  • working voltage: 600 VDC incl. peak AC derating with frequency
  • compensation range: 10 to 50 pF
• cable length: 4 ft
• remarks: with insulated BNC connector
