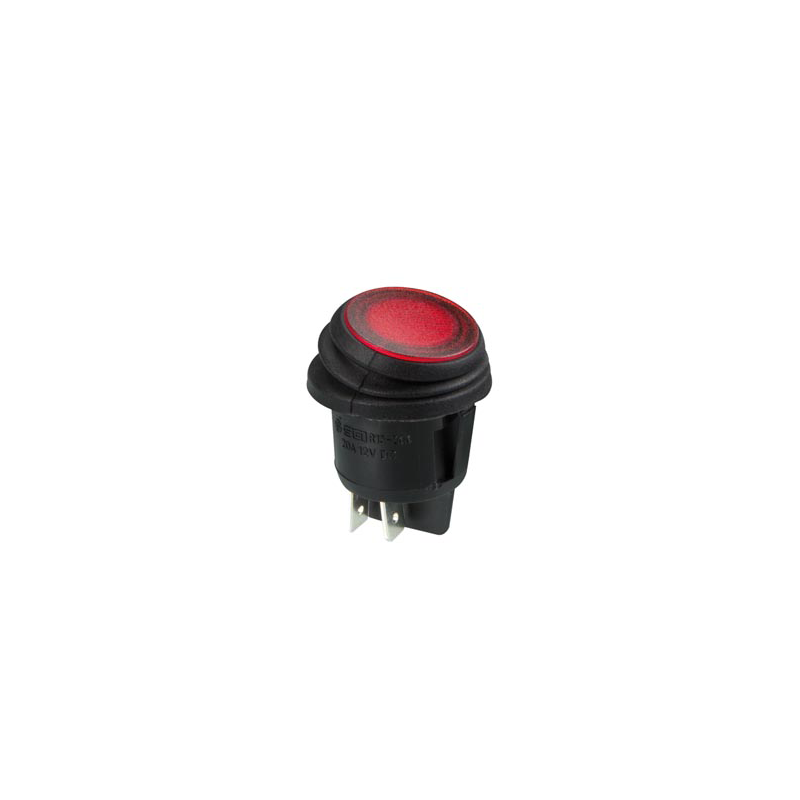

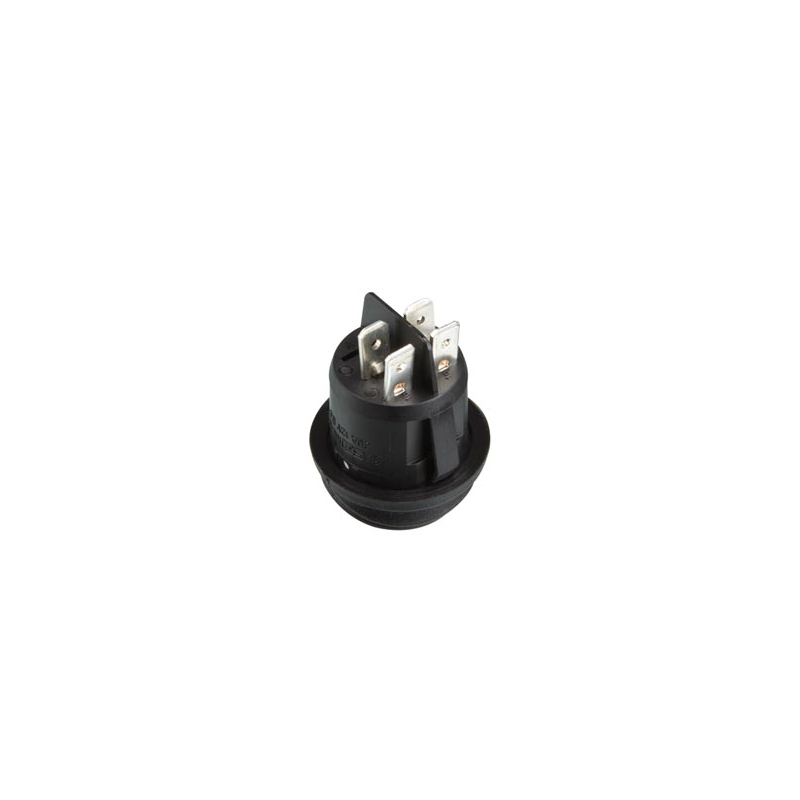

Velleman R13244BR/LED 12V Red LED Illuminated Switch

Features

Specifications

• illumination: Red LED (12V DC)
• contact rating: 16A/ 12Vdc
• electrical life: 20000 cycles
• mechanical life: 50000 cycles
• contact resistance: 50 mOhm
• insulation resistance: min. 100 MOhm at 500 VDC
• dielectric strength: 1500 VAC / 1 minute
• materials:
  • housing: 66 nylon (UL94V-2)
  • actuator: 66 nylon (UL94V-2)
  • movable contacts: copper, silver-plated
  • stationary contacts: copper, silver-plated
  • terminals: copper, silver-plated
  • contact: spring-loaded
