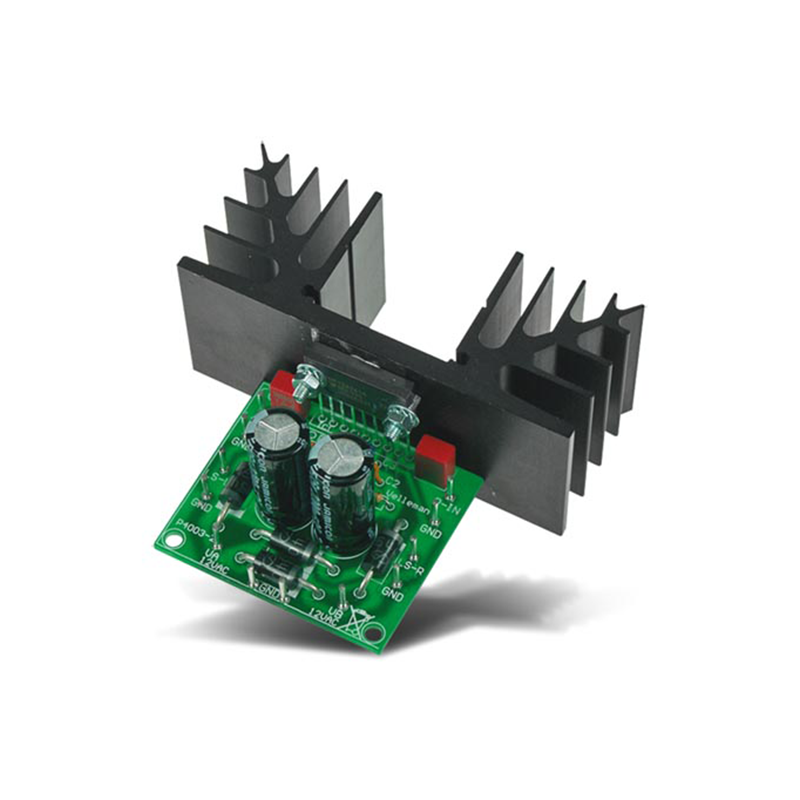

Velleman VM113 2x30w Audio Power Amplifier Module

Velleman VM113 2x30w Audio Power Amplifier Module

by Velleman
No reviews
$27.44 - $27.44
$27.44
$27.44 - $27.44
$27.44
Free shipping
Extended Handling May Be Required
This small amplifier is constructed with the tda2616 ic, with a maximum supply capability of 2 x 15wrms (4ohm) of 2 x 10wrms (8ohm). the ic is thermally and short-circuit protected. additional rectifier and smoothing... Read more

Overview

Velleman

Velleman VM113 2x30w Audio Power Amplifier Module

This small amplifier is constructed with the tda2616 ic, with a maximum supply capability of 2 x 15wrms (4ohm) of 2 x 10wrms (8ohm). the ic is thermally and short-circuit protected. additional rectifier and smoothing filter are unnecessary, as alternating current can be directly connected to the unit.

Product Details

General Information
Manufacturer
Velleman
Part Number
VM113
Product Type
DIY Electronic Project
California Residents
Proposition 65 Warning
Miscellaneous
Specifications
Music power output: 2 x 30W / 4ohm
RMS output: 2 x 15Wrms / 4ohm or 2 x 10Wrms / 8ohm
Total harmonic distortion: 0.07% (1W / 1kHz)
Channel separation: 70dB
Frequency response: 7Hz to 60kHz (-3dB)
Signal-to-noise ratio: 98dB (A weighted)
Input sensitivity: 300mV / 150Kohm
Transient suppression on/off switch
Overload and short-circuit protection: max. 1h
Supply voltage: 2 x 12V AC / 2A (50W transfo recommended)
Dimensions: 2.8" x 2.0"
Item Weight
4 ounces
