Velleman VM141 Start Stop Timer (1s – 60h)

No reviews
Original price $19.99 - Original price $19.99
Original price
$19.99
$19.99 - $19.99
Current price $19.99
Need your fans and lights to run for a preset time then stop? With it's wide and easy-to-set timing range, the Velleman VM141 helps you set this up. The VM141 has on-board start and stop... Read more

Overview

Velleman

Velleman VM141 Start Stop Timer (1s – 60h)

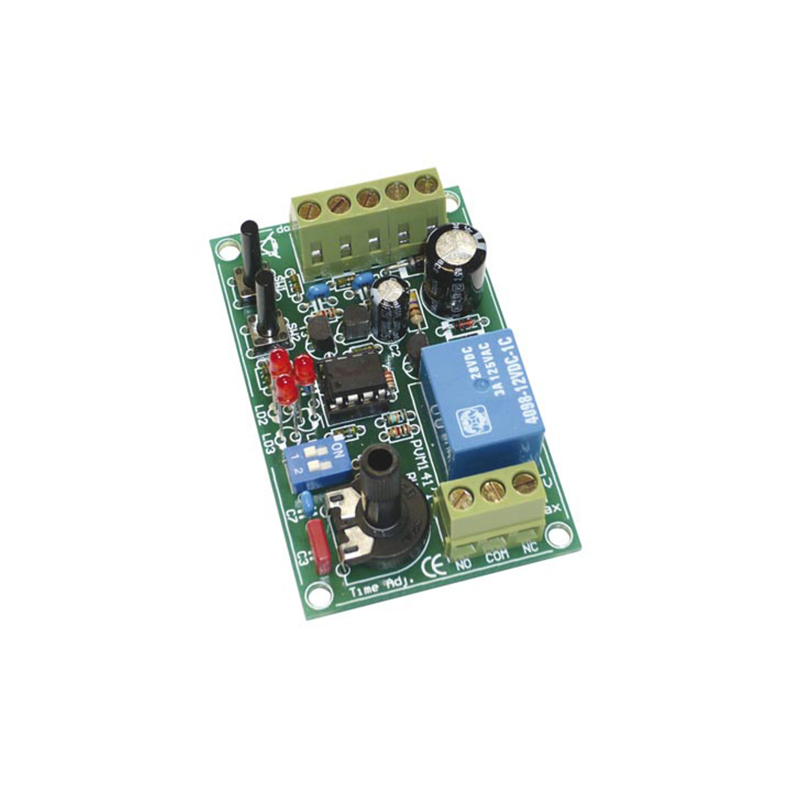

Need your fans and lights to run for a preset time then stop? With it's wide and easy-to-set timing range, the Velleman VM141 helps you set this up. The VM141 has on-board start and stop buttons and, for more convenience, there are on board connectors to connect your external start and stop buttons. The three LEDs will let you know when the VM141 is going through its timing cycle. Since the this unit is non-retriggerable, pressing the start button over an over will not have any effect on the timer. The debounce buffered inputs will stop false triggers. The NO (Normally Open) / NC (Normally Closed) relay can operate 24 Volts AC or DC up to 3 Amps.

Product Details

General Information
Manufacturer
Velleman
Part Number
VM141
Product Type
DIY Electronic Project
California Residents
Miscellaneous
Features
Wide timing range
Easy time setting
LED animation during operation
On-board START-STOP buttons
Non retriggerable
Power-on trigger is possible
Debounced buffered inputs avoid false triggering
Compact size
Front panel mountable
Specifications
Adjustable delay: 1s - 60h
Power supply: 12VDC / 100mA
NO/NC relay: 24VAC/DC 3A max.
Dimensions: 2.8 x 1.8 x 0.8"
Item Weight
3 ounces
