Velleman VM142 Mini PIC-PLC Application Module

$44.99
Have you ever want to start programming PIC (Programmable Interface Control) but don’t want to design and make the supporting circuit? The Velleman VM142 to the rescue! This Velleman module makes programming a bit easier... Read more

Overview

Brand img

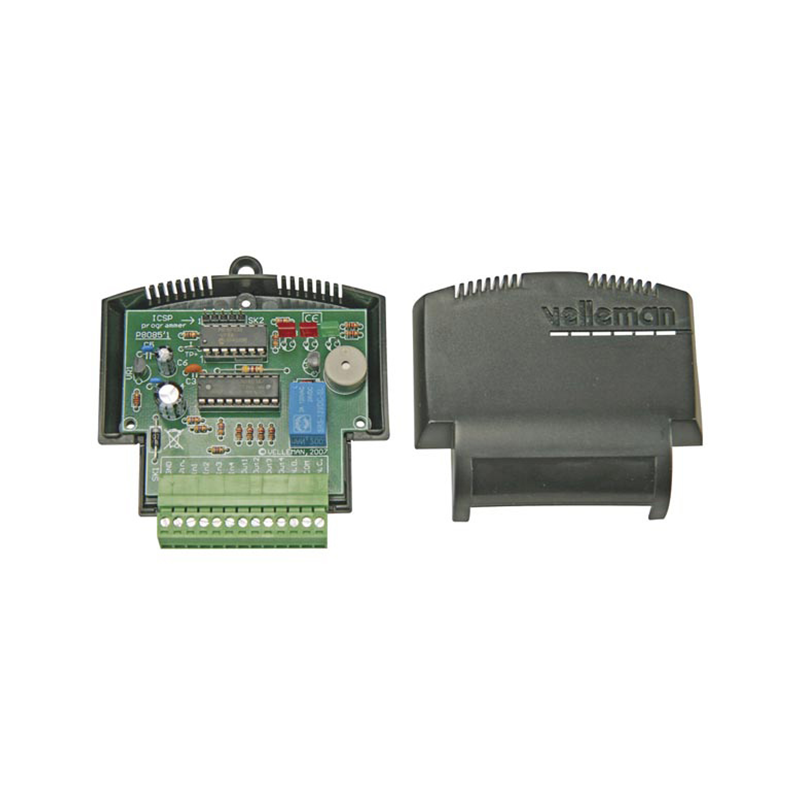

Velleman VM142 Mini PIC-PLC Application Module

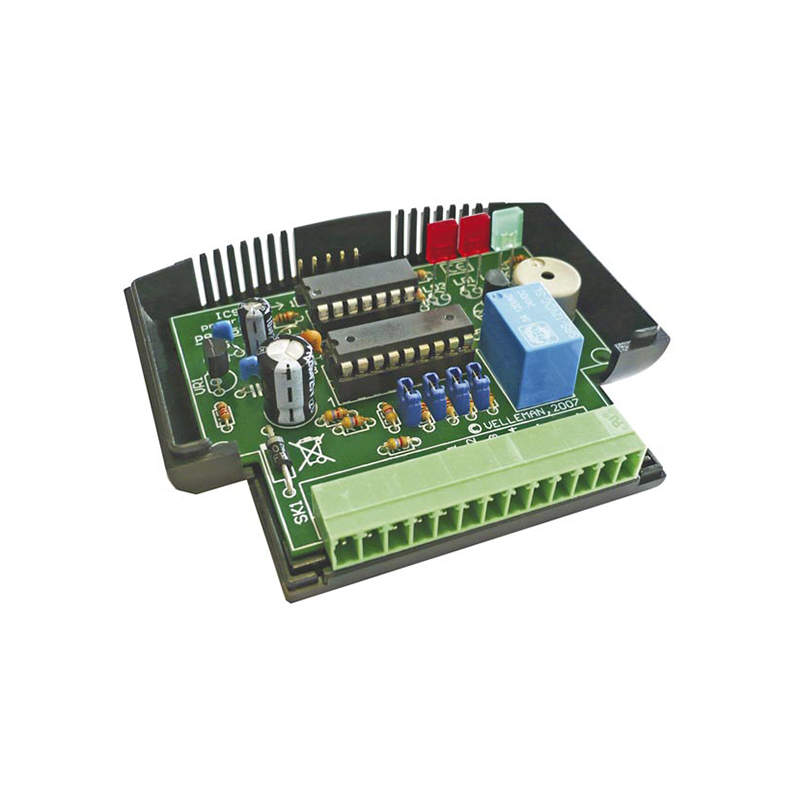

Have you ever want to start programming PIC (Programmable Interface Control) but don’t want to design and make the supporting circuit? The Velleman VM142 to the rescue! This Velleman module makes programming a bit easier with its ready-made buffered inputs and outputs and on-board LEDs, relay output, and buzzer. The board has nine freely programmable inputs and outputs (4 inputs, 5 outputs). There is also an LED indicator for the power supply/relay output, and programmable LED indicator. You don’t need to remove the PIC16F63 microcontroller for programming; the board has built-in buzzer and ICSP connectors. PIC™ programmer supports PIC16F630. The VM142 has four NPN transistor inputs, four NPN transistor outputs, and one relay output NO/ NC contact (24 Volts @ 2 Amps). Pair this module with other Velleman programming boards such as the VM134 to put your programming skills to work.

Product Details

General Information
Manufacturer
Velleman
Part Number
VM142
Product Type
DIY Electronic Project
Miscellaneous
Features

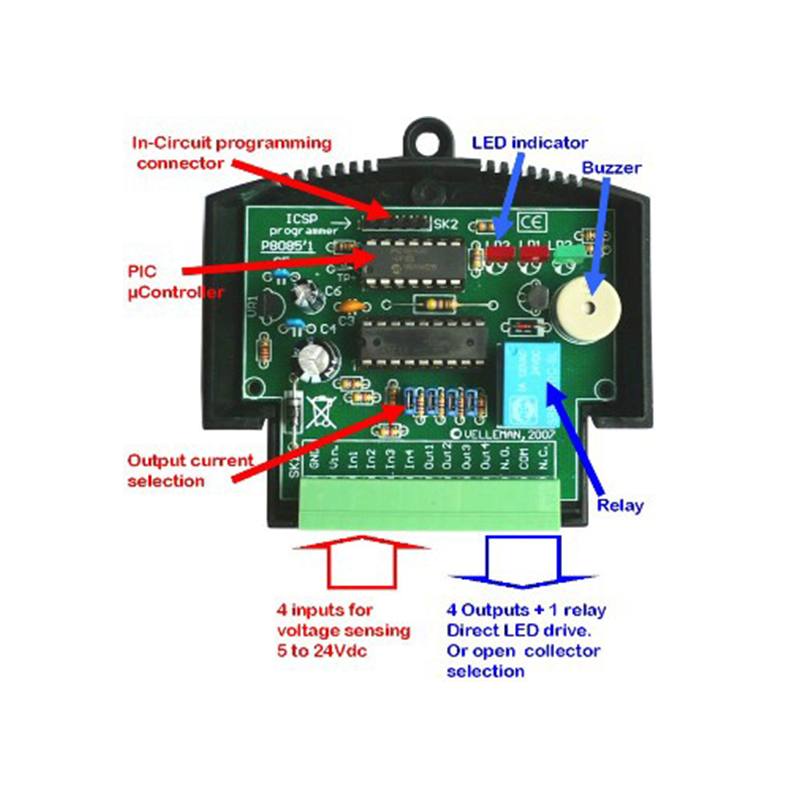

9 free programmable I/Os (4 in-, 5 outputs)
PIC16F630 microcontroller from Microchip® on-board
LED indication for power supply and relay output
1 free programmable LED indication
On-board mini buzzer for audible signals
On-board ICSP connector for programming
PIC™ programmer supports PIC16F630
Specifications
Power supply: 12V DC (unregulated) / 100mA
4 inputs (voltage sensing inputs)
Input signal voltage: 5 - 24VDC, @ 4K7
4 NPN transistor outputs (open-collector, sink outputs).:
Transistor output current: max. 100mA each
Direct 12V relay drive possible (no need for protection diode)
1 relay output with NO/NC contact (2A)
MCU speed: fixed 4MHz internal oscillator
Dimensions: 3.15 x 2.75 x 0.98"
Item Weight
3 ounces
