Velleman VM192IR RGB LED Controller - IR Version

$56.99
VM192IR is an infrared remote controlled RGB driver for 12 or 24 VDC LED strips. It allows you to set a colour manually or loop through all colours automatically, with 4 selectable fading speeds. A... Read more

Overview

Brand img

Velleman VM192IR RGB LED Controller - IR Version

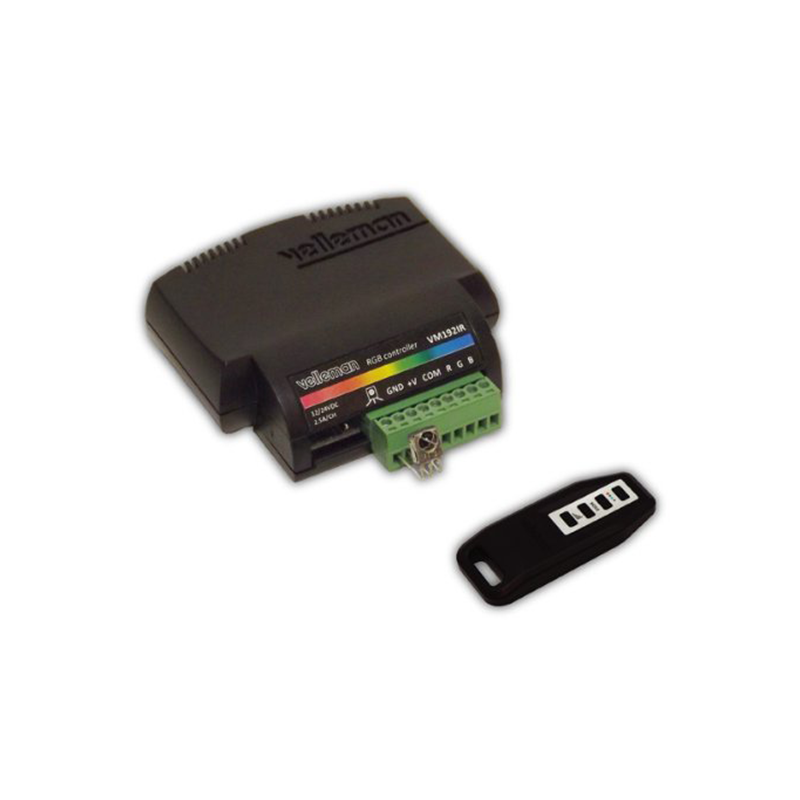

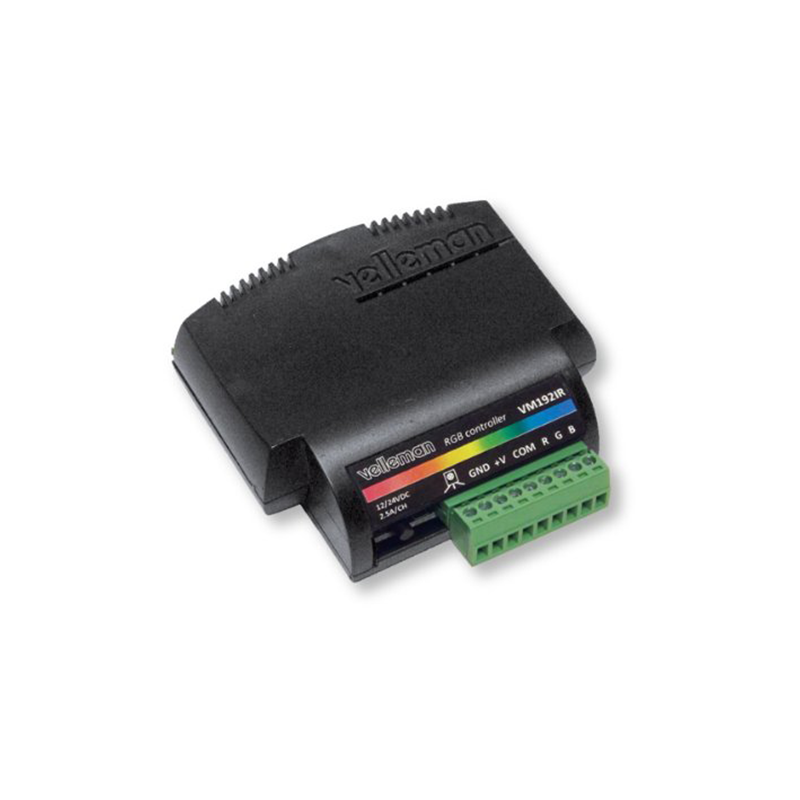

VM192IR is an infrared remote controlled RGB driver for 12 or 24 VDC LED strips. It allows you to set a colour manually or loop through all colours automatically, with 4 selectable fading speeds. A built-in dimmer allows the user to adjust the intensity, regardless of the chosen colour or mode.

Product Details

General Information
Manufacturer
Velleman
Part Number
VM192IR
Product Type
DIY Electronic Project
Miscellaneous
Features

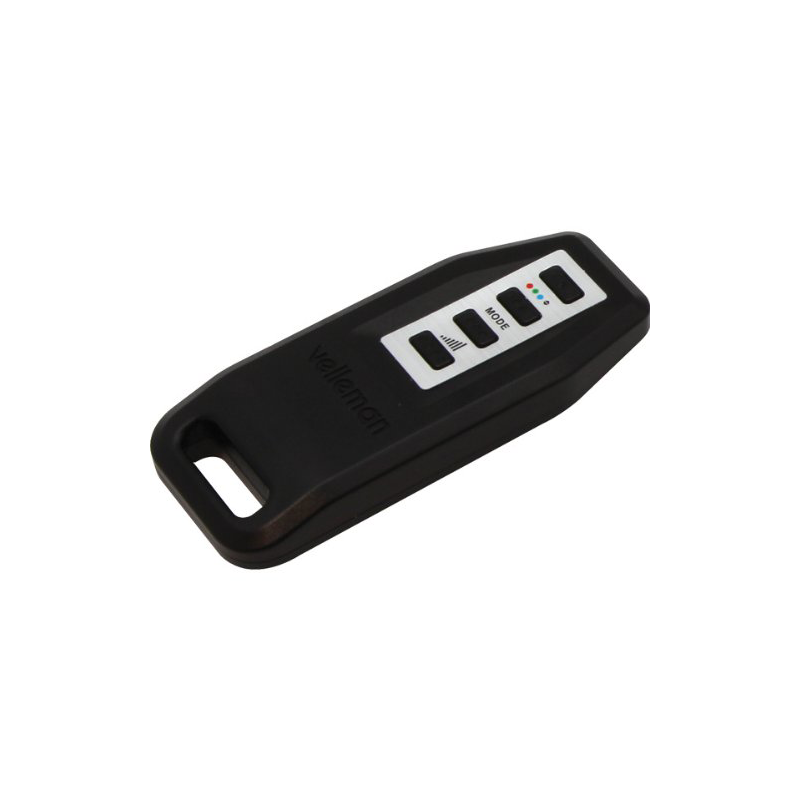

Includes one 4-channel infrared remote
IR module can be placed up to 10 m away
Color, intensity and mode are retained and will be restored after a power failure
Speed determined by jumper setting
Can also be used as a single channel led dimmer
Smooth manual scrolling through red-orange-yellow-green-blue-Indigo-violet with up/down buttons
Fix a manually selected colour
Specifications
Power supply: 12..24 VDC
Current: 2.5 A/channel max. (30 W / 12 V, 60 W / 24 V max.)
PWM frequency /resolution: 245 Hz, 10-bit
Intensity levels: 32
colour loop time (R->G->B->R): 50 s, 1 min 40 s, 2 min 30 s, or 3 min 20 s
Max. ambient temp: 30 °C / 86 °F
Remote range: up to 10 m (fresh battery, line of sight, no interference)
Remote power supply: V23GA or GP23GAC 12 V battery (included)
Dimensions:
Controller: 80 x 70 x 23 mm / 3.15 x 2.75 x 0.9"
Remote: 88 x 37 x 13 mm / 3.46 x 1.45 x 0.5"
Item Weight
3 ounces
