Velleman VM205 Oscilloscope and Logic Analyzer Shield

Original price $27.99 - Original price $27.99
Original price
$27.99
$27.99 - $27.99
Current price $27.99
Free shipping
Do you have a Raspberry Pi? Add this shield and you will also own a digital storage oscilloscope! This shield offers all standard oscilloscope features and comes with the source code, so you can develop... Read more

Overview

Brand img

Velleman VM205 Oscilloscope and Logic Analyzer Shield

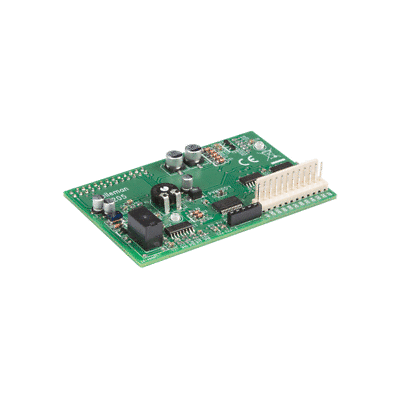

Do you have a Raspberry Pi? Add this shield and you will also own a digital storage oscilloscope!
This shield offers all standard oscilloscope features and comes with the source code, so you can develop your own applications.
As a bonus, you also get a 10-channel logic analyzer, a great tool to monitor digital signals.

maximum sample rate : 1MS/s
input amplifier bandwidth : 200kHz (-3dB)
measurements can be performed up to: 100kHz
input impedance : 100kohm // 20pF
maximum input voltage: 30Vp (AC + DC)
input coupling: AC+DC
AD resolution: 8 bit
record length: 800 samples
run modes: Run, Single
trigger level adjustable: in 254 steps
timebase range: in 15 steps 5µs to 200ms/division
input sensitivity range : in 6 steps, 100mV/division to 5V/division
input sensitivity: 3mV display resolution
time and Voltage markers readout
frequency readout (through markers)
logic analyzer:
Number of channels: 10
record length: 10x800 samples
maximum sample rate: 1MS/s
max. input voltage: 5VDC

Product Details

General Information
Manufacturer
Velleman
Part Number
VMA205
Product Type
DIY Kits & Projects
