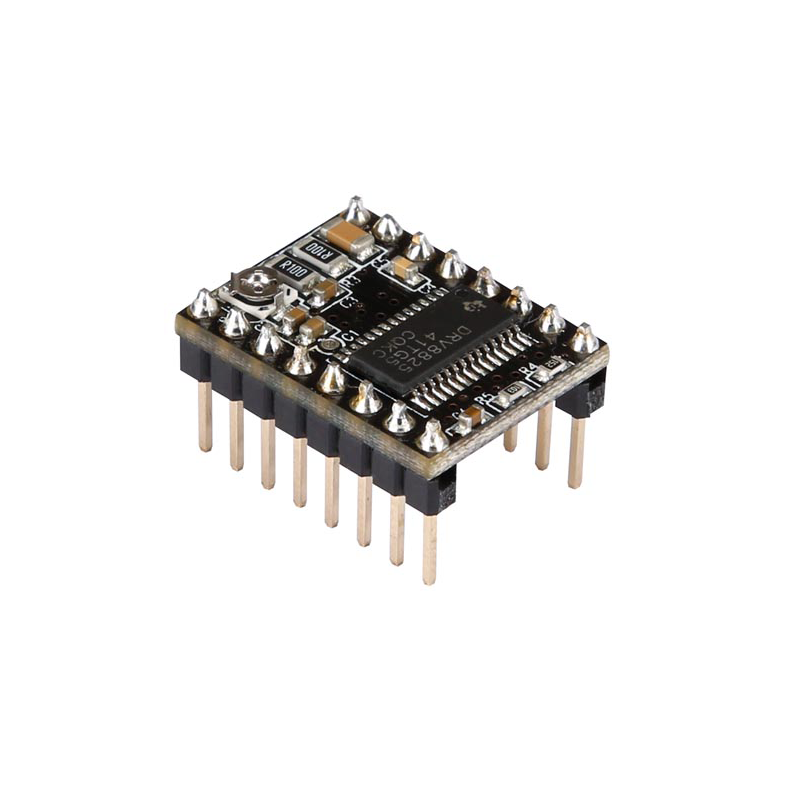

Velleman VM8400DB DRV8825 Stepper Driver Board

Velleman VM8400DB DRV8825 Stepper Driver Board

by Velleman
No reviews
$14.99 - $14.99
$14.99
$14.99 - $14.99
$14.99
Breakout board for TI DRV8825 microstepping bipolar stepper motor driver with adjustable current limiting, over-current and over-temperature protection and 6 microstep resolutions (down to 1/32-step). It allows you to control a bipolar stepper motor in... Read more

Overview

Velleman

Velleman VM8400DB DRV8825 Stepper Driver Board

Breakout board for TI DRV8825 microstepping bipolar stepper motor driver with adjustable current limiting, over-current and over-temperature protection and 6 microstep resolutions (down to 1/32-step). It allows you to control a bipolar stepper motor in a simple way.

Product Details

General Information
Manufacturer
Velleman
Part Number
VM8400DB
Product Type
DIY Electronic Kit
California Residents
Proposition 65 Warning
Miscellaneous
Features
Simple step and direction control interface
Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
Current adjust trimmer
Can interface directly with 3.3 V and 5 V systems
Over-temperature thermal shutdown, over-current shutdown and Under-voltage lockout
Short-to-ground and shorted-load protection
Specifications
Minimum operating voltage: 8.2 V
Maximum operating voltage: 45 V
Continuous current per phase: 1.5 A
Maximum current per phase: 2.2 A (with cooling)
Minimum logic voltage: 2.5 V
Maximum logic voltage: 5.25 V
Dimensions: 20 x 15 mm (0.8" x 0.6 ")
Item Weight
3 ounces
