Velleman VMA101 Arduino Mega ATmega2560 Development Board

Original price $23.80 - Original price $23.80
Original price
$23.80
$23.80 - $23.80
Current price $23.80
Free shipping
The VMA101 (Arduino® Compatible) Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware... Read more

Overview

Brand img

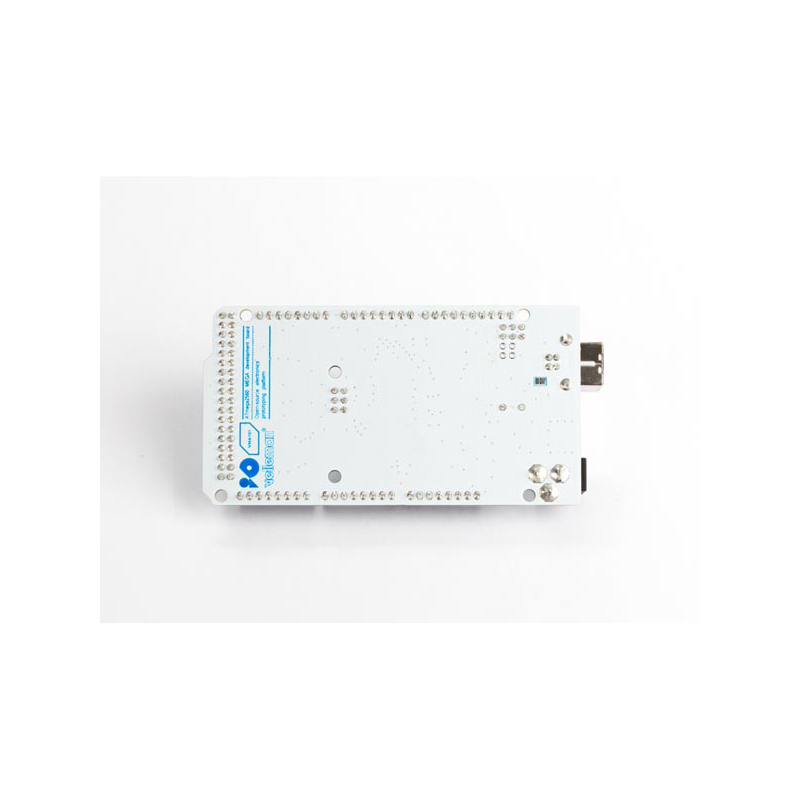

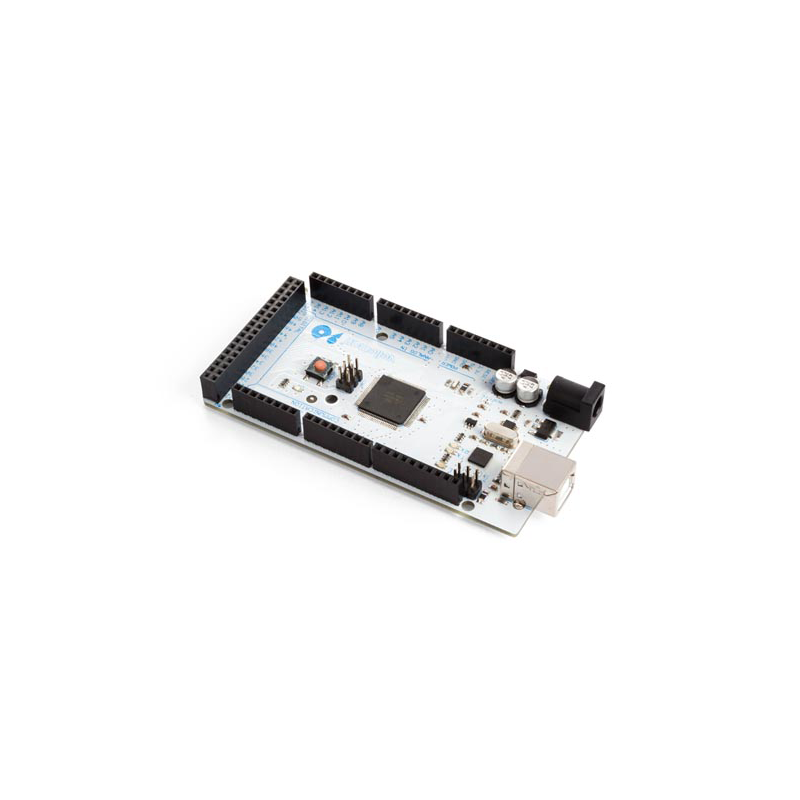

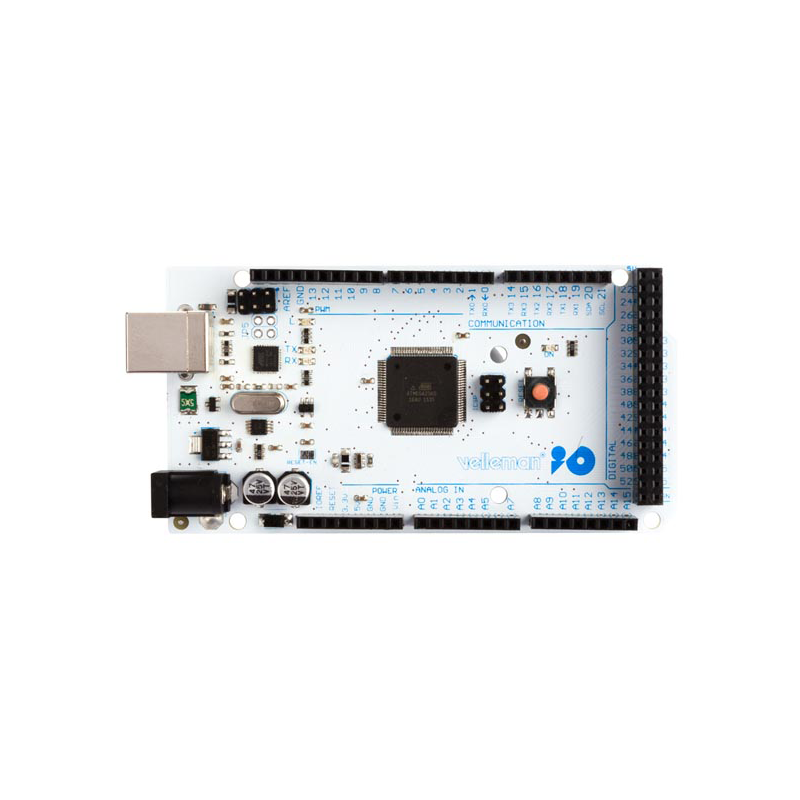

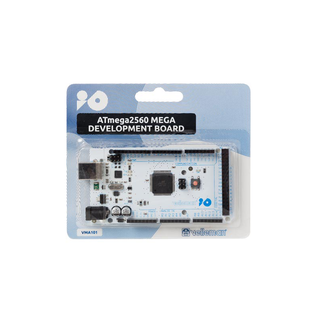

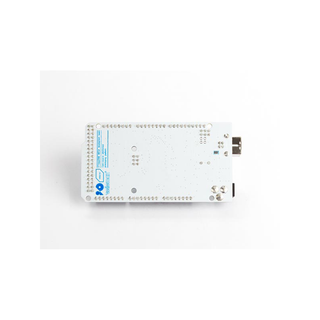

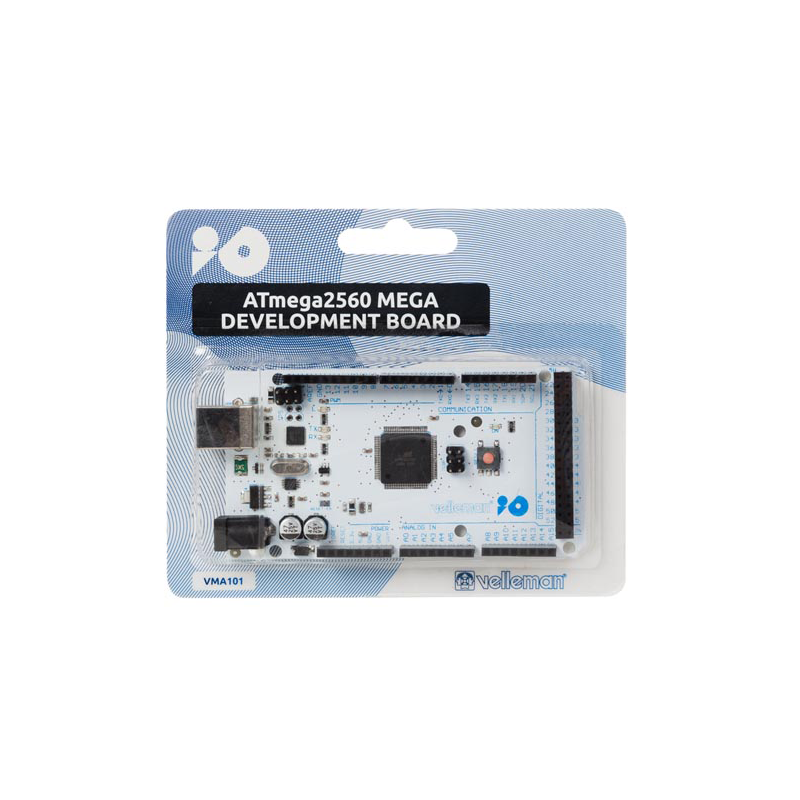

Velleman VMA101 Arduino Mega ATmega2560 Development Board

The VMA101 (Arduino® Compatible) Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega is compatible with most shields designed for the Arduino Duemilanove or Diecimila.

Specifications

  • microcontroller: ATmega2560
  • operating voltage: 5 VDC
  • input voltage (recommended): 7-12 VDC
  • input voltage (limits): 6-20 VDC
  • digital I/O pins: 54 (of which 15 provide PWM output)
  • analogue input pins: 16
  • DC current per I/O pin: 40 mA
  • DC current for 3.3 V pin: 50 mA
  • flash memory: 256 kB of which 8 kB used by bootloader
  • SRAM: 8 kB
  • EEPROM: 4 kB
  • clock speed: 16 MHz

Product Details

General Information
Manufacturer
Velleman
Part Number
VMA101
Product Type
Development Board
Specifications
Size
length: 4.41" (112 mm) width: 2.17" (55 mm) weight: 2.19 oz. (62 g)
Miscellaneous
Features
100% compatible with Arduino® MEGA2560
