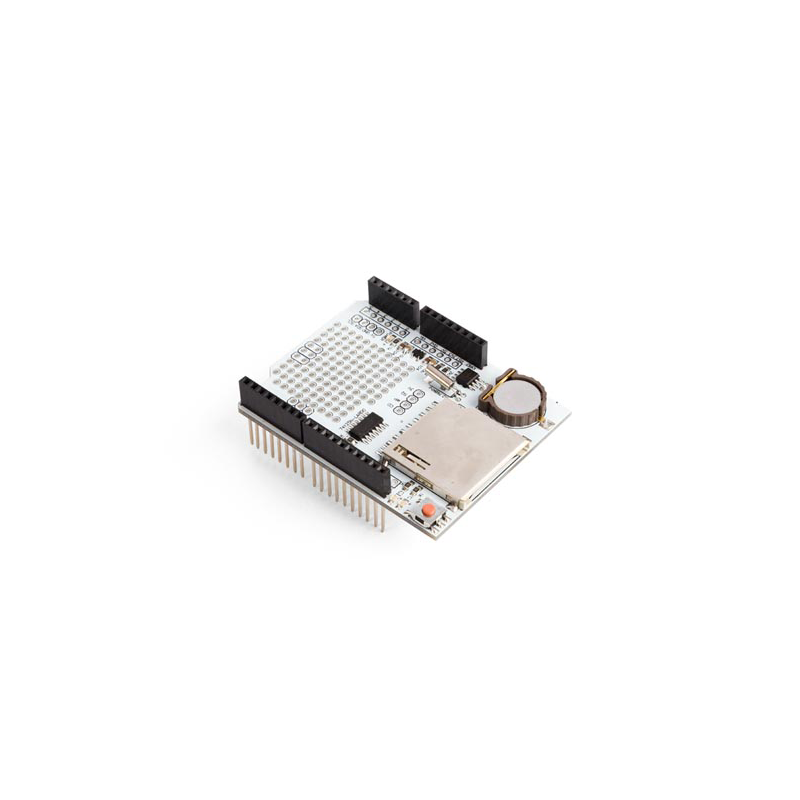

Velleman VMA202: Arduino Compatible Data Logging Shield

Features

Arduino compatible data logging shield especially designed for Arduino. Supports FAT16 or FAT32 card formats. Real time clock module keeps the time even when the Arduino is off. Compatibility: Arduino UNO, Duemilanove, Diecimila, Leonardo, ADK/Mega R3 or higher. Not compatible with ADK/Mega R2.

Features

• stackable headers
• reset button

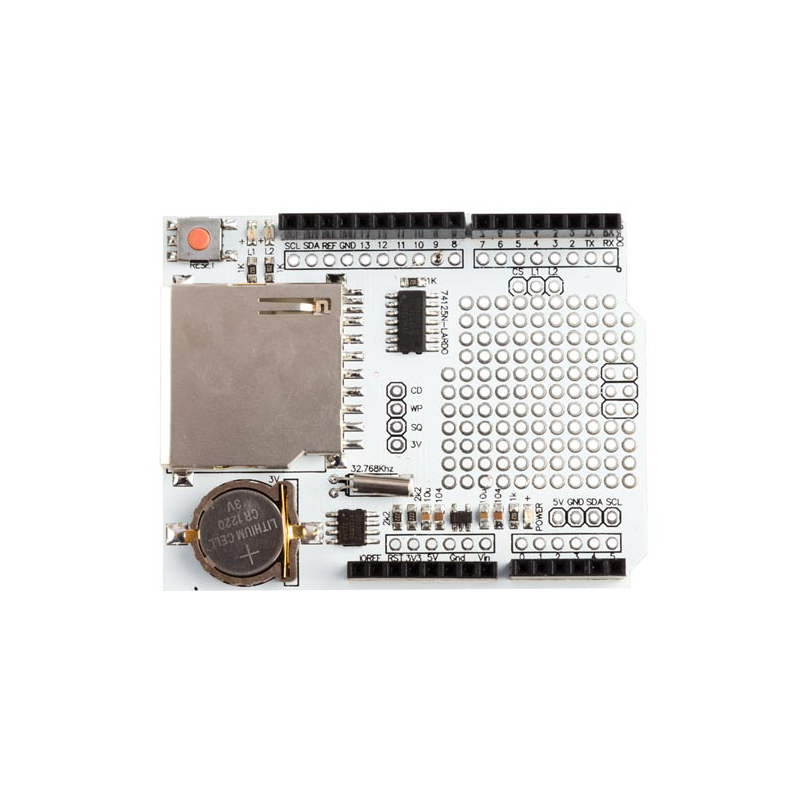

• prototyping area (102 solder pads) for soldering connectors, circuitry or sensors
• back-up battery for RTC included
• uses the Arduino SD and RTC libraries
• with onboard 3.3 V regulator to run SD cards that require a lot of power

Specifications

• back-up battery: CR1220 battery (incl.)
• dimensions: 1.69" x 0.67" x 0.35" (43 x 17 x 9 mm)
