Velleman VMA314 PIR Motion Sensor for Arduino

Original price $7.36 - Original price $7.36
Original price
$7.36
$7.36 - $7.36
Current price $7.36
Free shipping
PIR sensors allow to sense motion, almost always used to detect whether a human has moved in or out of the sensor's range. Specifications Voltage: 5 VDC connection: 3 pin: GND, VCC and OUT adjustments:... Read more

Overview

Brand img

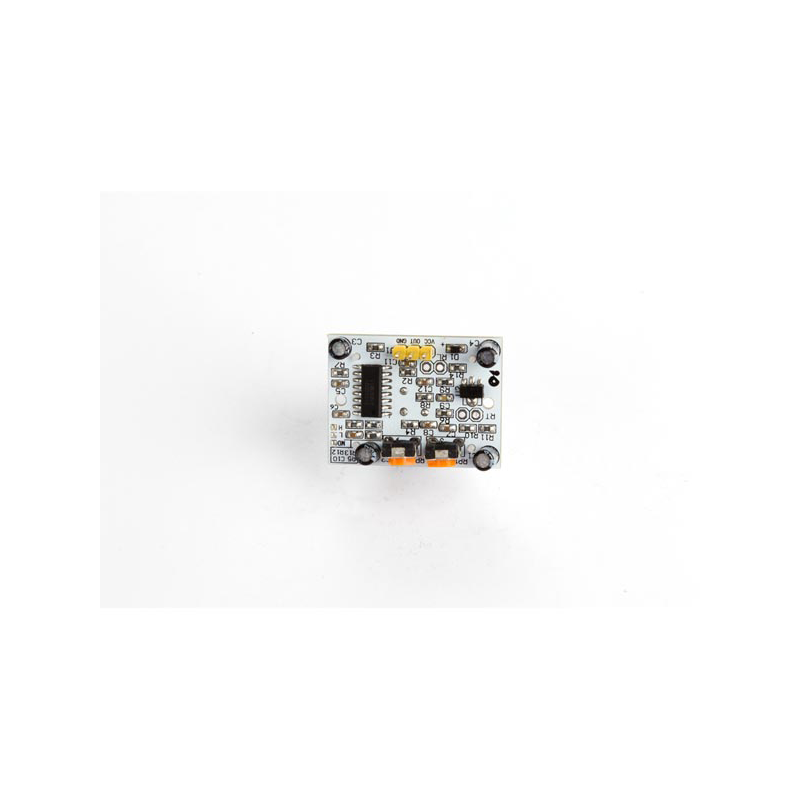

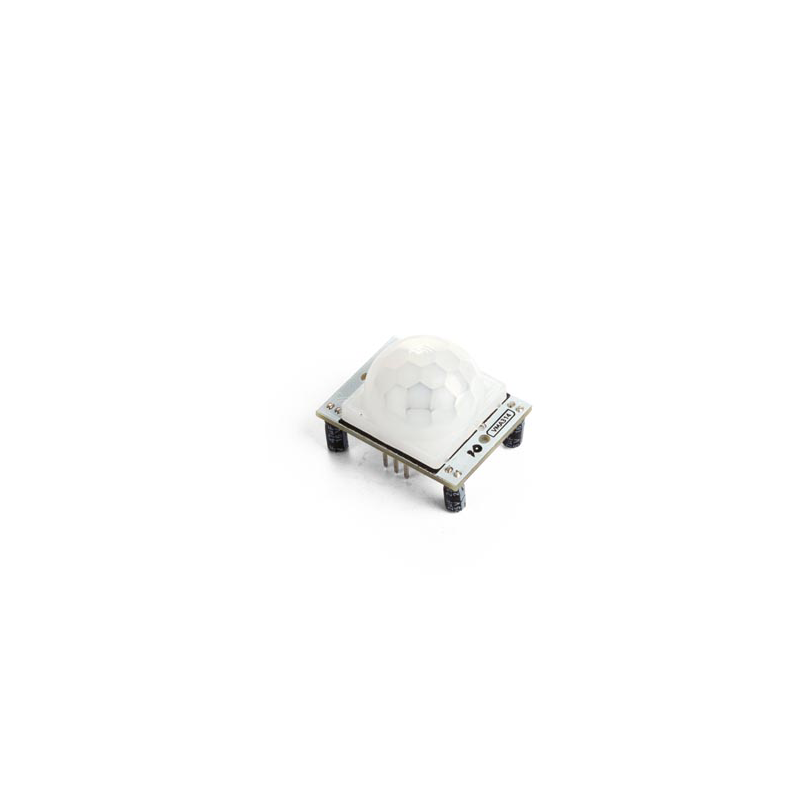

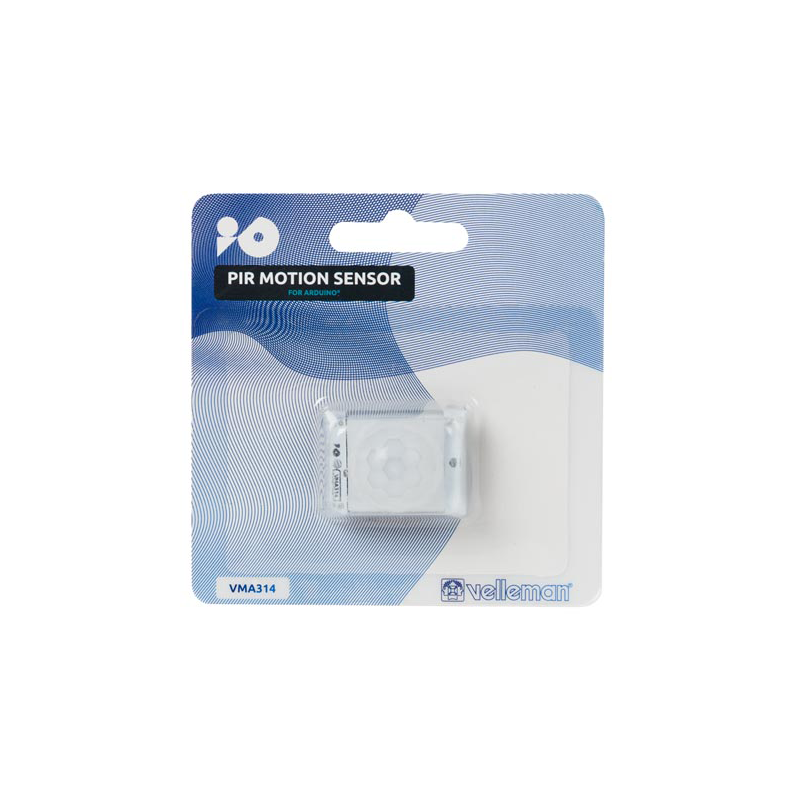

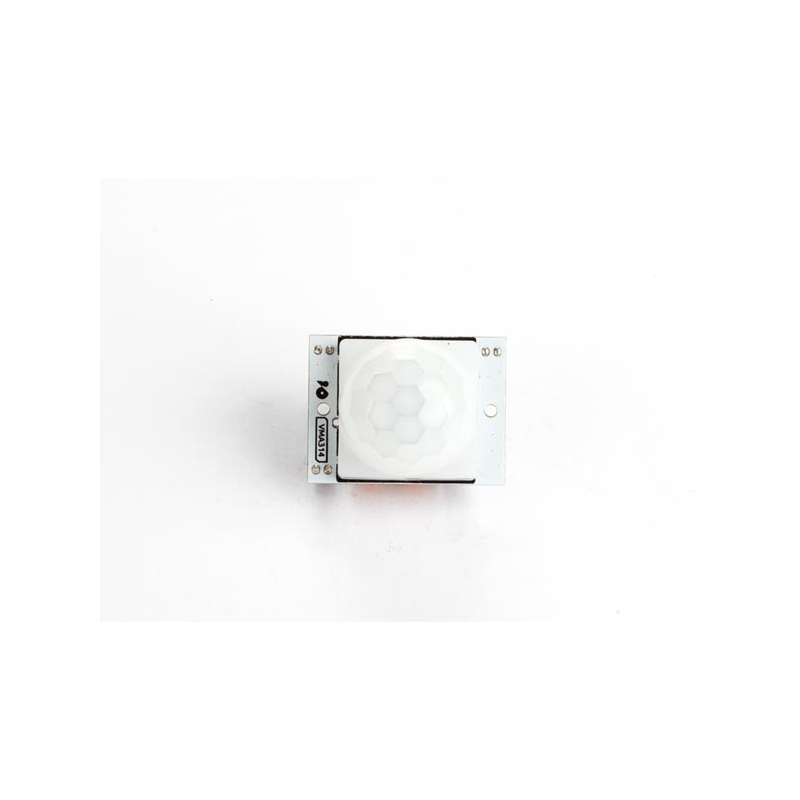

Velleman VMA314 PIR Motion Sensor for Arduino

PIR sensors allow to sense motion, almost always used to detect whether a human has moved in or out of the sensor's range.

Specifications

  • Voltage: 5 VDC
  • connection: 3 pin: GND, VCC and OUT
  • adjustments: sensitivity and delay (by trimmer)
  • delay on time: 3 to 200 s
  • output level: high = 3 V, Low = 0 V
  • max. sensor distance: 22.97 ft (7 m)
  • operating temperature: 5°F to 158°F (-15 to +70°C)
  • detection angle : 120 °
  • dimensions: 1.26" x 0.95" x 0.98" (32 x 24 x 25 mm)

Product Details

General Information
Manufacturer
Velleman
Part Number
VMA314
Product Type
Motion Sensor
