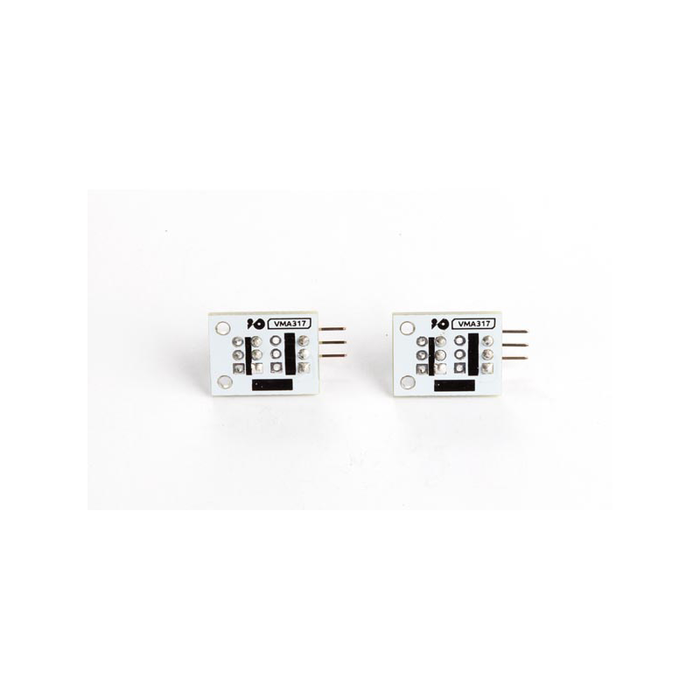

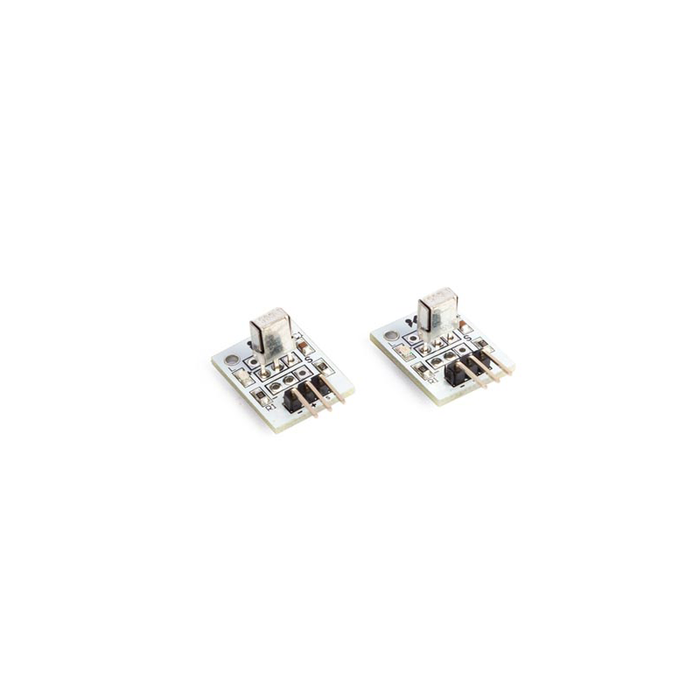

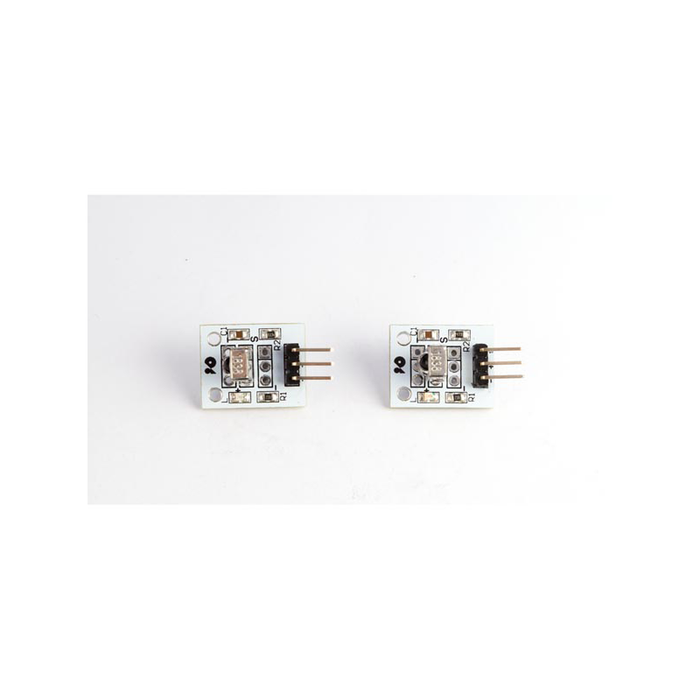

Velleman VMA317: Arduino Compatible IR Infrared 37.9 Khz Receiver - 2 pack

Features

The VMA317 (1838) is a miniaturized infrared receiver for remote control and other applications requiring improved ambient light rejection.

Features

• Photo detector and preamplifier in one package
• internal filter for PCM frequency
• inner shield, good anti-interference ability
• high immunity against ambient light
• Improved shielding against electric field disturbance
• 3.0 V or 5.0 V supply voltage; low power consumption
• TTL and CMOS compatibility

Specifications

• Supply Voltage: 3 to 5 VDC
• max. supply current: 1.5 mA
• B.P.F. center frequency: 37.9 KHz
• dimensions: 1.1" x 0.59" x 0.39" (28 x 15 x 10 mm)
