Velleman VMA318: Arduino Compatible RGB SMD LED Module - 2 Pieces

Velleman VMA318: Arduino Compatible RGB SMD LED Module - 2 Pieces

by Velleman
No reviews
$9.00 - $9.00
$9.00
$9.00 - $9.00
$9.00
Free shipping
This module contains a 5050 RGB LED. Connect this module to the Arduino PWM outputs to generate a full range of colours. Warning! This module does not include current limiting resistors! Damage to the LEDs... Read more

Overview

Brand img

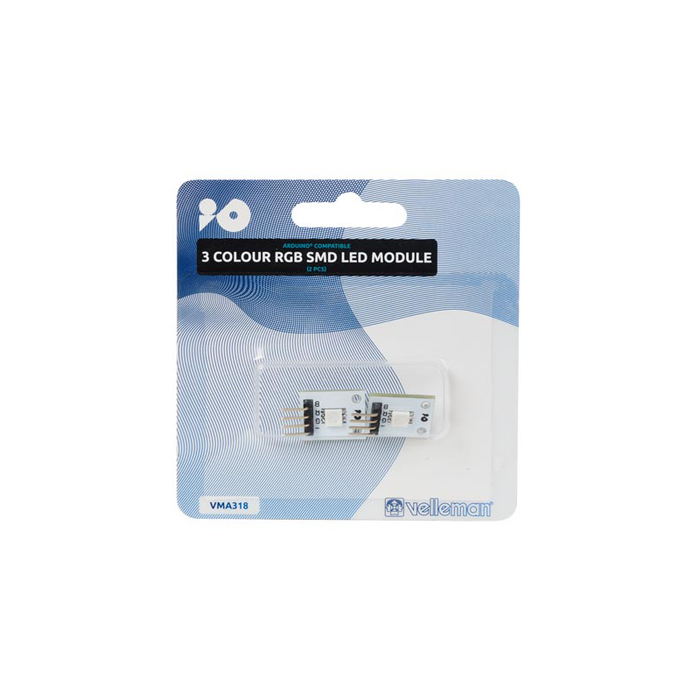

Velleman VMA318: Arduino Compatible RGB SMD LED Module - 2 Pieces

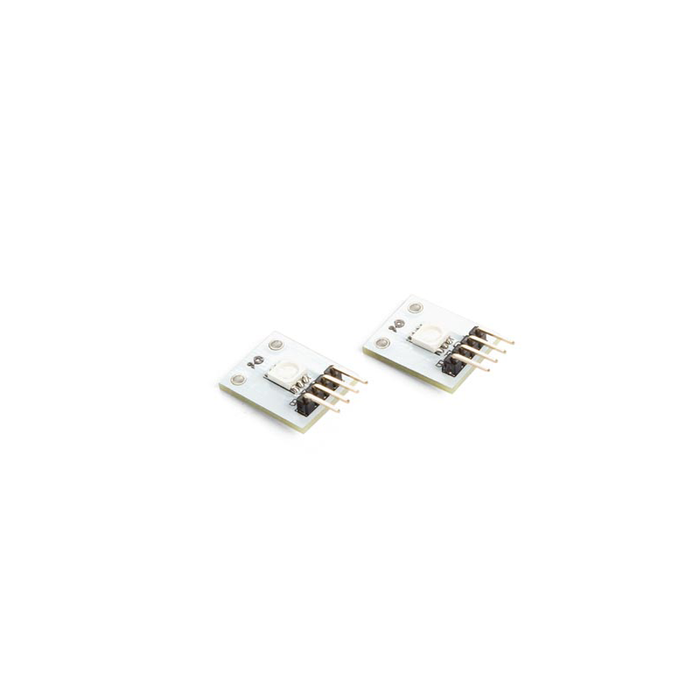

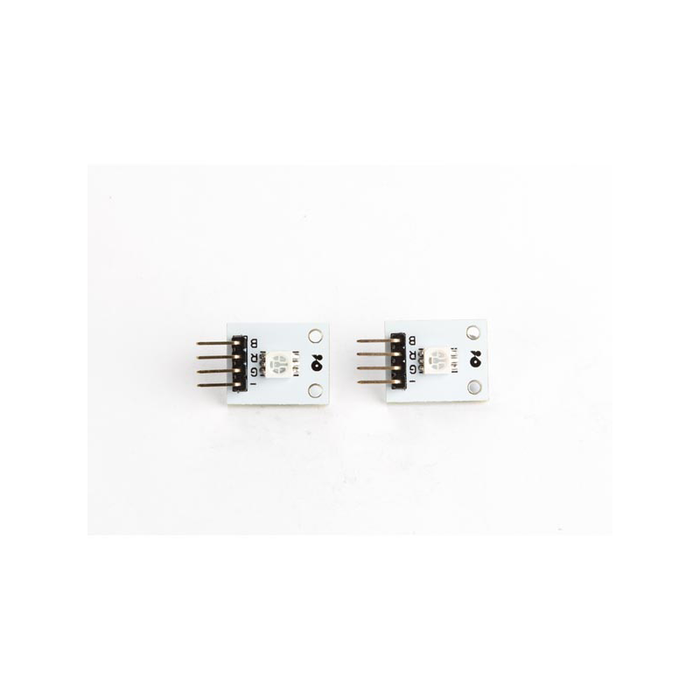

This module contains a 5050 RGB LED.
Connect this module to the Arduino PWM outputs to generate a full range of colours.
Warning! This module does not include current limiting resistors! Damage to the LEDs will occur if connected directly to 5 V.

Specifications

  • Power Dissipation: R 60mW, G 95mW, B 95mW
  • peak forward current (0.1 ms pulse width): 100 mA for each colour
  • continuous forward current: 25 mA for each LED
  • max. reverse voltage: 5 V
  • operating temperature: -40 °F to 176°F (-40 °C to 80 °C)
  • dimensions: 1.1" x 0.59" x 0.2" (28 x 15 x 5 mm)

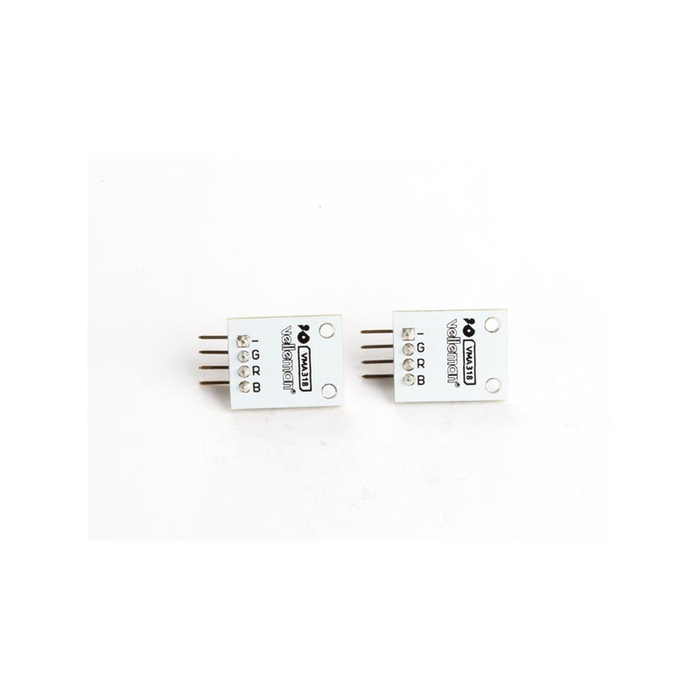

  • Common: Cathode (-)
  • attention: current has to be limited by using resistors

Product Details

General Information
Manufacturer
Velleman
Part Number
VMA318
Product Type
LED Module
