Velleman VMA328 UV Light Sensor GUVA-S12SD Module

Original price $9.99 - Original price $9.99
Original price
$9.99
$9.99 - $9.99
Current price $9.99
Free shipping
Use this analogue UV sensor module extends to extend your light sensing spectrum. Its UV photodiode will detect light ranging from 240-370 nm (thus including UVB and most of the UVA spectrum). As the photodiode... Read more

Overview

Brand img

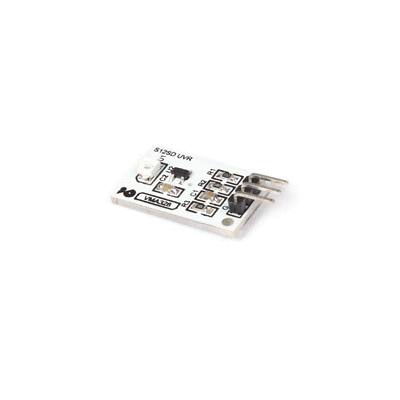

Velleman VMA328 UV Light Sensor GUVA-S12SD Module

Use this analogue UV sensor module extends to extend your light sensing spectrum. Its UV photodiode will detect light ranging from 240-370 nm (thus including UVB and most of the UVA spectrum). As the photodiode has a very small nano-ampere signal level, the device contains an opamp to amplify this signal.

operating voltage: 3.3 V to 5 V

output voltage: 0 V to 1 V (0-10 UV index)

response time: 0.5 second

accuracy: +/- 1 UV index

radiation wavelength: 240-370 nm

operating temperature: -20 °C to +85 °C

current consumption: 5 mA

dimensions: 24 x 15 mm



Product Details

General Information
Manufacturer
Velleman
Part Number
VMA328
Product Type
Light & Imaging
