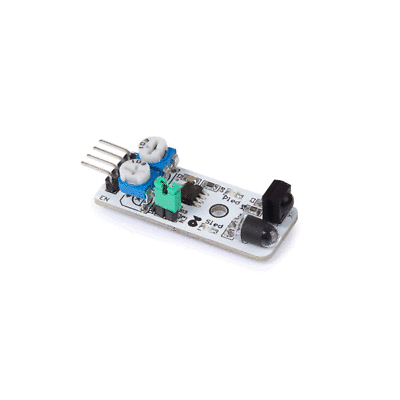

Velleman VMA330 IR Obstacle Avoidance Sensor Module

Original price $6.99 - Original price $6.99
Original price
$6.99
$6.99 - $6.99
Current price $6.99
Free shipping
This module is an inexpensive solution for an obstacle avoidance sensor, perfect for robotic projects and very easy to interface directly with Arduino® and compatible boards. The module has two potentiometers, one to control frequency... Read more

Overview

Brand img

Velleman VMA330 IR Obstacle Avoidance Sensor Module

This module is an inexpensive solution for an obstacle avoidance sensor, perfect for robotic projects and very easy to interface directly with Arduino® and compatible boards. The module has two potentiometers, one to control frequency and one to control the intensity.
operating voltage: 3.3 V to 5 V
output: digital (on/off)
detection threshold: adjustable by 2 trimmers
distance range: 2 to 10 cm
adjustment R6: frequency adjustment 38 KHz (already optimised)
adjustment R5: IR LED power adjustment (already optimised)
operating temperature: -10°C to +50°C
effective angle: 35°
I/O interface: 4 wire interface (- / + / S / EN )
dimensions: 45 x 16 x 10 mm
weight: 9 g


Product Details

General Information
Manufacturer
Velleman
Part Number
VMA330
Product Type
Light & Imaging
