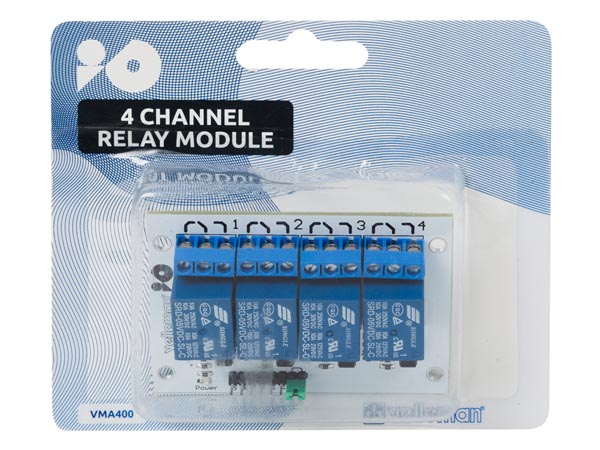

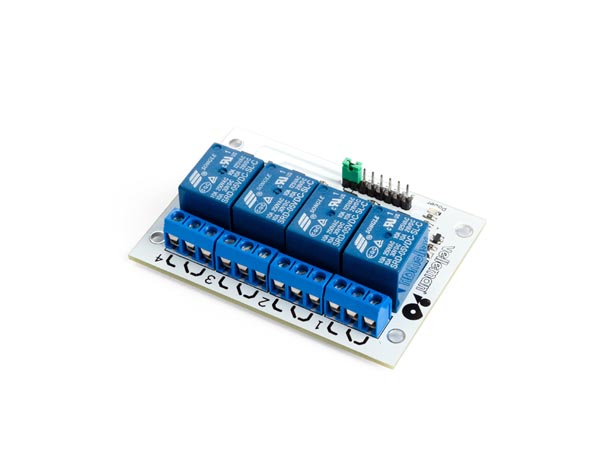

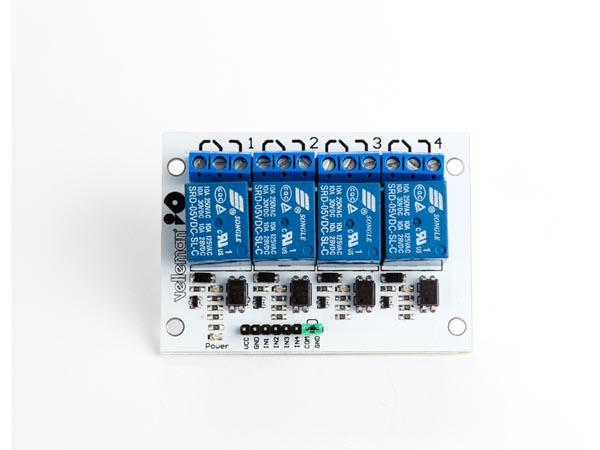

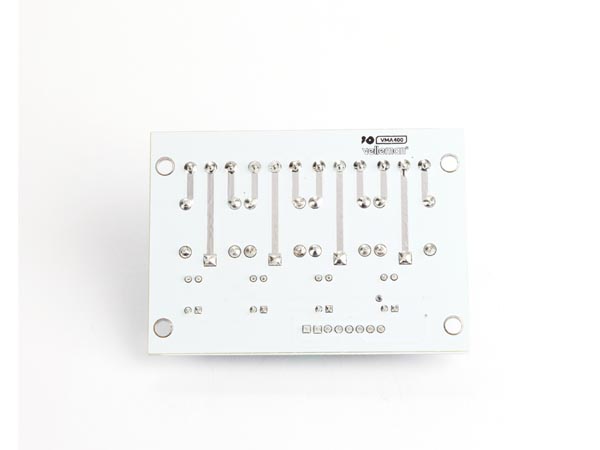

Velleman VMA400: 4 Channel Relay Module

Original price $19.72 - Original price $19.72
Original price
$19.72
$19.72 - $19.72
Current price $19.72
Free shipping
This 4-channel relay interface board can control various appliances and other equipments with high current. It can be controlled directly by any micro-controller. Features Standard interface that can be controlled directly by any microcontroller Opto-isolated... Read more

Overview

Brand img

Velleman VMA400: 4 Channel Relay Module

This 4-channel relay interface board can control various appliances and other equipments with high current. It can be controlled directly by any micro-controller.

Features

  • Standard interface that can be controlled directly by any microcontroller
  • Opto-isolated inputs
  • indicator LEDs for relay output status

Specifications

  • control input current (in1 to in4): 5 - 15 mA
  • Control input Voltage: 5 - 12 VDC
  • relay output: 250 VAC 10 A; 30 VDC 10 A (non-inductive)

Product Details

General Information
Manufacturer
Velleman
Part Number
VMA400
Product Type
Channel Relay Module
