Velleman VTBB5 High-Quality Breadboard - 2420 Holes

Features

Features

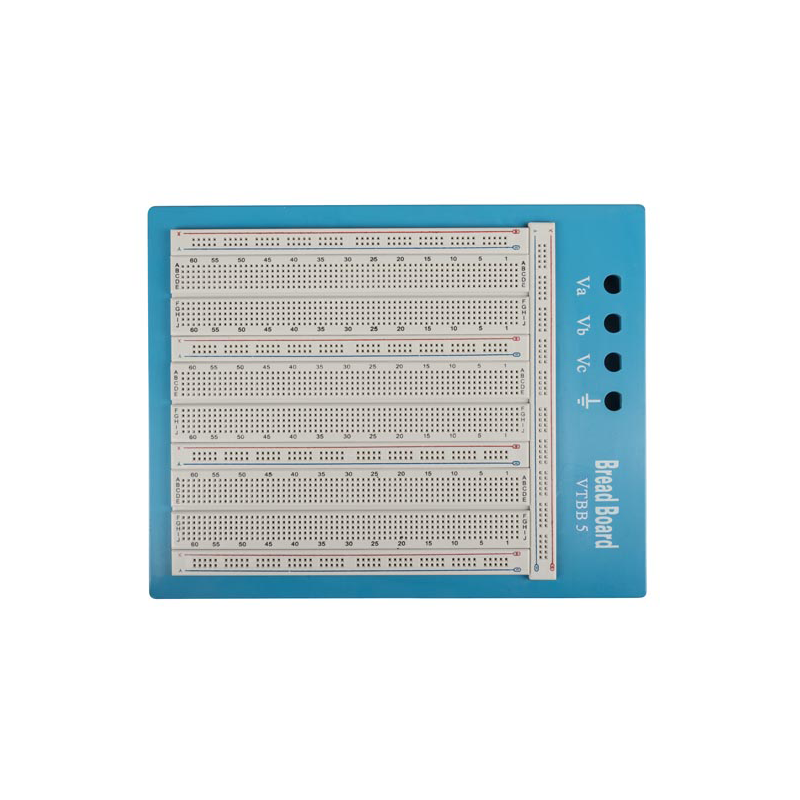

• base socket (see figure): twin columns of 6 x 30 terminals are separated by a 0.24" center channel
• bus strip : 10 buses of 50 connected terminals arranged in 4 rows

Specifications

• voltage: max. 30 V
• current: max. 3 A
• material:
  • external body: external body is made of ABS
  • internal interconnected clips: stainless steel
• base socket: 3
• bus strip: 5
• tie points: 2420
• 14-pins IC capacity: 4
• binding post: 4
• dimensions:
  • board: 220 x 150 x 18 mm
  • breadboard: 174 x 132 mm
• weight: 470 g
