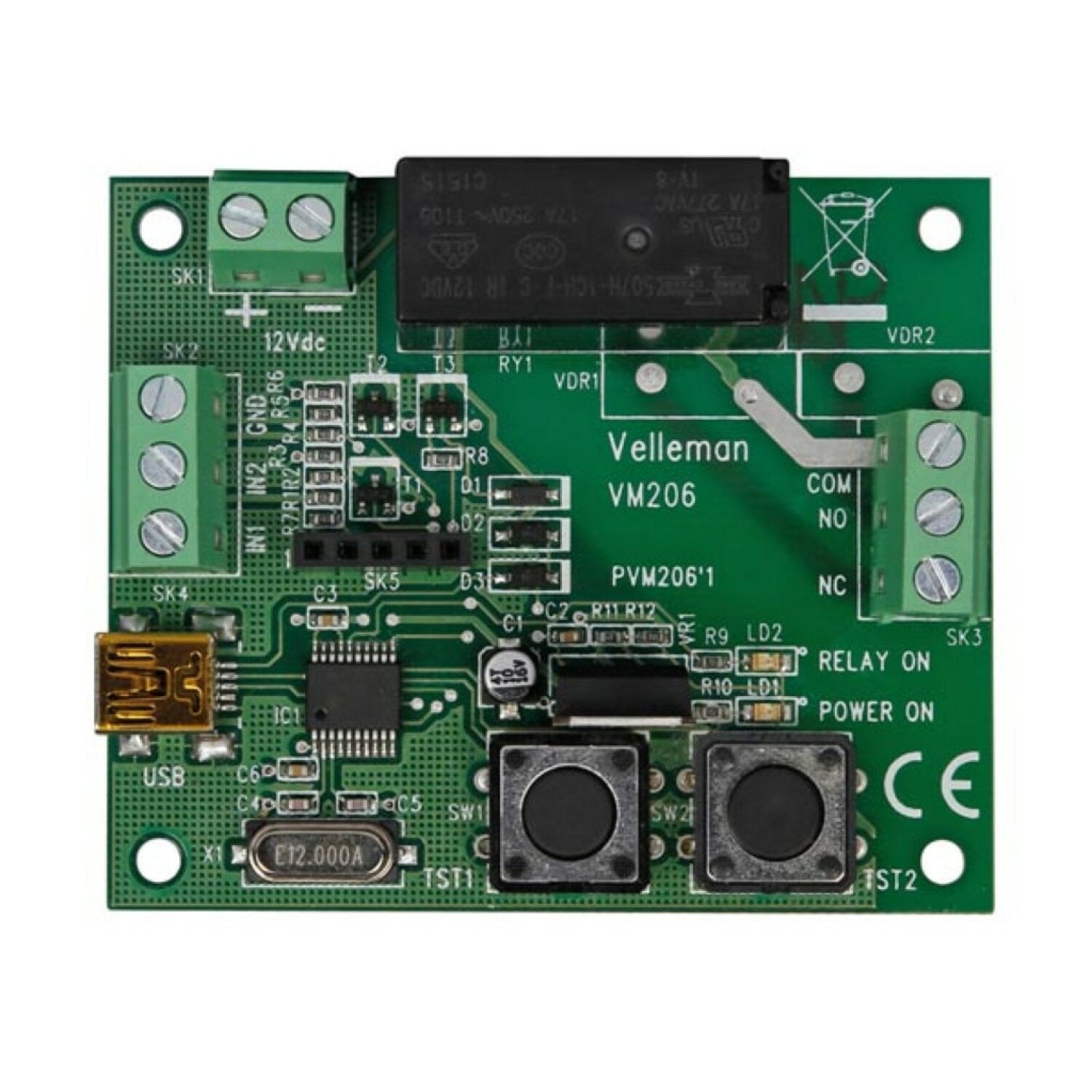

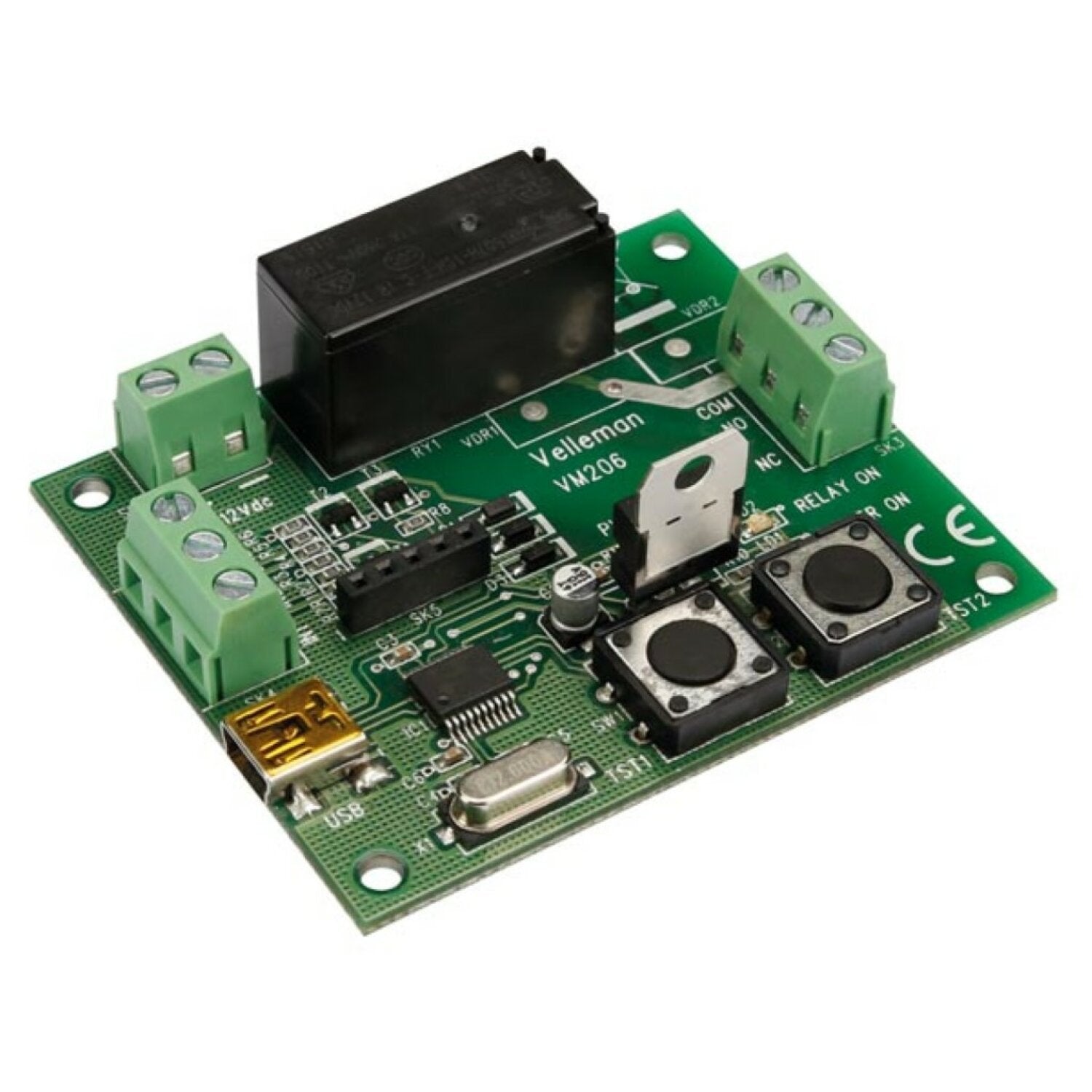

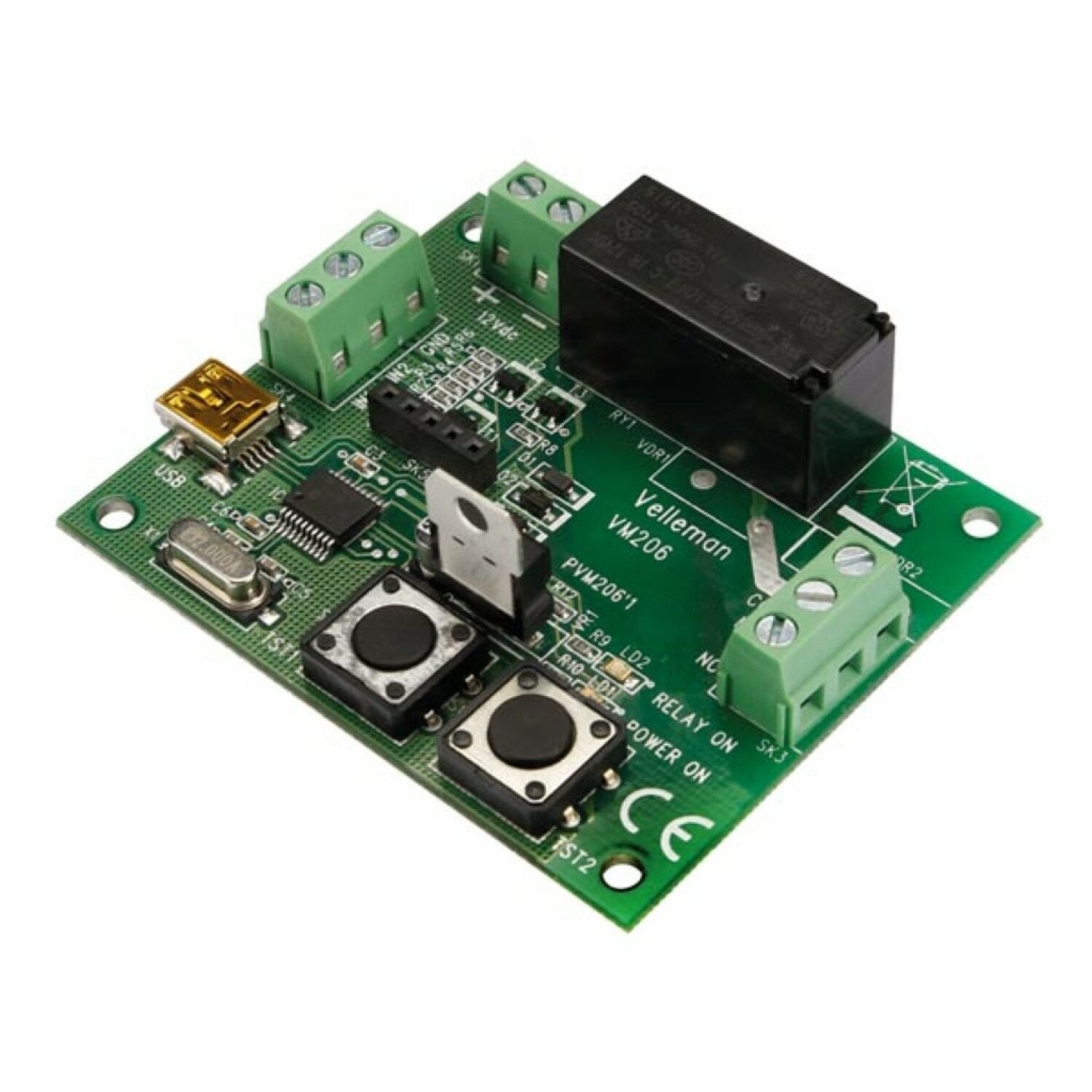

Velleman WMT206 Universal Timer With Usb Interface

Velleman

WMT206

Universal Timer

10 operating modes:
switching mode
start/stop timer
stairwell timer
activate the timer by releasing the switch
activation timing
deactivation timing
single shot timer
pulse/pause timer
pause/pulse timer
timer with adjustable switching
large range for adjusting time

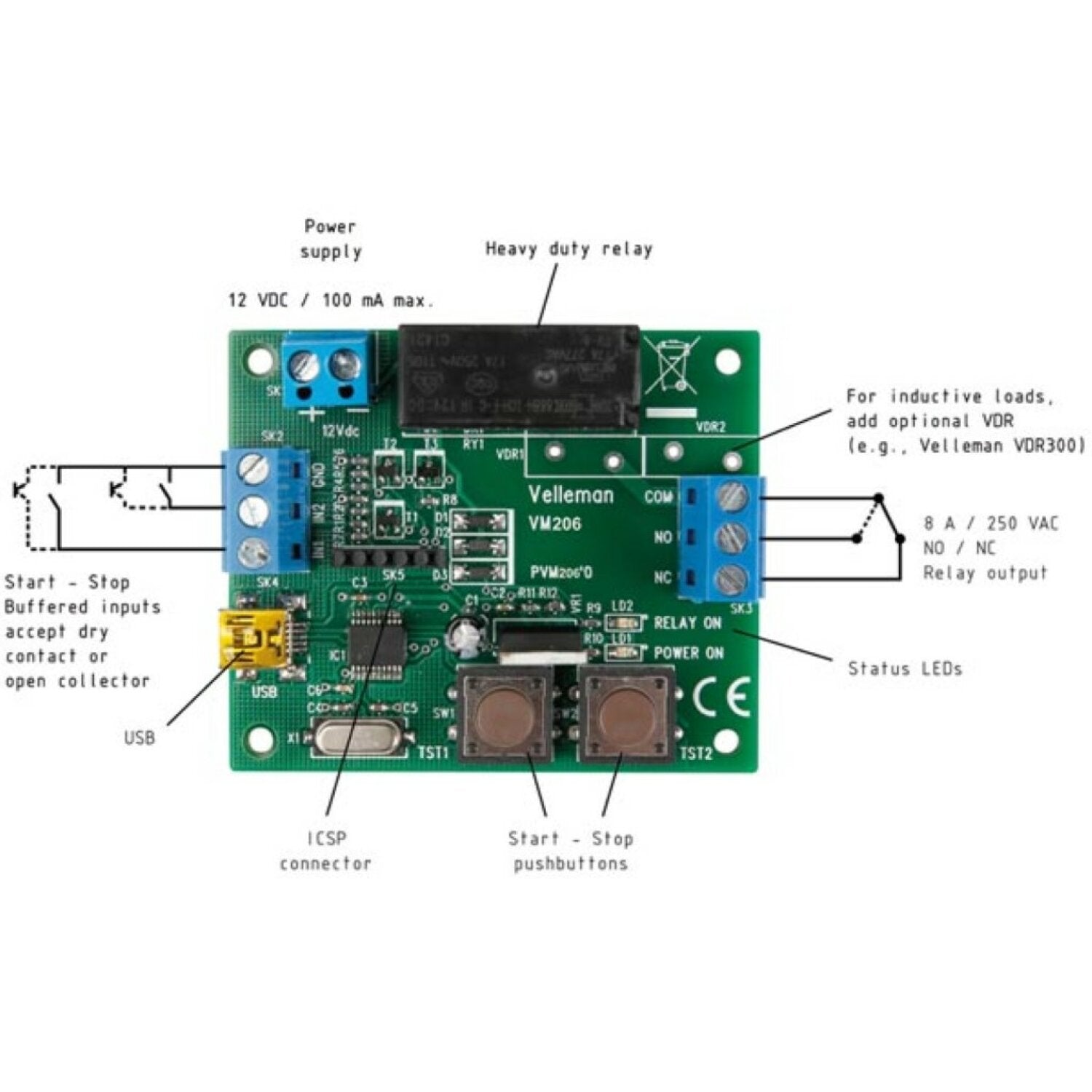

Buffer inputs for external START/STOP buttons
powerful relay

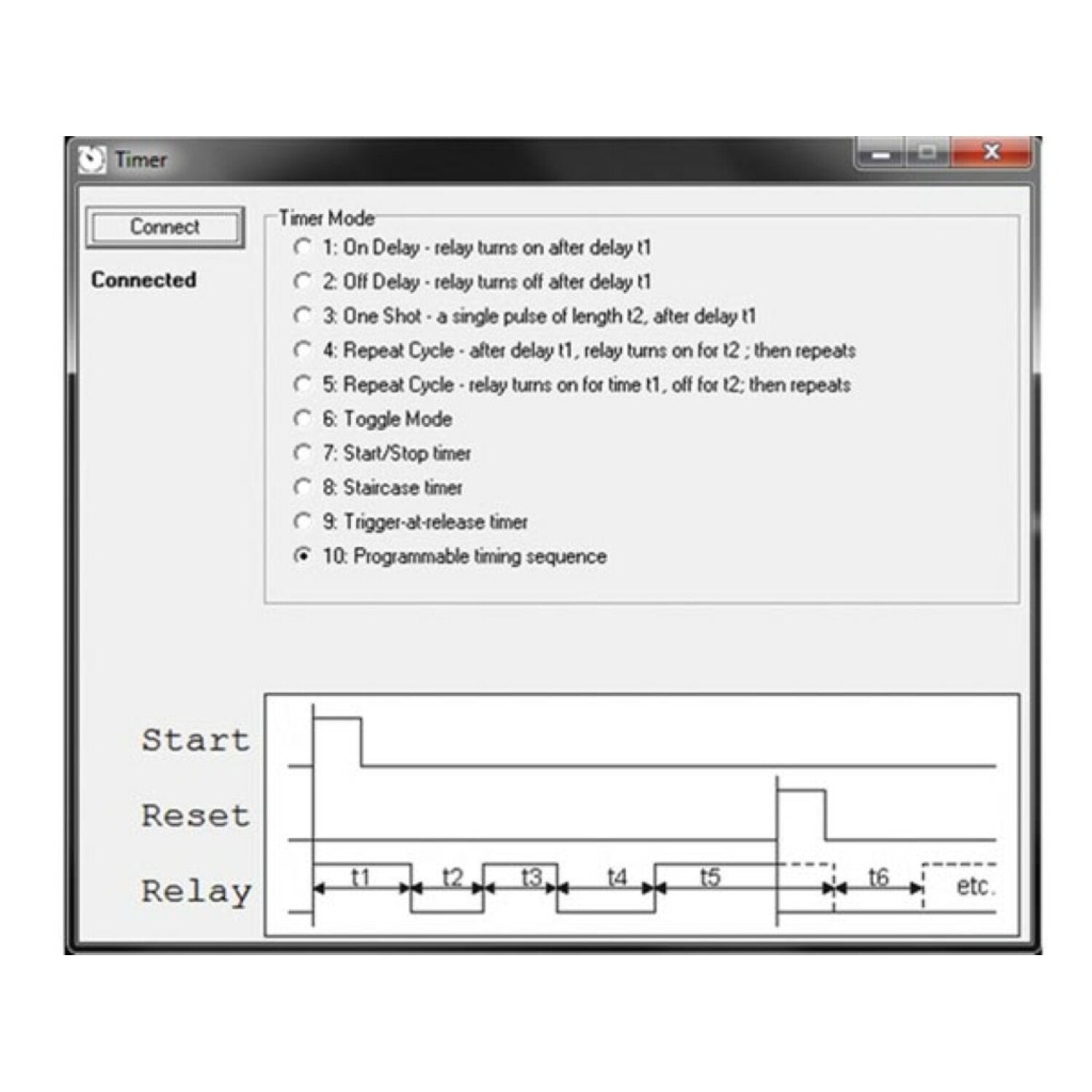

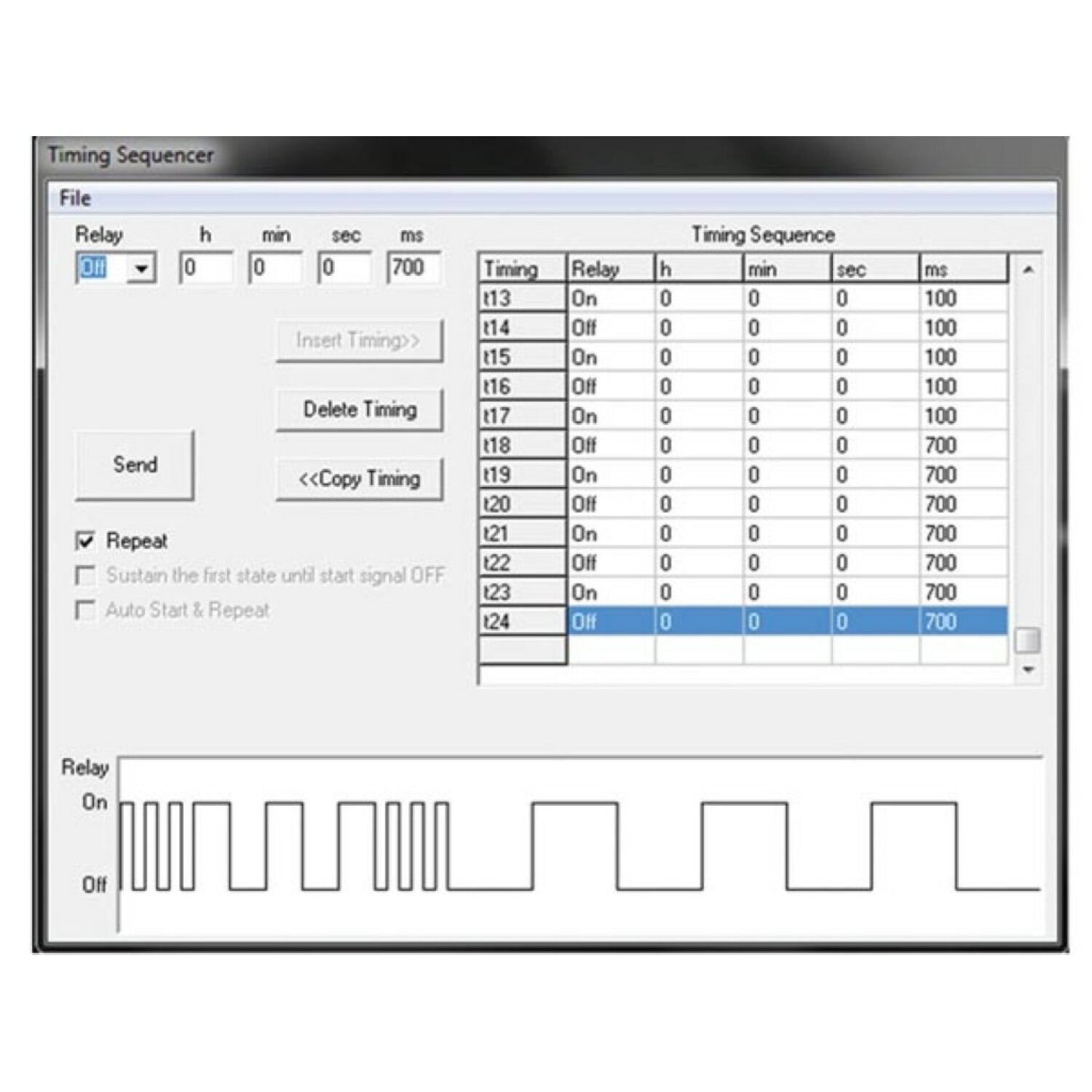

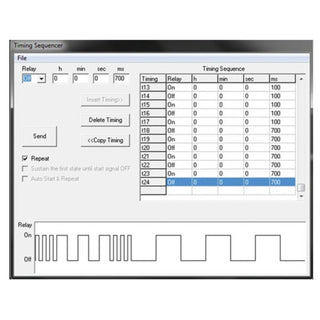

PC software for timer setup and timing adjustment
open source
Power supply: 12 VDC (100 mA max.)
Relay output: 8A / 250VAC max.
adjustable time min.: 100 ms
Max adjustable time: 1000 h (more than 41 days)
Dimensions: 68 x 56 x 20 mm (2.6" x 2.2" x 0.8")
