Velleman WPI403 Motor Drive Breakout Board for Microbit

No reviews
Original price $17.99 - Original price $17.99
Original price
$17.99
$17.99 - $17.99
Current price $17.99
Free shipping
This motor driver breakout board integrates the TB6612FNG chip and gives your micro:bit the ability to drive two channel DC motors. Each channel can output up to 1.2 A continuously with peak current up to... Read more

Overview

Velleman

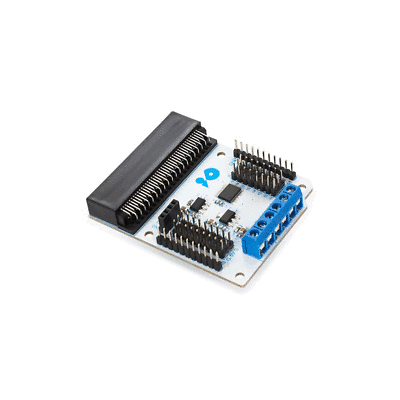

Velleman WPI403 Motor Drive Breakout Board for Microbit

This motor driver breakout board integrates the TB6612FNG chip and gives your micro:bit the ability to drive two channel DC motors. Each channel can output up to 1.2 A continuously with peak current up to 2 A. There are 4 motor control modes: Forward, reverse, brake and stop. The PWM supporting frequency is up to 100 kHz. The micro:bit pins are broken out into 3 pin headers for easy access and the integrated voltage regulator provides 3.3V and 5V power output. This breakout board is ideal if you want to start with robot projects!


Product Details

General Information
Manufacturer
Velleman
Part Number
WPI403
Product Type
DIY Kits & Projects
