About this item

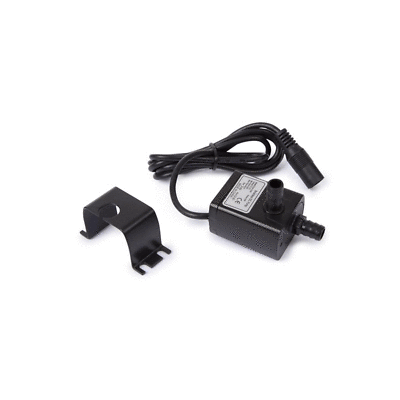

Velleman WPM421 Water Pump
- WPM421
- Velleman
- Development Tools
Downloads
No files available.
Description
Create your own plant watering system or build an automatic aquarium refill system by using your Arduino and this small yet powerful water pump.
working voltage range: 5 VDC to 12 VDC
max. load current: 0.35 A at 12 VDC
power consumption: 4.2 W at 12 VDC
max. horizontal flow rate: 240 L/H (63 gal/H )
max. static lift: 3 m ( 118" )
noise class: <40 dB
waterproof class: IP68
life span: > 30.000 hrs
external diameter of outlet: 8 mm ( 0.31" )
external diameter of inlet: 8 mm ( 0.31" )
driving mechanism: brushless DC motor
pump shell material: ABS
max. working temperature: 60 °C (140 °F)
conditions of use: can continuously work, submersible or land use (not self-priming)
dimensions: 51 x 34 x 42.7 mm ( 2 x 1.34 x 16.8" )
weight: 80 g (0.176 lbs )
