Velleman WPM600 Mini Analog Servo - 9 g

Original price $7.99 - Original price $7.99
Original price
$7.99
$7.99 - $7.99
Current price $7.99
Free shipping
dimensions: 21.5 x 12 x 22.7 mm ( 0.84 x 0.47 x 0.89" )voltage: 4.8 to 6 VDCweight: 9 g ( 0.02 lbs )speed: 0.09 sec. for 60° at 6 Vtorque: 1.4 kg.cm at 6... Read more

Overview

Brand img

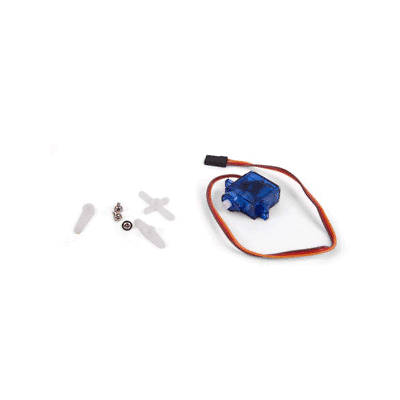

Velleman WPM600 Mini Analog Servo - 9 g

dimensions: 21.5 x 12 x 22.7 mm ( 0.84 x 0.47 x 0.89" )

voltage: 4.8 to 6 VDC

weight: 9 g ( 0.02 lbs )

speed: 0.09 sec. for 60° at 6 V

torque: 1.4 kg.cm at 6 V (19.44 oz-in)

working temperature: -15° C to 50 °C (5 to 122 °F)

connection type: 3 wires: brown (gnd) - red (+) - orange (signal)

connection diagram: http://arduino.cc/en/Tutorial/Sweep

rotation: 180°



Product Details

General Information
Manufacturer
Velleman
Part Number
WPM600
Product Type
Development Tools
