Klein Tools CL220 Digital Clamp Meter, AC Auto-Ranging 400 Amp with Temp
-----> product

Klein Tools CL220 Digital Clamp Meter, AC Auto-Ranging 400 Amp with Temp

by Klein Tools
$69.97 - $69.97
$69.97
$69.97 - $69.97
$69.97
Free shipping
Klein Tools CL220 Clamp Meter is an automatically ranging true root mean square (TRMS) digital clamp meter that measures AC current and NCVT via the clamp, AC/DC voltage, resistance and continuity via test-leads, and temperature... Read more

Overview

Brand img

Klein Tools CL220 Digital Clamp Meter, AC Auto-Ranging 400 Amp with Temp

Klein Tools CL220 Clamp Meter is an automatically ranging true root mean square (TRMS) digital clamp meter that measures AC current and NCVT via the clamp, AC/DC voltage, resistance and continuity via test-leads, and temperature via a thermocouple probe. Exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters loaded with innovative, time-saving features.


Clamp meter measures AC current and NCVT. Measure AC and DC voltage via test leads and measure temperature with the thermocouple

Easy to read backlit display

Test leads allow hand free operation

Product Details

General Information
Manufacturer
Klein Tools
Part Number
CL220
Product Type
Digital Clamp Meter
California Residents
Proposition 65 Warning
Specifications
Features
Measures AC current and NCVT via clamp and AC/DC voltage, resistance, and continuity via test-leads, and temperature with thermocouple
Non-contact voltage tester integrated into the clamp jaw
Backlit LCD for ease of viewing in low light
Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
Measures temperature with a K-Type thermocouple probe
Auto-Range, Hold, Data Hold, and Max value
Auto-power off after 10 minutes to conserve battery life
Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries
Low battery indicator and easily accessible battery compartment
Built to withstand a 6.6-Foot (2 m) drop
CAT III 600V, Class 2, Double insulation safety rating
Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
Function
TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, Continuity and Temperature
Display Type
2000 Count Backlit LCD
Miscellaneous

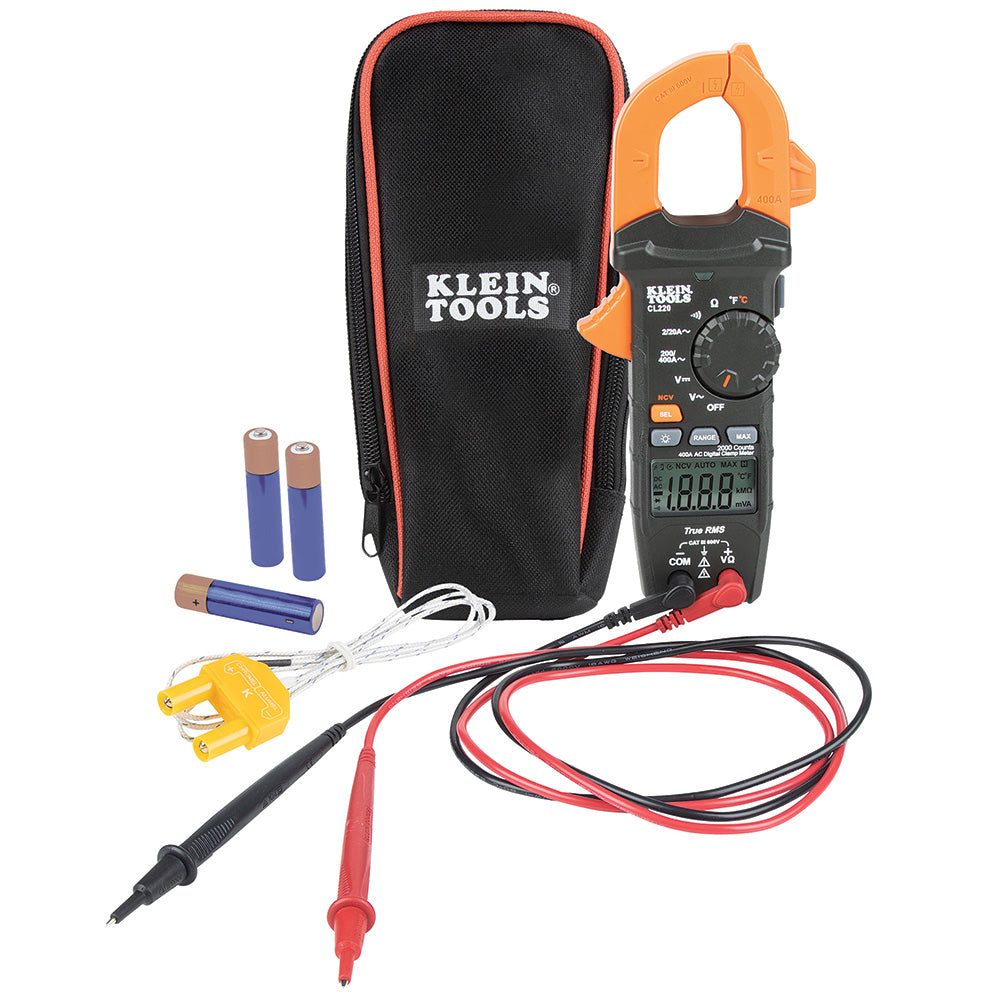

What's Included
Carrying Case, Instructions, Test Leads, Thermocouple, and Batteries
Batteries
3 x AAA
Item Weight
0.31185 kg
0.6875121254343111 lb
